Regency F2400M - Installation; Blower;Fan Installation and Wiring

Regency Freestanding Woodstove
18

 Remove the two screws from the top of the
fan housing.
 Slide the fan up into the rear heat shield.
 After aligning holes, secure the fan to the rear
heat shield using the two screws removed
earlier.




Read the Fan Operation instructions before
using.

Ground
Fan Fan
Ground
Green
Neutral
Live
White
Fan
Switch
Manual/
Auto
Switch
Black Black
High (Black)
Low (Red)
Black
Fan Thermodisc
(normally open)
120V AC
60 Hz

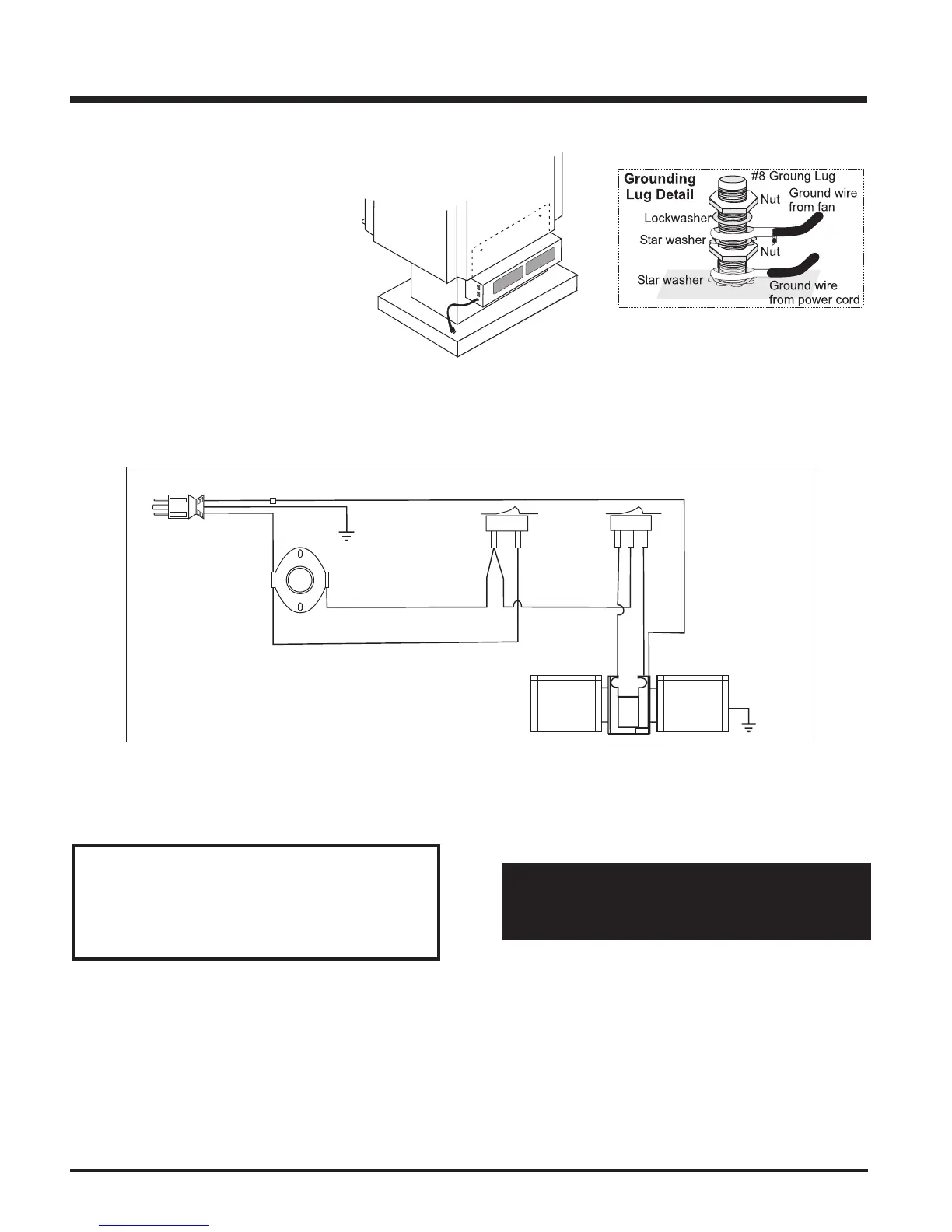

Blower/Fan Wiring Diagram




       
      



