Regency F3500 - Unit Dimensions; F3500 Stove Dimensions

F3500 Wood Stove | 5

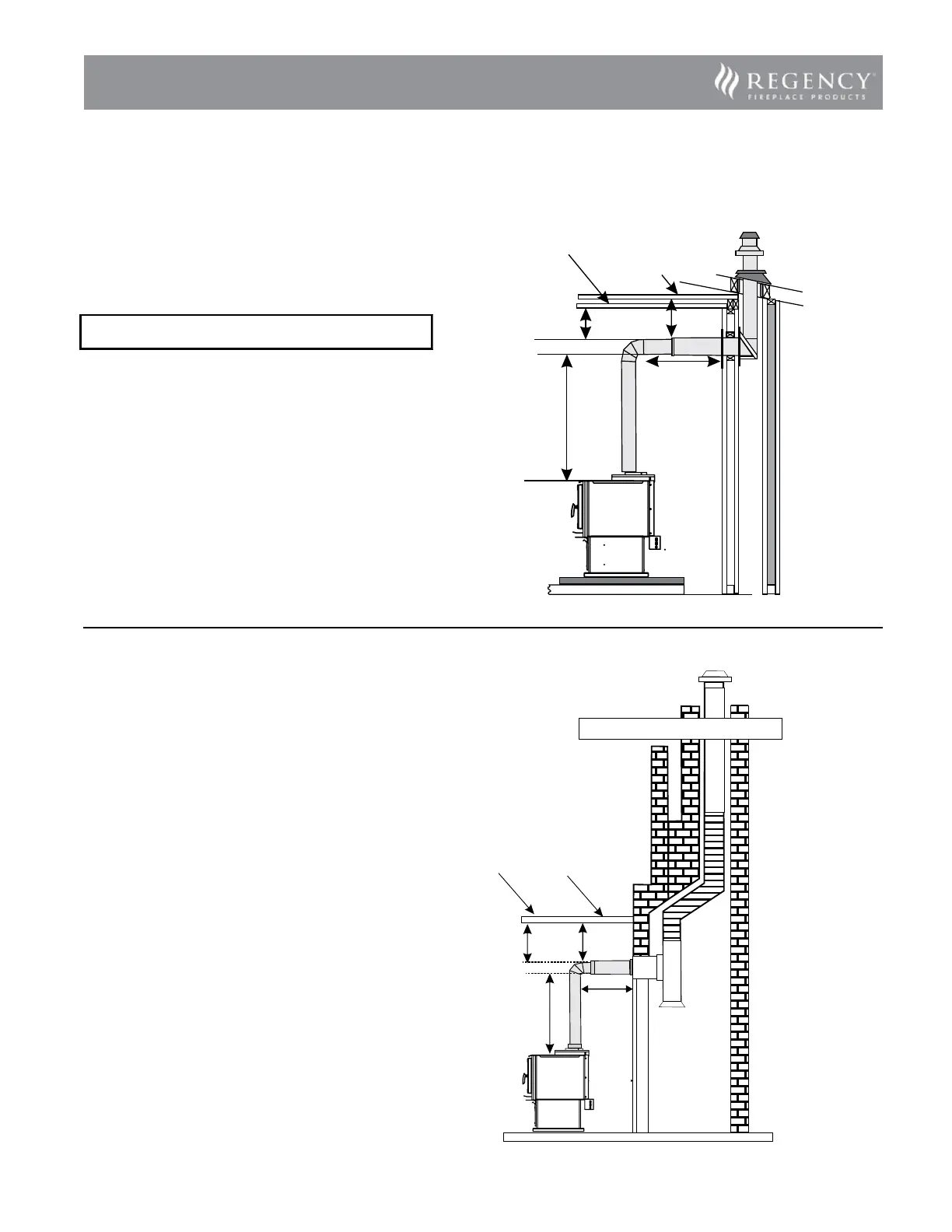

MASONRY FIREPLACE
There are listed kits available to connect a stove to a masonry
replace. The kit is an adapter that is installed at the location
of the replace damper. The existing damper may have to
be removed to allow installation.
Minimum vertical of 36" before any oset.
Horizontal Maximum of 36" with 1/4" rise per foot.
NOTE: Recommend using 2-45º instead of 90º to
improve draft and performance.
Max. 36"
Horizontal
Min. 36"
Vertical
Rise
6"
[152mm]
10"
[254mm]
18"
[457mm]
Single
Double
NOTE: Only a 6" and or 5.5" liner may be used when relining
the masonry chimney. Do not increase/decrease size of the
liner as this could result in poor performance, over ring
and or dangerous operating conditions which may void
your warranty.
Do not use or add a pipe damper as this will result in
poor performance, over ring and or dangerous operating
conditions which may void your warranty. This appliance
already has a bypass damper in place.
A minimum vertical rise of 36 inches is required from top of
stove collar prior to having any offset. It is recommended
that 45º elbows be used instead of a 90º elbow to improve
draft and performance. If not adhered to this, it will result
in poor performance overfiring and or dangerous operating
conditions which may void your warranty.
WALL EXIT CLEARANCE FACTORY BUILT CHIMNEY
When a metal prefabricated chimney is used, the manufacturer's installation instructions must be followed. You must also purchase and install the
ceiling support package or wall pass-through and "T" section package, restops (where needed), insulation shield, roof ashing, chimney cap, etc.
Maintain proper clearance to the structure as recommended by the manufacturer. The chimney must be the required height above the roof or other
obstructions for safety and proper draft operation.
Minimum vertical of 36" before any oset.
Horizontal Maximum of 36" with 1/4" rise per foot.
NOTE: Recommend using 2-45º instead of 90º to improve draft
and performance.
Note: Minimum ceiling height roof - 83" (2108mm)
6"
[152mm]
5"
[127mm]
Max. 36"
Horizontal
Min. 36"
Vertical
Rise
18"
[457mm]
Listed Double Wall
Single Wall
