F3500 Regency Freestanding Woodstove
19
INSTALLATION
6 1
34
5
2
1
BRICK INSTALLATION

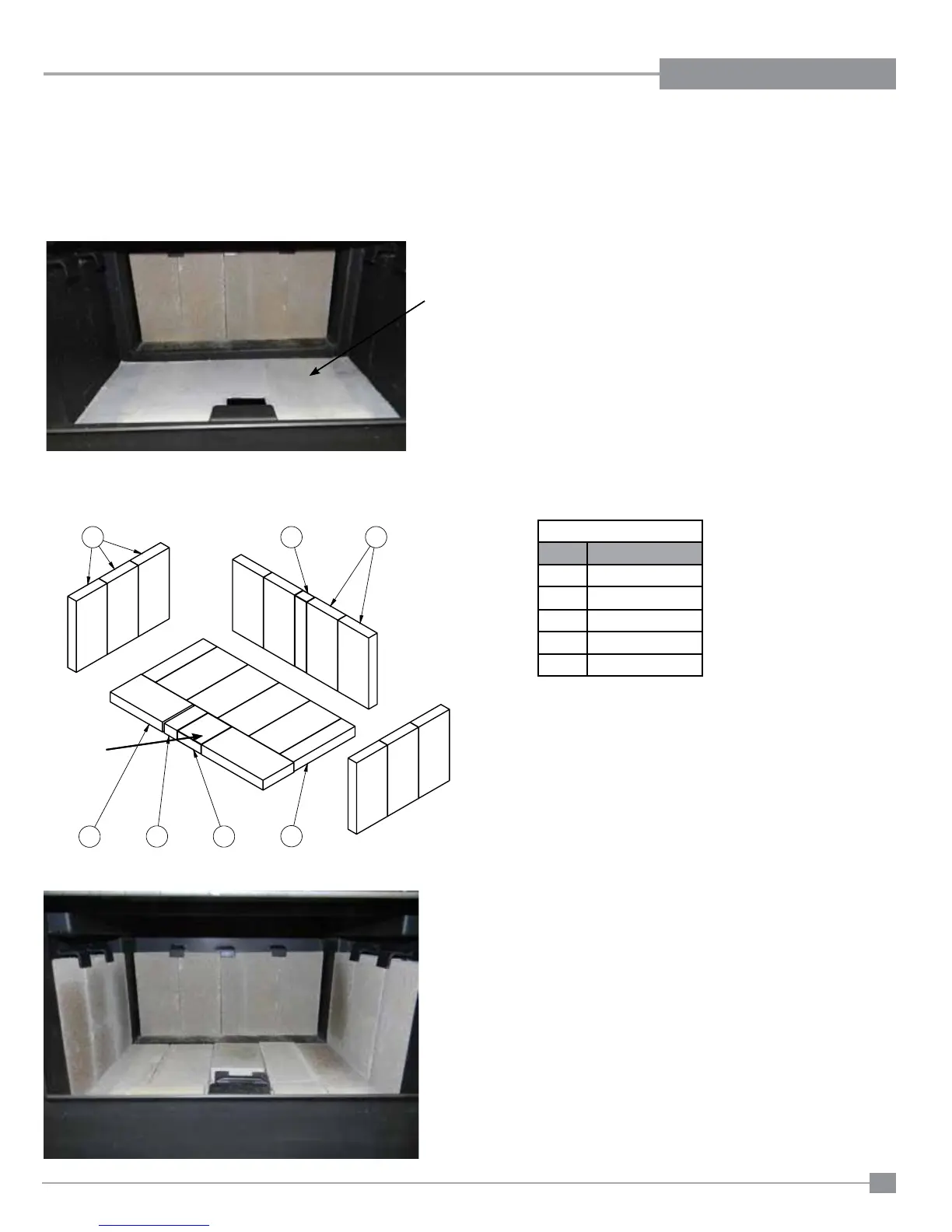

Firebrick is included to extend the life of your stove and radiate heat more evenly. Install all firebricks per the diagram below and place in their correct positions.
Do not use a grate.
1. Remove box of firebricks from inside unit.
2. Remove Lyotherm sheet from mailer tube and install on base of firebox as shown below.
NOTE: The "AD" brick covers the Ash Dump hole that is used when the Ash Drawer Kit is installed.
Lyotherm sheet
Final Install
3. Order of firebrick install:
a) Rear Firebrick
b) Firebox floor - install brick over Lyothern Sheet
c) Right and left side Firebricks
AD brick
Fire bricks
# Size
1 4-1/2" x 9"
2 2" x 9"
3 3-1/2" x 4-1/2"
4 1-3/4" x 4-1/2"
5 4-1/2" x 7-5/8"
To Next Page
