Regency Studio ES105 - Page 20

20

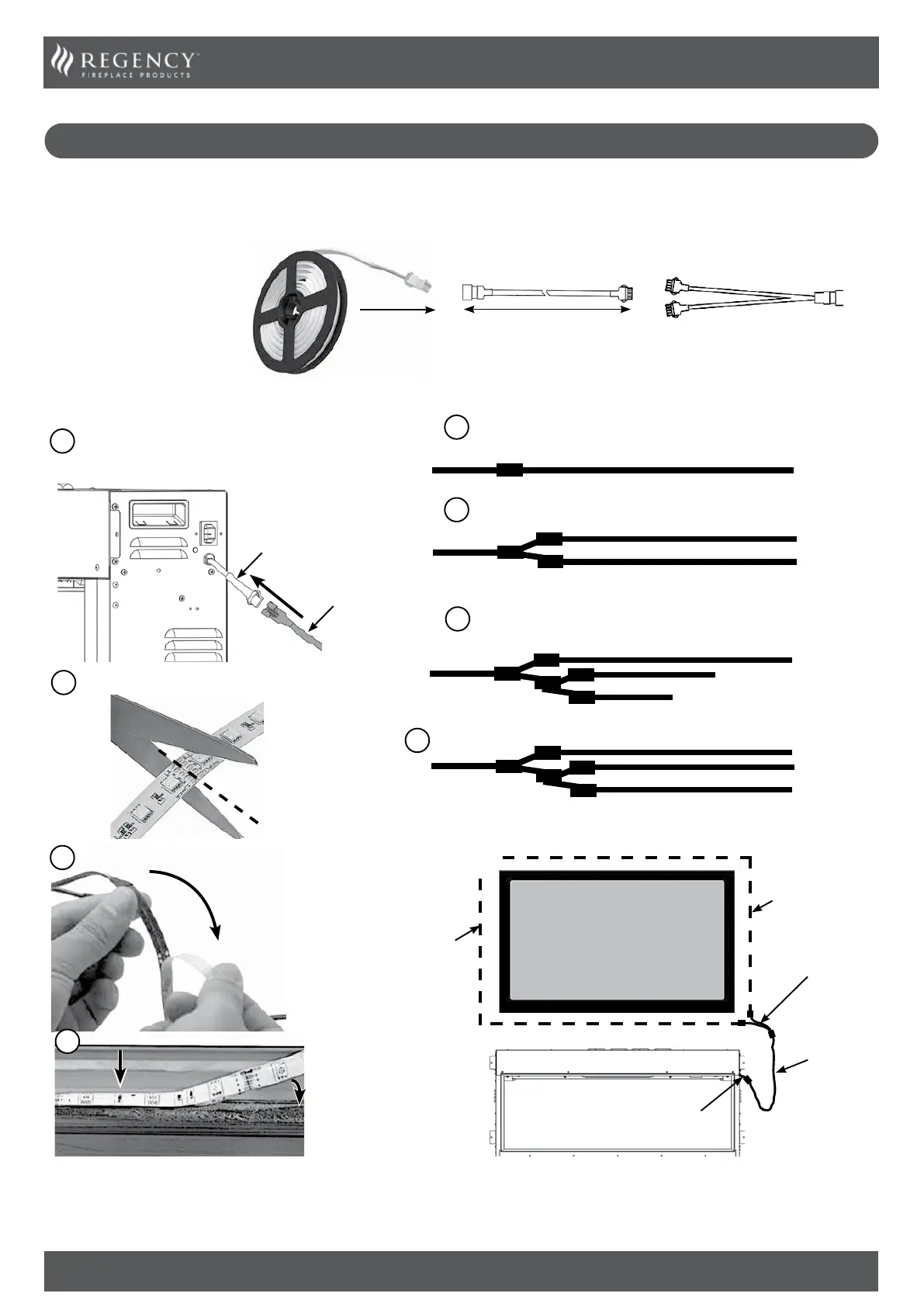

LED Mood Lighting Strip Kit
Installation Instructions
Part Code: 923-385
920-667 03.30.23
Contents
x1
10’/3m
LED Mood
Lighting
6.7’/2m
Wiring from appliance to
LED Mood Lighting
x1
Splitter
x1
Installation
1
4
3
2
Maximum Length: ≤20’/6m
Example
10’/3m
10’/3m
10’/3m
3.3
’/1m
6.7
’/2m
10’/3m
10’/3m
10’/3m
10’/3m
X
X
= 20’/6m
= 10
’/3m (<20’/6m)
= 20’/6m
>20’/6m
✔
✔
1
2
3
4
TV
The appliance can be enhanced by an optional LED Mood Lighting Strip. This comes with 10' (3 m) of LED mood lighting and can be operated using the
remote control provided with this appliance. A second LED mood kit strip may be obtained if more than 10' (3m) is required. This can be connected to the
end of the rst LED lighting strip or by using the splitter that is provided with the kit. A maximum of 3 kits is permitted.
Peel adhesive from back side of LED strip.
Cut LED strip to desired length. Ensure cut line is
as per below.
Locate pigtail on right hand side of appliance.
Connect other end of LED mood lighting kit to the
pigtail as shown below.
pigtail from
appliance
Maximum 20' (6m) with no splitter required.
If more than 10' (3m) is required a second 923-835 LED Mood Lighting
Strips would need to be purchased.
✔
✔
Maximum 20' (6m) using supplied splitter
2 x 923-835 LED Mood Lighting Strips required.
✔
✔
Maximum 20’(6m) with splitter from the original kit & additional splitter
from second LED mood lighting strip kit purchased.
3 x 923-835 LED Mood Lighting Strips required.
Not permitted.
Option
Option
Option
2 x 923-835 Mood Lighting strip kit & 1 x splitter and 1 x wiring
from appliance to LED mood lighting used. See below.
1 x LED Mood
Lighting Strip
1 x LED Mood
Lighting Strip
Splitter
Wiring from
appliance to
LED Mood
Lighting
Pigtail from
appliance
LED MOOD LIGHTING STRIP KIT INSTALLATION
