34
NO. DESCRIPTION
1 Heater Unit
2 Thermostat
3 Heater
4 Fan Motor
5
Plug Connector Incoming AC Supply:
120V 60Hz required
IEC 60320 "C13"
6 Flame Effect Motor
7 Optional Led Mood Lighting
8 PCB
9 Button Board
10 Receiver Board
11 Fuel Effect LED Board
12 Flame Effect LED Board
COLOUR CODES
RD RED
BU BLUE
YE YELLOW
WH WHITE
BK BLACK
BN BROWN
GNYE GREEN & YELLOW
12
11
10
9
8
1
4
3
2
6
7
5

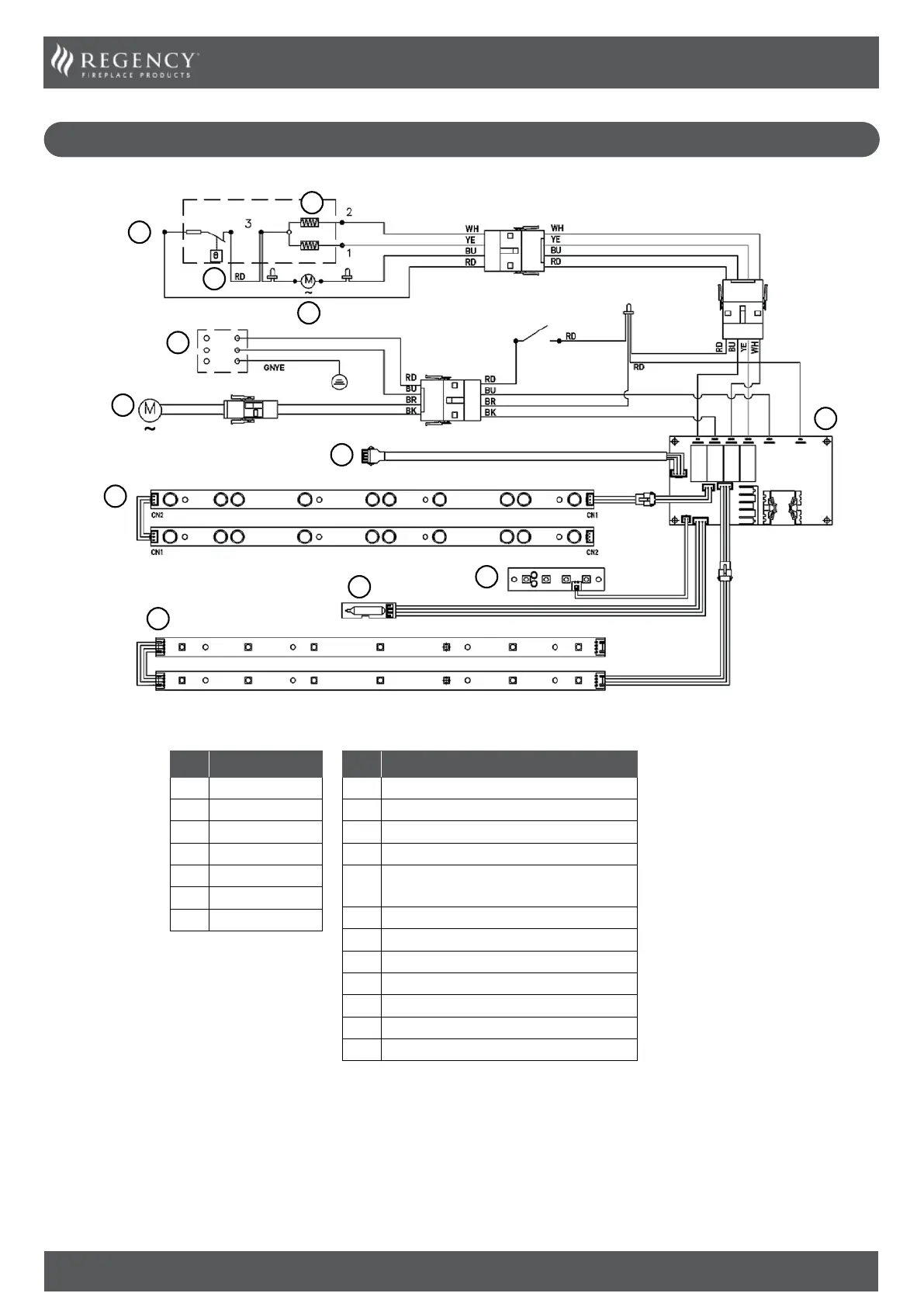

WIRING DIAGRAM
