Regin RCF-230D User Manual

RCF-230D
RCF-230D
Head Office Sweden
Phone: +46 31 720 02 00
Web: www.regin.se
Mail: info@regin.se
Sales Offices
France: +33 1 41 71 00 34
Germany: +49 30 77 99 40
Spain: +34 91 473 27 65
Hong Kong: +852 24 07 02 81
Singapore: +65 67 47 82 33

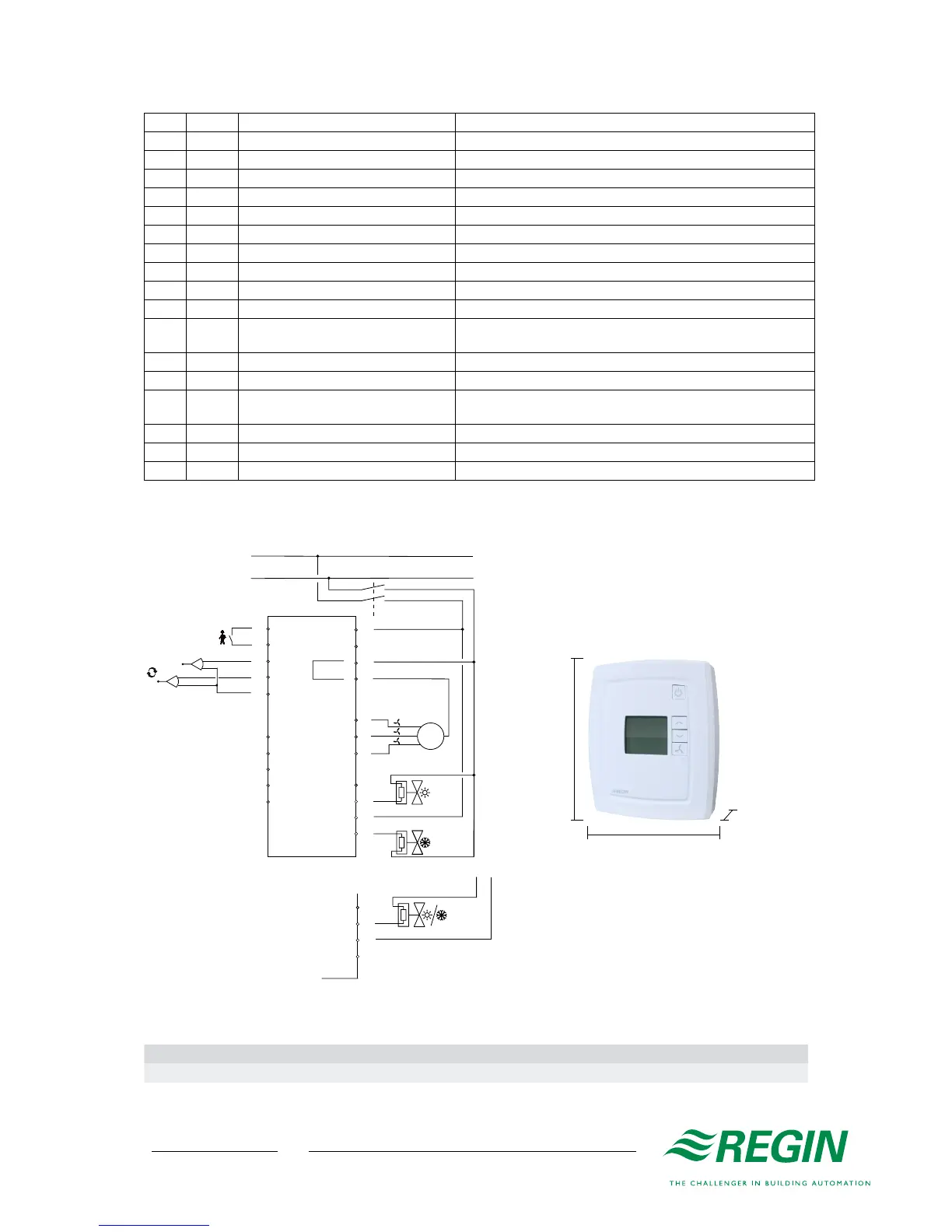

Wiring and dimensions
10 L 230 V AC Line Power supply
11 NC Not connected
12 N 230 V AC Neutral Power supply (internally connected to terminal 13)
13 N Fan-coil common / 230 V AC Neutral Common fan-coil connector (internally connected to terminal 12)
20 DO1 Fan-coil output 1 for fan control Relay, 230 V AC*, 3 A
21 DO2 Fan-coil output 2 for fan control Relay, 230 V AC*, 3 A
22 DO3 Fan-coil output 3 for fan control Relay, 230 V AC*, 3 A
30 NC Not connected
31 DO4 Digital output 4 for heating/cooling Digital output. 230 V AC, max. 300 mA. Max. 2 A during 20 ms.
32 CDO45 Common DO4 & 5 Common connection for digital outputs 4 and 5
33 DO5 Digital output 5 for cooling Digital output. 230 V AC, max. 300 mA. Max. 2 A during 20 ms.
40 DI Digital input Potential-free window contact or occupancy contact. Configurable
for NO/NC.
41 0 V Analogue ground
42 AI Analogue input External PT1000 instead of the internal NTC
43 UI Universal input Change-over input. Potential-free switch (configurable for NO/NC)
or PT1000.
44 0 V Analogue ground
50-52 NC Not connected
53-54 NC Reserved for future use
*The sum of the current through DO1-DO3 is protected by a fuse
30
31
32
33
DO4
CDO45
DO5
L
N
Automatic change-over
cooling/heating
°C
°C
+
-
40
41
42
43
20
21
22
10
11
12
13
DI
AGnd
AI
UI
L
N
N
DO3
30
31
32
33
DO4
CDO45
DO5
44 AGnd
50
51
52
53
54
DO1
DO2
III
II
I
M
230 V AC
N
L
Product documentation
Document Type
RCF-230D_inst_en_sv Instruction for RCF-230D
The product documentation is available for download from Regin’s website, www.regin.se.
120 mm
29 mm
102 mm

Regin RCF-230D Specifications

General

Brand	Regin
Model	RCF-230D
Category	Thermostat
Language	English
