7.5.13 Overview of Base units
The next screen shows the present state of all existing NEA SMART
2.0 Base units (in this example only the master) with
- connected R-Module
- paired outside sensor
- predefined functions (here connected pump, boiler, chiller)

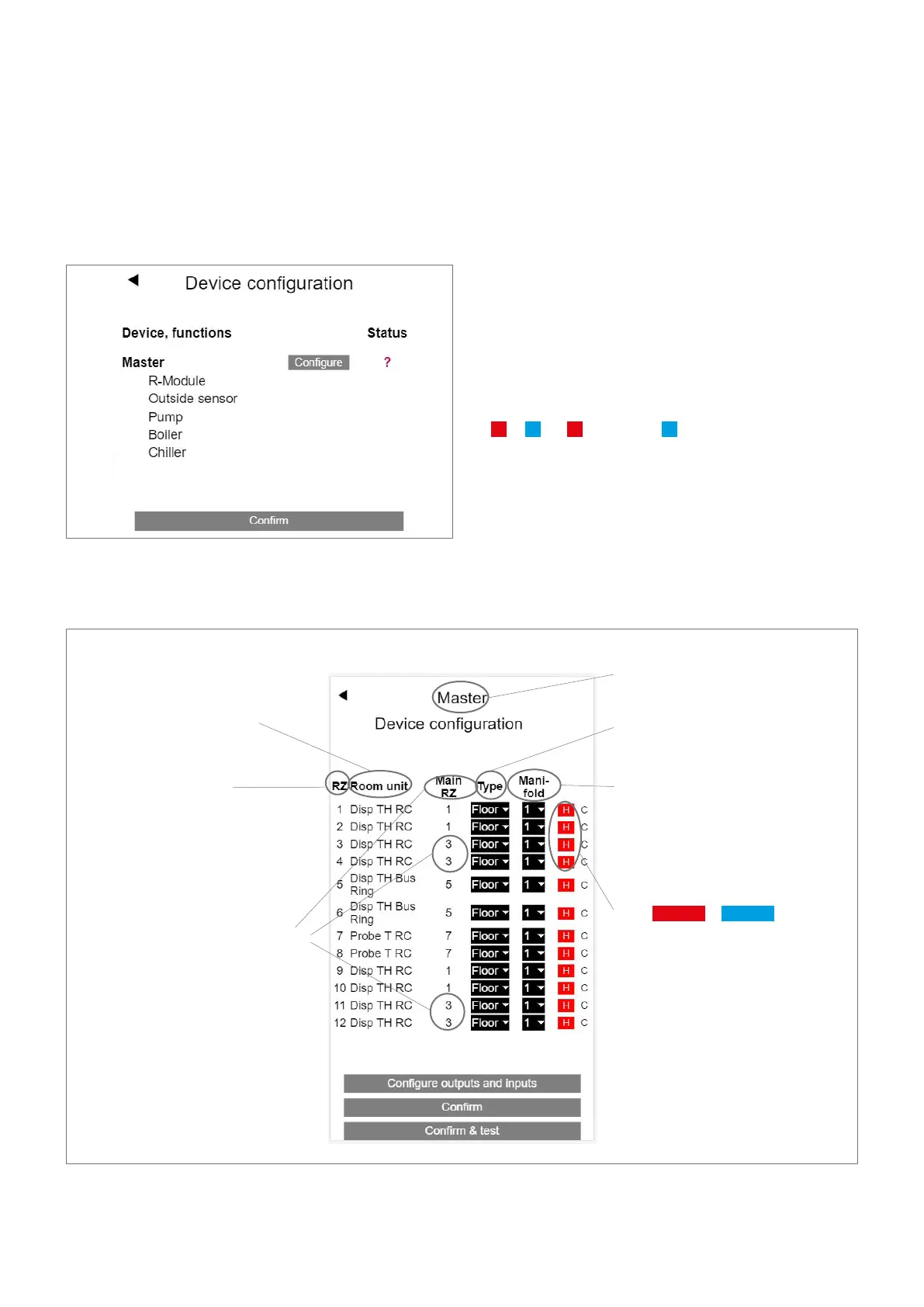

Fig. 7-23 Webpage: Device configuration
The configuration of the base is not been done, sym bolized by “Status”.
7.5.14 Definition of room operating modes
When you press “configure”, the Master (or Slave) device configurati-
on page appears (see picture below).
You can
- Check which type of room unit has been paired to which channel(s) (RZ)
(e.g. Disp TH RC is a wireless room unit with display and tempera-
ture & humidity sensor)
- See the main RZ – the 1st channel to which the room unit has been
paired (this number will be used to identify the rooms: the preliminary
names are Master-1, Master-3, where 1 and 3 are the Main RZ)
- Select the type of system (floor / wall / ceiling)
- Select the manifold which supplies the heating / cooling system of
this channel
- Fix the operating mode of this channel:
([
H
] [
C
], ([
H
] [ C ], ([ H ] [
C
])
See the settings according our example in picture on next page.
Fig. 7-24 Webpage: Overview Device configuration
Type of NEA SMART 2.0 Room unit
connected to this channel
Room Zone: Channel number
Main RZ is the 1st channel number to which
this room unit is connected
Function of NEA SMART 2.0 Base (Master,
Slave...)
Used heating / cooling system of channel
Manifold which supplies the haeting / cooling
system of this channel
Enable
HEATING
or
COOLING
or both
