RAUTOOL M1
USING THE TOOL

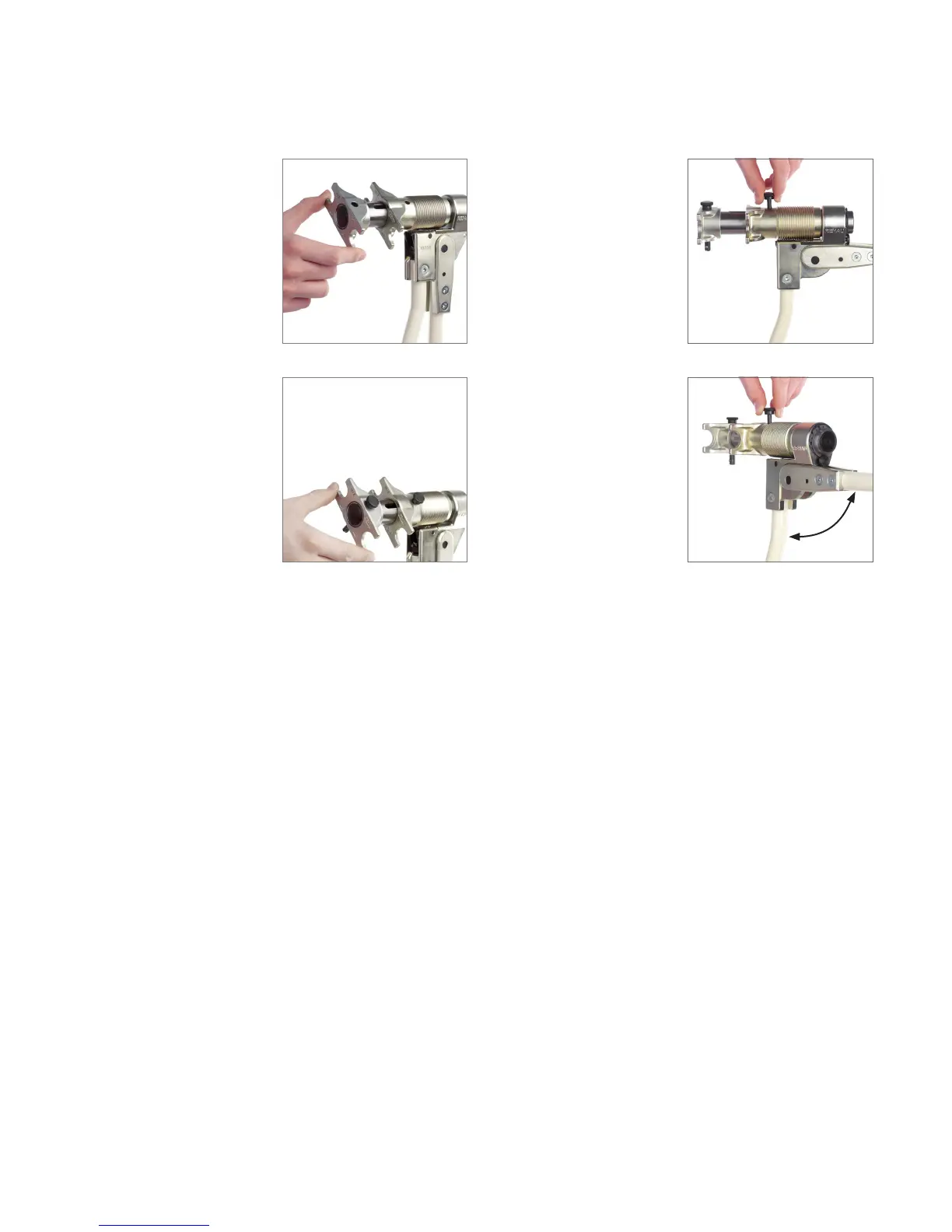

1. When tting clamping jaws,
always push the long clamping
jaw on the tool cylinder rst,
followed by the short clamping
jaw.
3. The clamping jaws are brought
into the correct position by turn-
ing the tool cylinder.
2. Insert the short pin into the
long clamping jaw and the long
pin into the short clamping jaw.
Note: To ensure that the double
clamping jaws (for example size
25 mm) are aligned identically,
always insert the pins all the way.
4. Exchange of clamping jaws
should always be carried out in
the starting position (maximum
deection of the tool lever).
