THREADING YOUR MACHINE
Wrong threading may cause shipped stitches,
breaking threads, or other problems.
Try to master the correct threading before
moving on to test sewing.
Threading must be carried out in the sequence
of Lower Looper – Upper Looper – Needle.
Open the front cover and the working table.
Raise needle to its highest point by turning hand
wheel towards you, and raise the presser foot.
Before re-threading lower looper, remove thread
from needle eye first, then re-thread the lower
looper. This will prevent tangling.
NOTE: Thread tension is released when the
presser foot is lifted up.

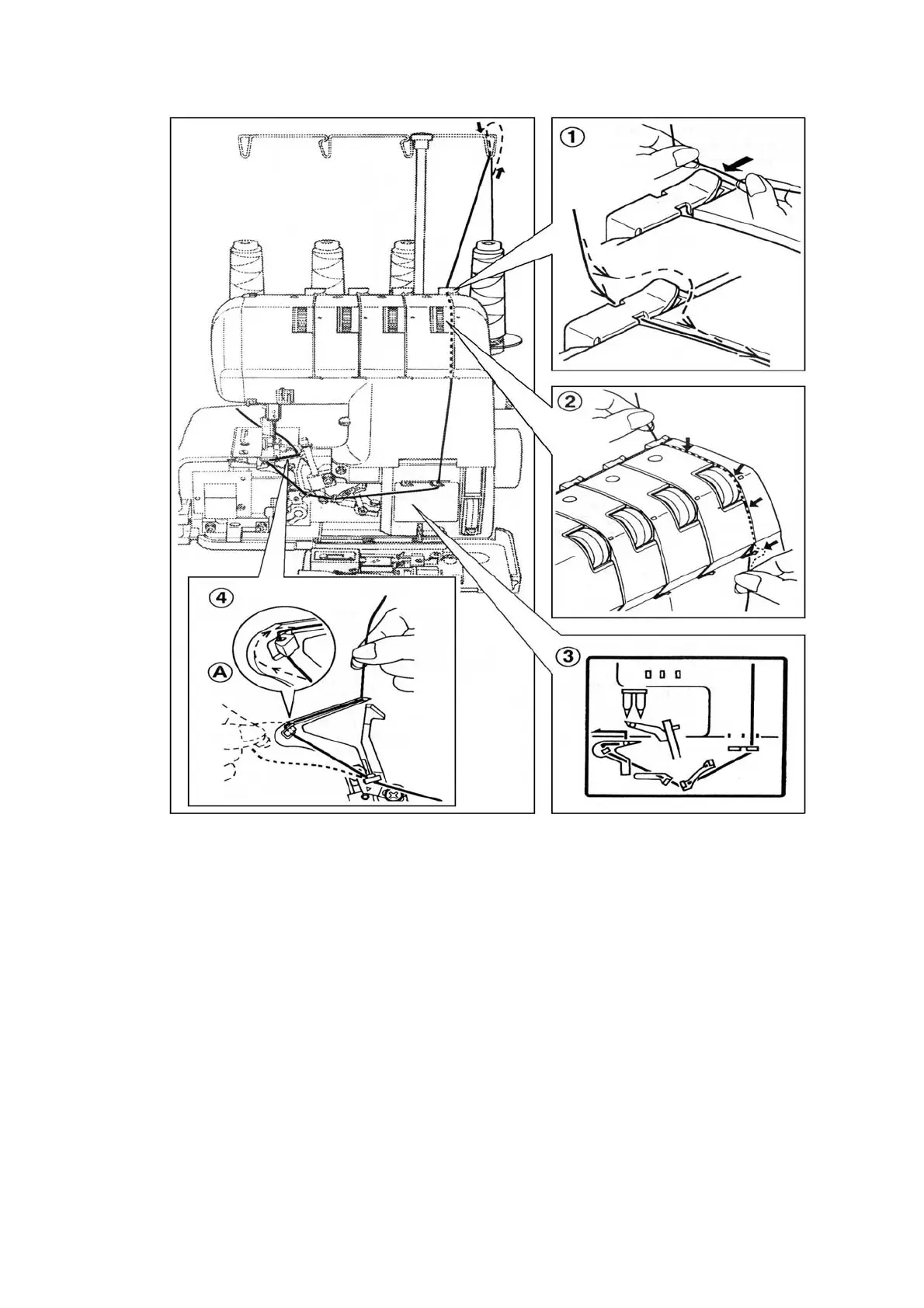

THREADING LOWER LOOPER
1. Feed the thread through the thread
guide as illustrated.
2. Pull the lower thread through tension
slot. Holding the thread with your left
hand, pull down with right hand firmly.
3. Draw the thread through thread guide
as illustrated.
4. Pass the thread through lower looper
eye, and hook it around part A as
indicated by the arrow. Leave about
4” (10cm) extra thread.
