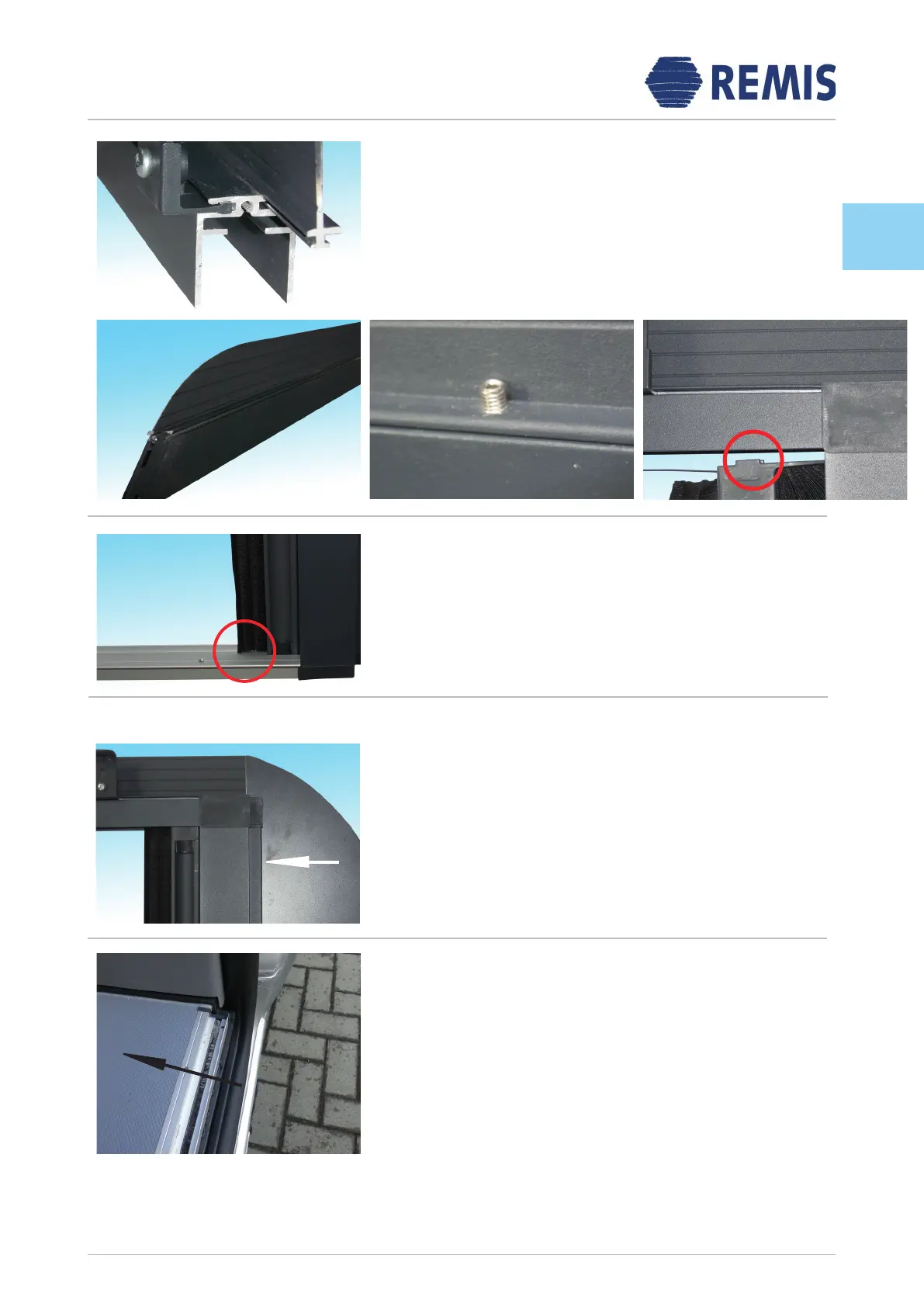

9/20
A4
A5a A5b
A6
A7
A8
A4+A5+A6:
Push the xation bracket into the provided notch as shown in picture A5
before screwing the frame corner with the guiding. Make sure that the
brush is placed in the pinhole panel notch of the frame corner and that
the string is guided above the head piece (see picture A7).
Use the 2.9x19mm cheeseheaded screw.
A7:
Screw the bottom frame corner onto the coffer prole by using cheese
headed screw 2.9x19mm. Place the handle bar so that the bottom head
piece of the handle bar gears into the oor prole and the top headpiece
into the upper guiding. Make sure that the string is guided above the
head piece.
A8:
Press the shutter, round part up, into the coffer notch and xate it with
some adhesive tape, if necessary. At the top, the shutter needs to be
positioned in line with the frame corner.
Step 3: (Installing the insect protection door)
A9
A9:
First tread has to be mount. Afterwards adjust the oor raul. The end
cap should press itself against the side of the tread.
US/GB
