2 Airplane and Systems Descriptions
Airplane and Systems Descriptions 2 - 5
2.7 Basic Instrumentation
The REMOS GX is available in the cockpit configurations
“Explorer”, “Aviator I”, “Aviator II”. For all cockpit variants the
compass is neatly arranged on the top of the panel, because of
electro-magnetic reasons. If the aircraft equipped with an
adjustable pitch propeller, an electronic controller is integrated
into the left cockpit panel always (not for ASTM aircraft certified
in USA).
The basic equipment of your REMOS GX consists of the
following instruments: ASI, VSI, Altimeter, Slip Indicator and an
analog Tachometer. Optional it is possible to equip the aircraft
with an electric artificial Horizon, Directional Gyro, Turn and
Bank Indicator. Please refer to the appropriate manuals for
detailed information.

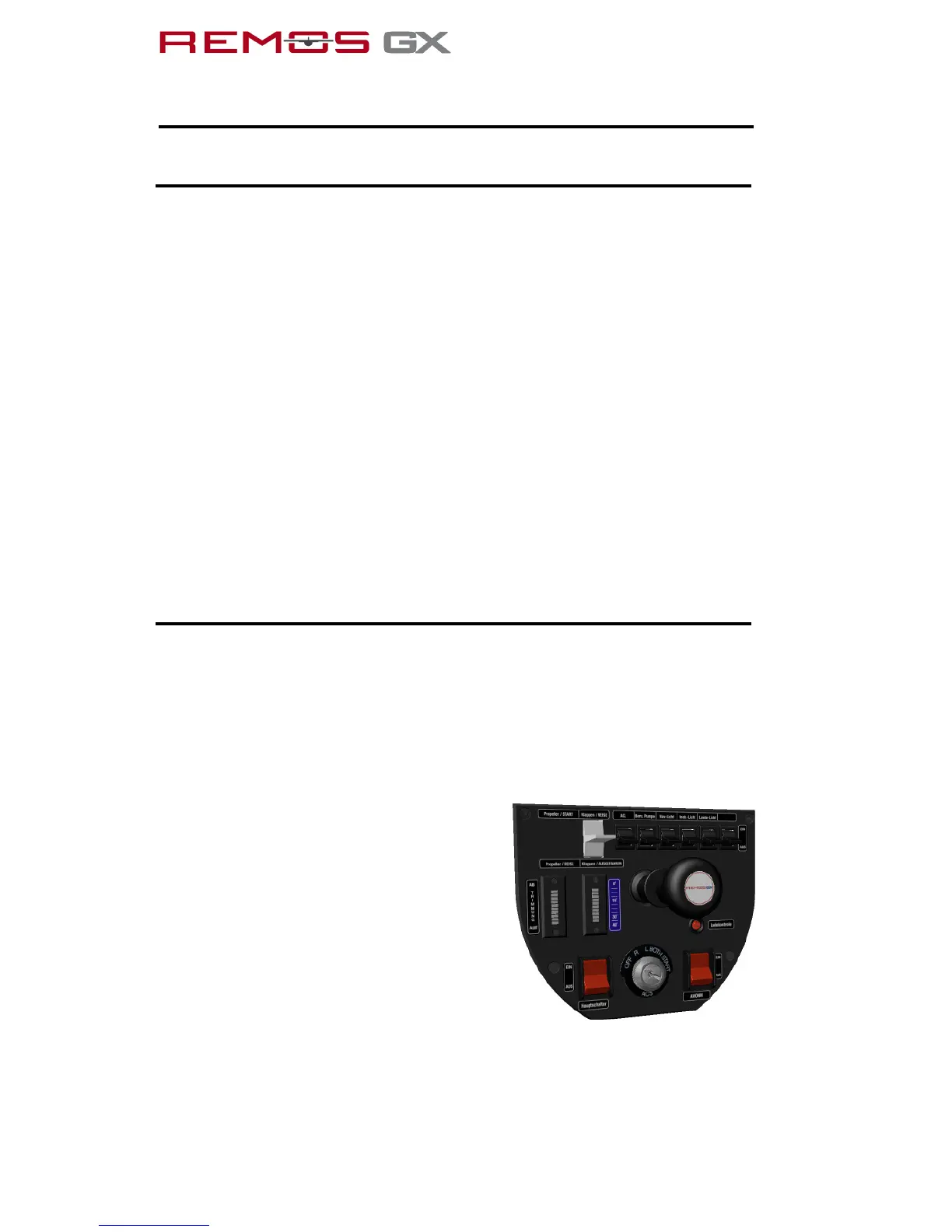

2.8 Control Panel
Most of the major controls and switches to operate the aircraft
are combined on the central control panel. All switches are
labeled definitely.
The following functions are contained:
• Flap control lever (white)
• Anti Collision Light (ACL)
• Electric fuel pump
• Navigation lights (wing & tail)
• Instrument lighting
• Landing light
• Autopilot engage (optional)
• Trim position indicator (LED, left)
• Flap position indicator (LED, right)
• Throttle control with friction lock
• Charge tell tale for electric generator
• Master- and Avionic switches
• Ignition lock / magneto check
