2 Airplane and Systems Descriptions
Airplane and Systems Descriptions 2 - 6

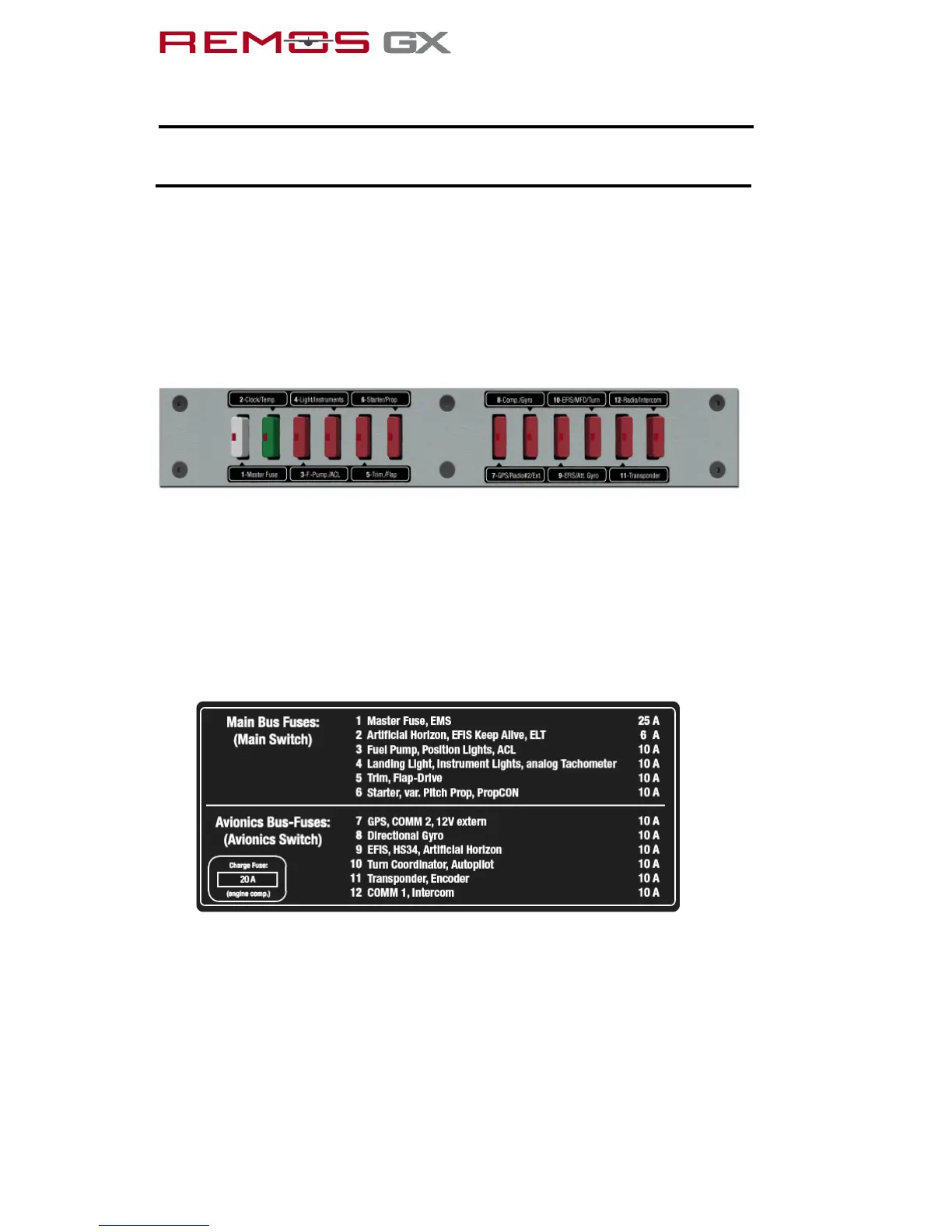

2.9 Electric Fuses
The electrical system of the REMOS GX consists of a Master-
Bus system, which allows installation of additional equipment
very easily. The Master-Bus is separated into Master and
Avionics circuits, each populated by 6 automatic circuit
breakers. An additional charge fuse is located in front of the
firewall, beneath the battery bracket.
All the circuit breakers are labeled, additionally the decal to the
right is applied inside the cockpit, to give more detailed
information.
In kind of a defect, the circuit breakers may also be replaced by
standard automotive fuses.
