2 Airplane and Systems Descriptions
Airplane and Systems Descriptions 2 - 9
2.12 Center Console

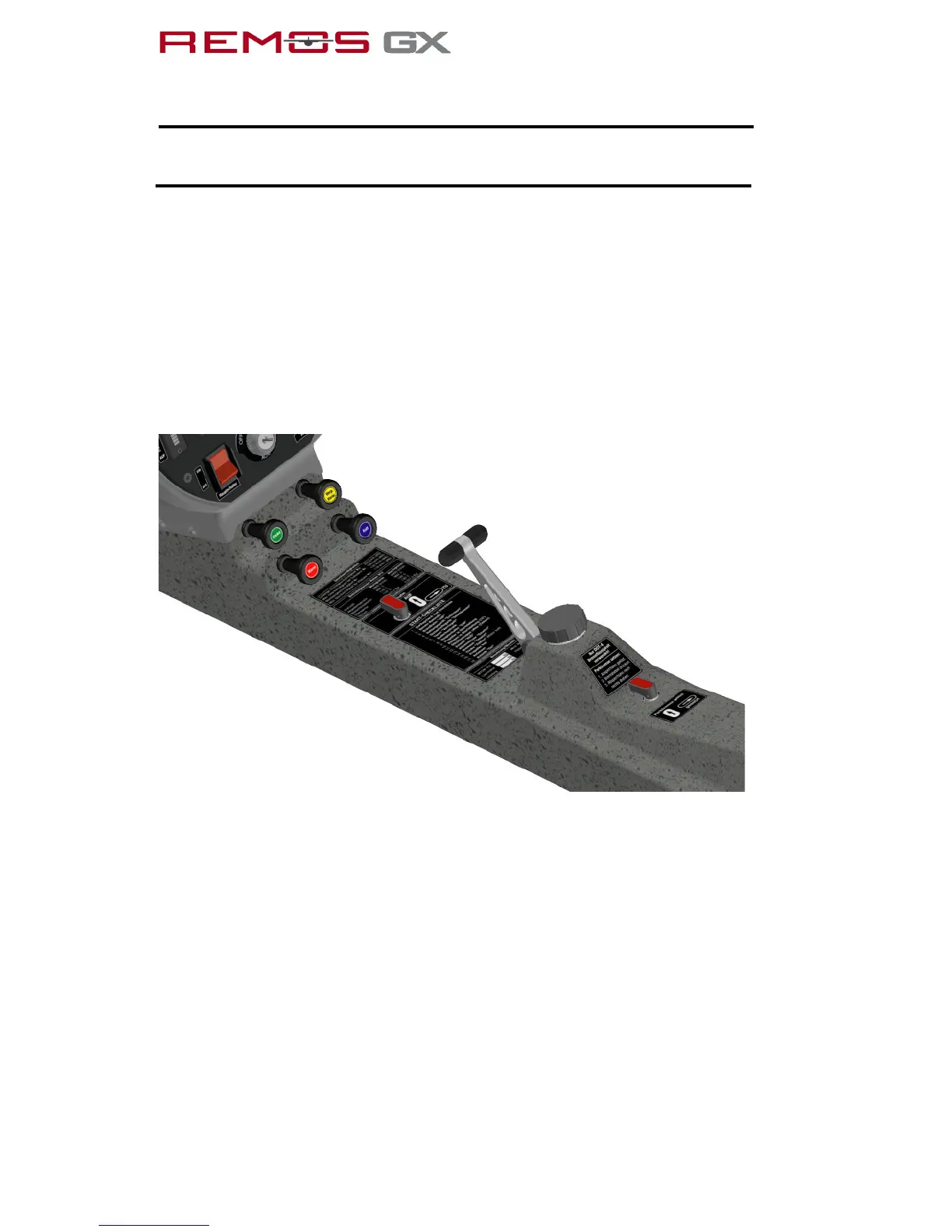

The following controls are located on the center console:
All controls are labeled.
On the center console you will find
all important decals, which posts the
limits required for a safe operation of
the aircraft. In addition a start-up checklist
is provided.
• Choke – green
• Carburetor heat – yellow
• Fresh air control – blue
• Cabin heat – red
• Fuel valve
• Brake lever including fluid reservoir
• Parking brake valve
