Afficheurs et indicateurs (LJL - Renault)
DISPLAYS AND INDICATORS (4/7)

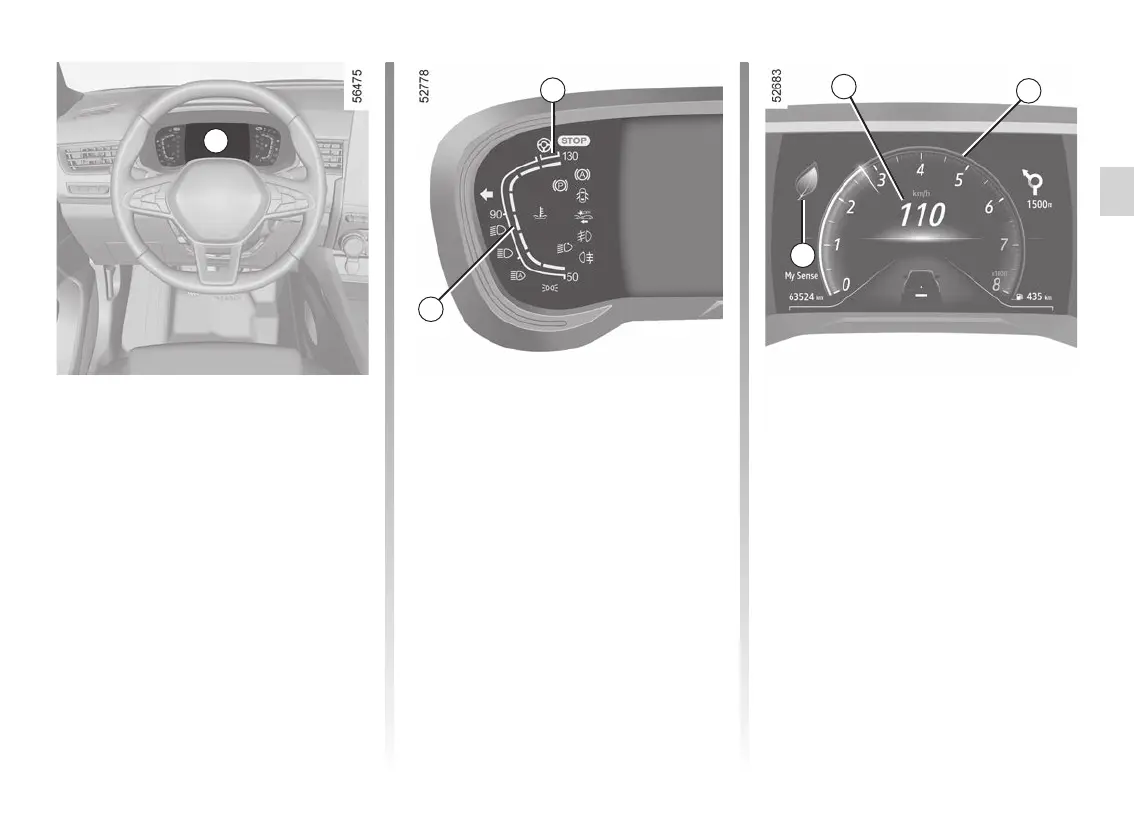

Instrument panel B
It lights up when the ignition is switched
on. In some cases, the appearance of a
warning light is accompanied by a mes-
sage.
Depending on the vehicle, you can cus-
tomise your instrument panel with the
contents and colours of your choice.
For vehicles fitted with a multimedia
screen, refer to the multimedia instruc-
tions.
For vehicles not fitted with a navigation
system ➥ 1.21
Coolant temperature indicator 16
In normal use, the indicator 16 should
be before area 17. Under “intensive”
operating conditions, the needle may
approach this zone. This is not serious
unless the warning light
® comes
on accompanied by a message on the
instrument panel and a beep.
Speedometer 18
Depending on the style selected, the
display varies.
Overspeed buzzer
Depending on the vehicle and coun-
try, the
warning light is dis-
played and a beep sounds. This beep
sounds as soon as the vehicle is trav-
elling at over 75 mph (120 km/h). This
warning light remains lit for as long as
the vehicle is travelling at over 74 mph
(120 km/h).
Rev counter 19
(graduations x 1000)
This is displayed differently according
to how the instrument panel is custom-
ised. Depending on the style selected,
the display varies.
Driving style indicator 20 ➥ 2.19
B
16
17
18
19
20
