5.3
TOOL KIT (2/2)/TRIM

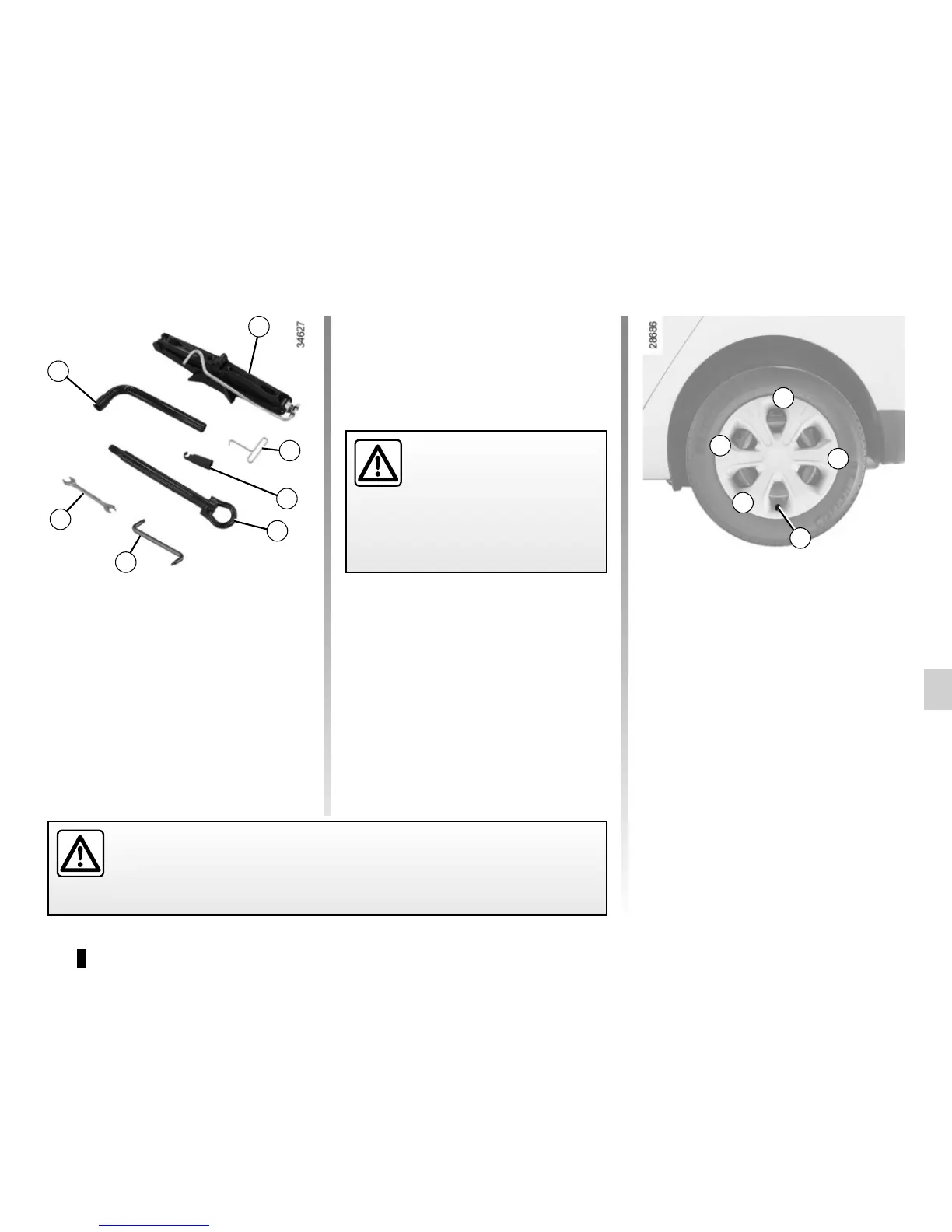

Tools
The composition of the tool kit varies
according to the vehicle.
Rear lights key 4
Used to unscrew the rear lights.
Front headlight key 5
Used to unscrew the headlights.
Wheelbrace 6
Never leave tools unsecured in the vehicle: there is a risk that they may
be thrown about during braking. After use, check that all the tools are
correctly clipped into the tool kit, then position it correctly in its housing:
there is a risk of injury.
Jack 7
When replacing the jack, fold it cor-
rectly and position the wheelbrace cor-
rectly before replacing it in its position.
7
6
8
9
10
4
The jack is designed for
wheel changing purposes
only. Under no circum-
stances should it be used
for carrying out repairs underneath
the vehicle or to gain access to the
underside of the vehicle.
Hubcap tool 8
This tool is used to remove the wheel
trims.
Wheel bolt guide 9
To finish loosening or starting to tighten
the wheel bolts.
Tow eye 10
Refer to the information on “Towing” in
Section 5.
Wheel trim
Remove it using the hubcap tool 8 by
connecting the hook in the recess pro-
vided next to the valve 11 (to attach the
metal clip).
To refit the wheel trim, align it with
valve 11. Push the retaining hooks in
fully, starting with side C near the valve,
followed by D and E, finishing at F op-
posite the valve.
NB: if you are using anti-theft bolts,
refer to the information on “Changing a
wheel”.
11
C
D
E
F
5
