VALUES AND SETTINGS
Procedure for tensioning the timing belt
07
F9Q engine

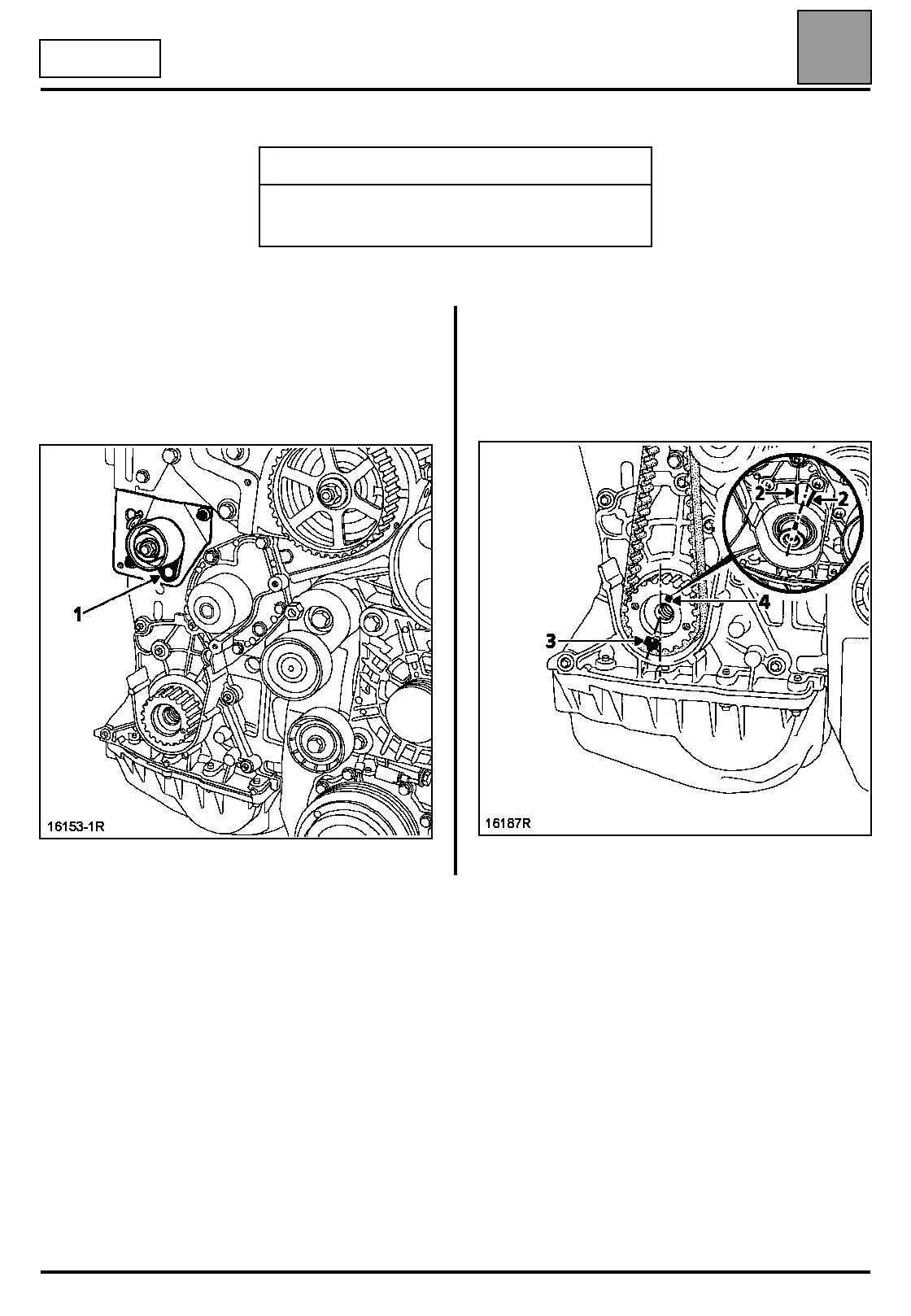

TENSIONING PROCEDURE
Engine cold (ambient temperature)
Check that the tensioner is securely positioned on the
pin (1).
Check that pin Mot. 1054 is in place.
The crankshaft groove (4) should be located at the
centre of the two ribs (2) on the crankshaft closure
cover, mark (3) on the crankshaft timing sprocket
should be offset one tooth to the left of the vertical axis
of the engine.
SPECIAL TOOLING REQUIRED
Mot. 1505 Tool for checking belt tension
Mot. 1543 Tool for pretensioning a belt
16153-1R
16187R
07-6
