VALUES AND SETTINGS
Procedure for tensioning the timing belt
07
07-30
F4P engine

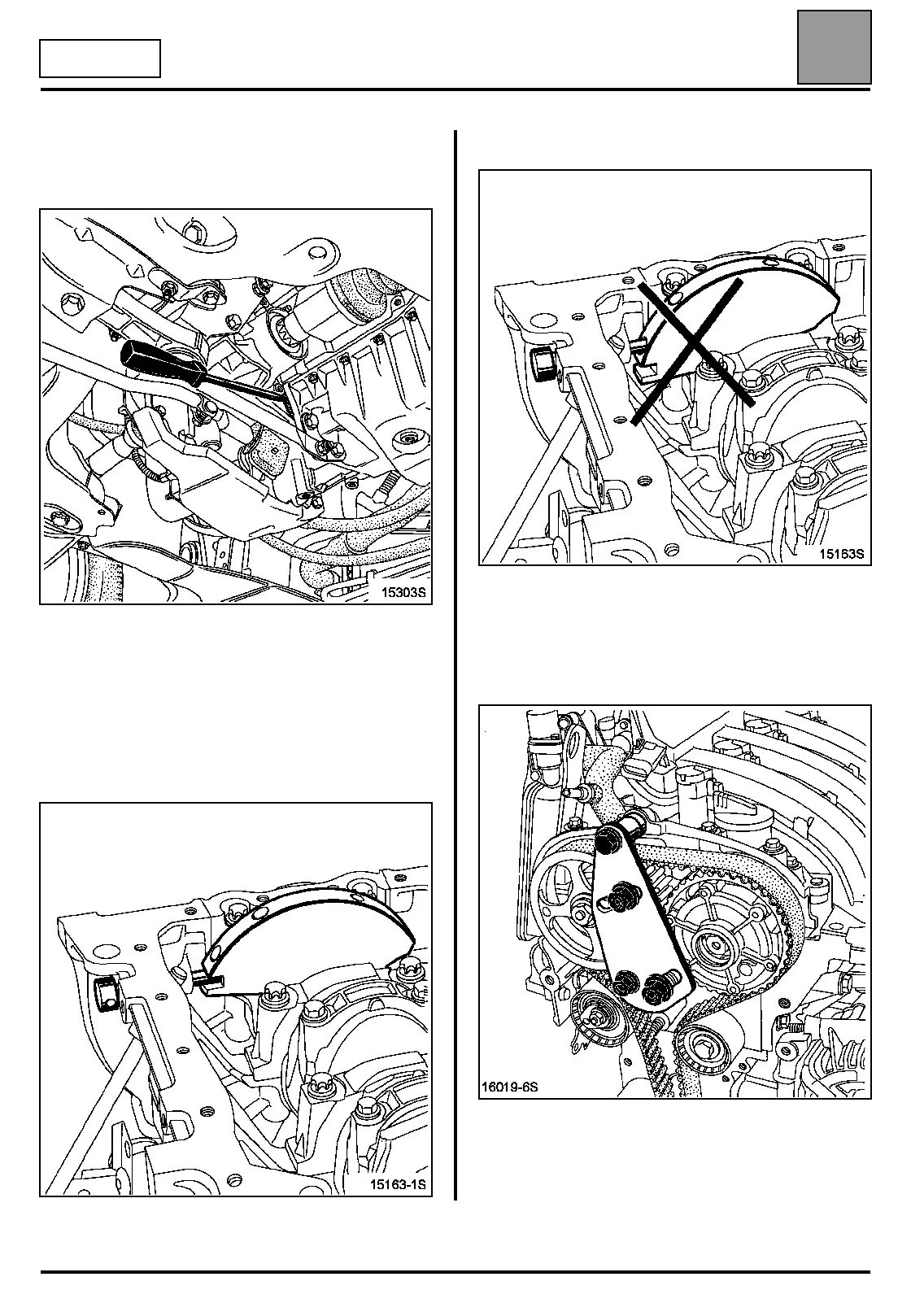

Lock the flywheel using a large screwdriver, then turn
the bolt of the crankshaft accessories pulley though an
angle of 115˚ ± 15˚.
Pin the crankshaft using the marks made previously
between the camshaft pulleys and the camshaft
bearing cap housing. These marks must be aligned,
which will ensure that the pin is in the pinning hole and
not in the crankshaft balancing hole.
Correct position
Incorrect position
Fit the camshaft pulley locking tool Mot. 1509 fitted
with the additional tool Mot. 1509-01.
Follow the same procedure as when removing.
