VALUES AND SETTINGS
Procedure for tensioning the timing belt
07
07-32
F4P engine

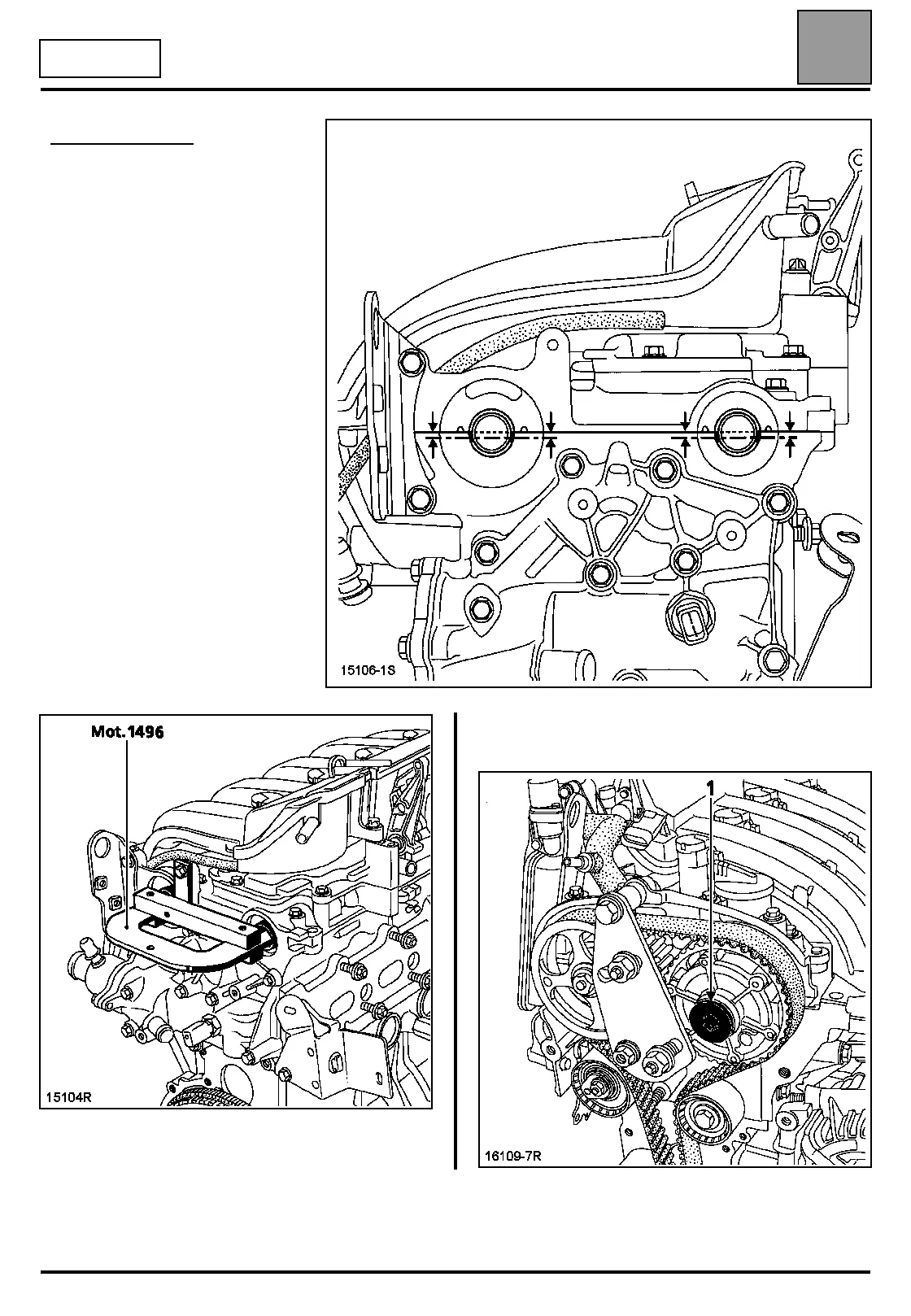

Refit the blanking plate (1) (fitted with a new seal) of
the dephaser tightening it to a torque of 2.5 daNm.
Checking the timing
Ensure that the tension wheel marks
are in the correct position before
checking the timing.
Fit the Top Dead Centre pin (check
that the marks made previously on
the camshaft pulleys are aligned).
Fit (without forcing) tool Mot. 1496 for
setting the camshafts (the camshaft
grooves must be horizontal and offset
towards the bottom). The timing
setting and tensioning procedure
must be repeated if the tool does not
engage.
