VALUES AND SETTINGS
Procedure for tensioning the timing belt
07
07-40
F4P engine

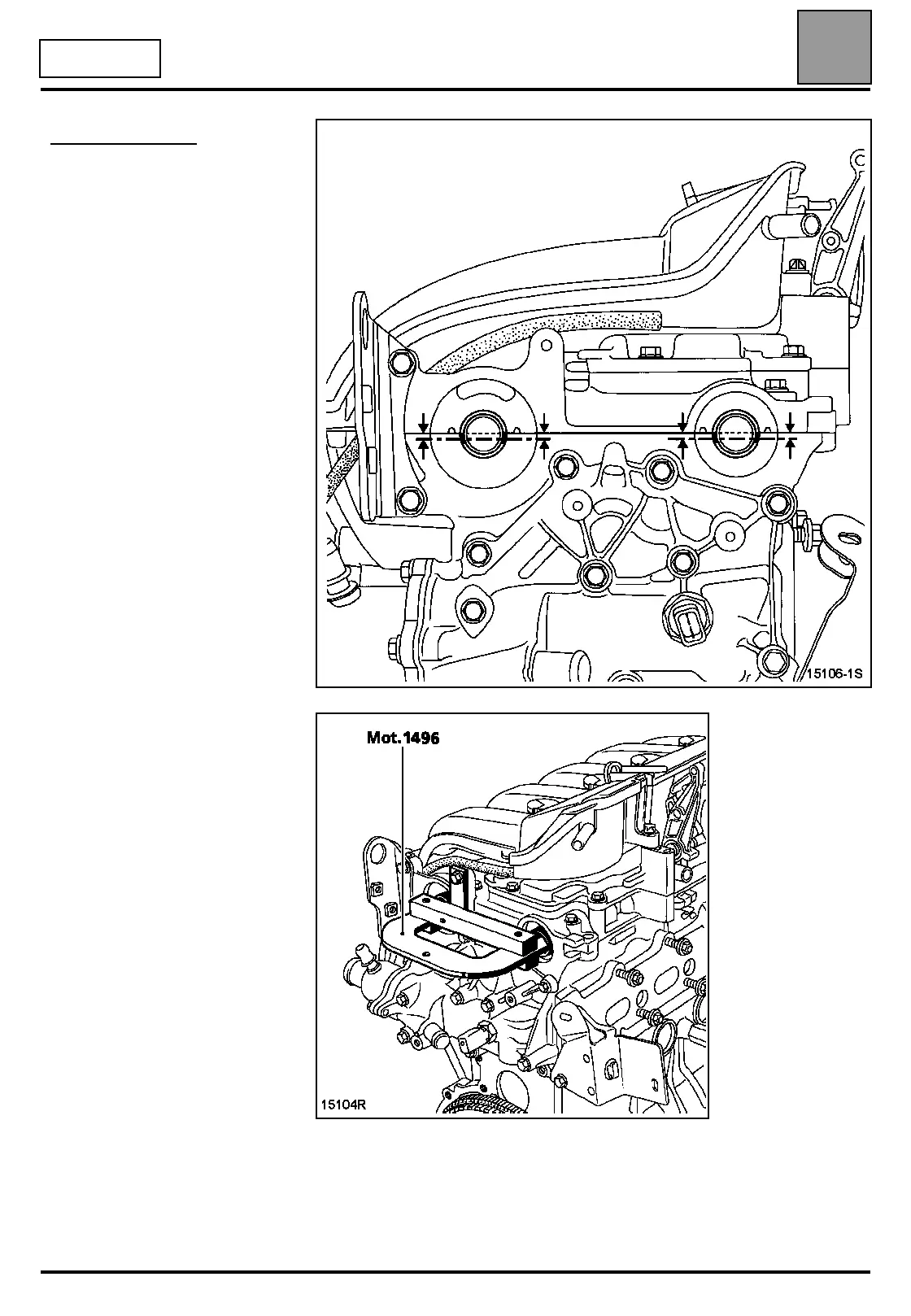

Checking the timing:
Ensure that the tension wheel
marks are in the correct position
before checking the setting of the
timing.
Fit the Top Dead Centre pin (check
that the marks made previously on
the camshaft pulleys are aligned).
Fit (without forcing) the camshaft
setting tool Mot. 1496 (the camshaft
grooves must be horizontal and
offset towards the bottom). If the
tool cannot be inserted, the timing
setting and tensioning procedure
must be repeated.
