VALUES AND SETTINGS
Tightening the cylinder head
07
L7X Engine
METHOD FOR TIGHTENING THE CYLINDER HEAD
REMINDER: Use a syringe to remove any oil which
may have entered the cylinder head mounting bolt
holes to ensure correct tightening of the bolts.
Pretighten bolt by bolt to 2 daNm in the recommended
order.
Undo completely by proceeding from bolt to bolt.

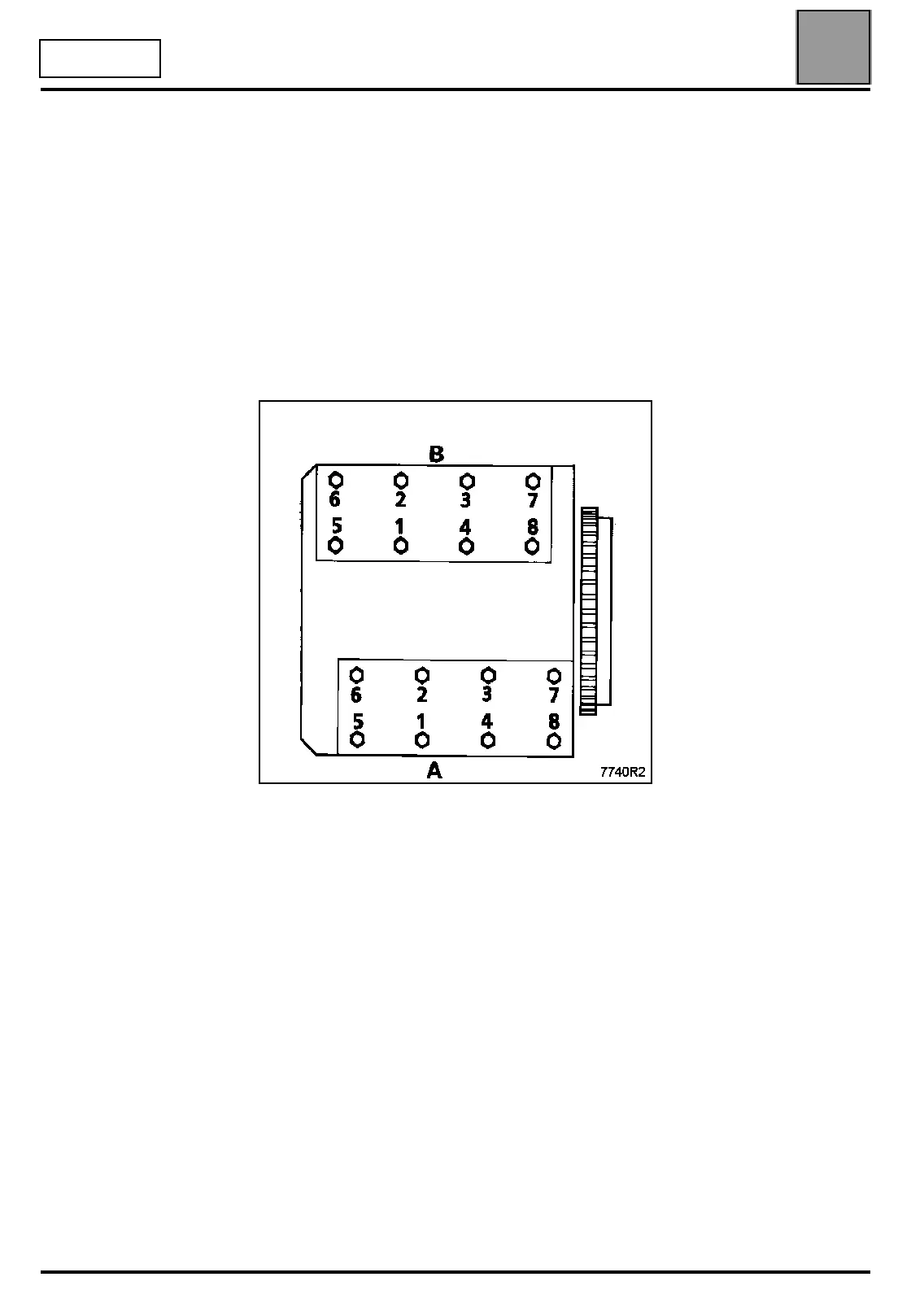

Pretighten bolt by bolt to 1.5 daNm then angle tighten
by 225° following the order of tightening:
07-43
To Next Page
