Renault LAGUNA 2000 - Front axle angle checking values (BG0 A with 15 tyres)

VALUES AND SETTINGS
Front axle angle checking values
07
BG0A
with 15’’ tyres

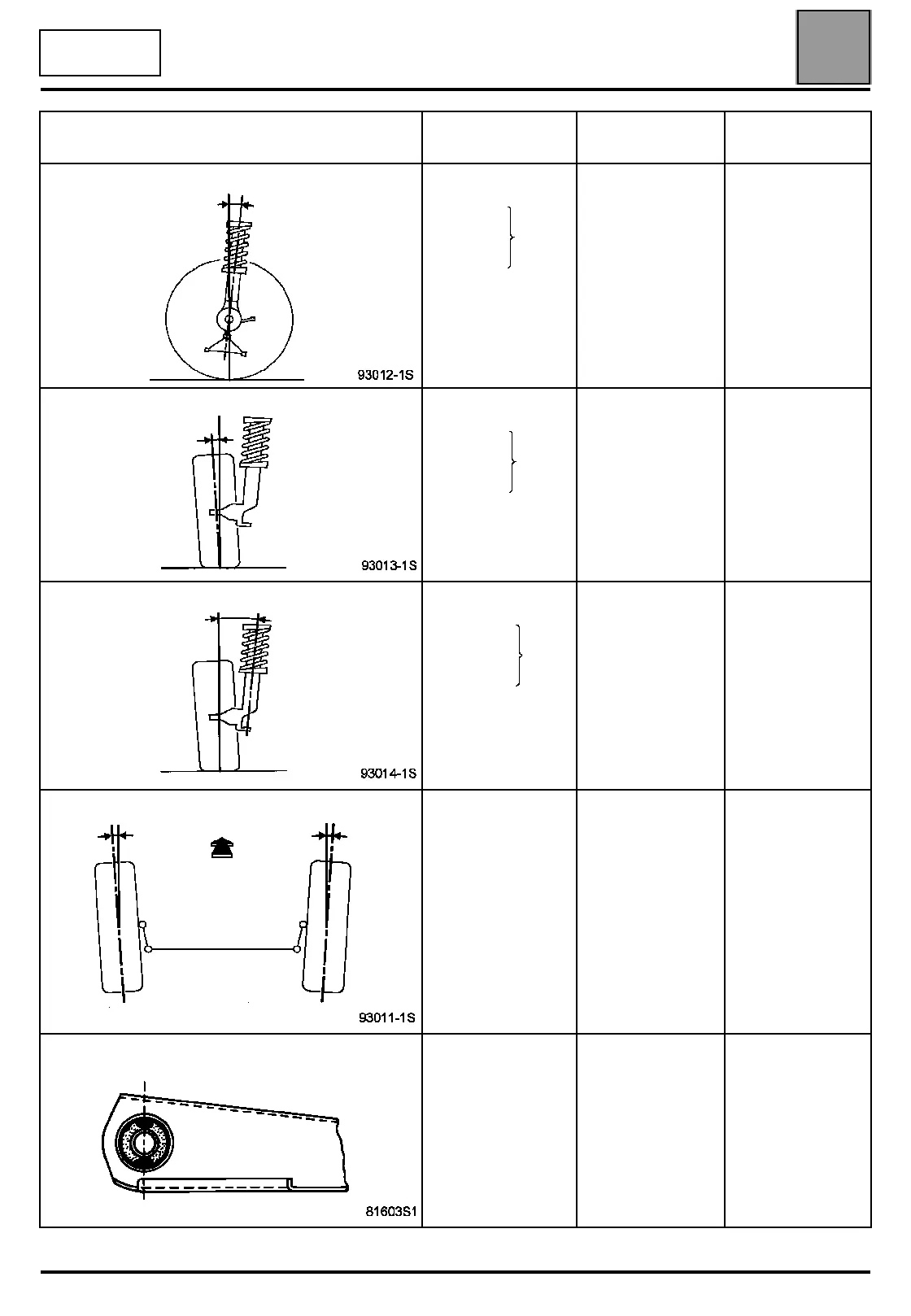

Front axle angle checking values
ANGLES VALUES
POSITION OF
FRONT AXLE
ADJUSTMENT
CASTOR
3˚46’
4˚16’ ±30’
4˚46’
Max. right/left
difference = 1˚
H5 - H2 = 28 mm
H5 - H2 = 8 mm
H5 - H2 = -12 mm
NOT
ADJUSTABLE
CAMBER
-0˚05’
-0˚12’ ±30’
-0˚20’
Max. right/left
difference = 1˚
H1 - H2 = 126 mm
H1 - H2 = 137 mm
H1 - H2 = 148 mm
NOT
ADJUSTABLE
PIVOT
12˚12’
12˚30’ ±30’
12˚52’
Max. right/left
difference = 1˚
H1 - H2 = 126 mm
H1 - H2 = 137 mm
H1 - H2 = 148 mm NOT
ADJUSTABLE
PARALLELISM
(for 2 wheels)
Toe-out
+0˚ ± 10’
+0 mm ± 1 mm
UNLADEN
Adjustable by
rotating track rod
sleeves
1 turn= 30’
(3 mm)
POSITION FOR TIGHTENING RUBBER
BUSHES
– UNLADEN –
07-48
