Renault LAGUNA 2000 - Front axle angle checking values (BG0 D with 16 tyres)

VALUES AND SETTINGS

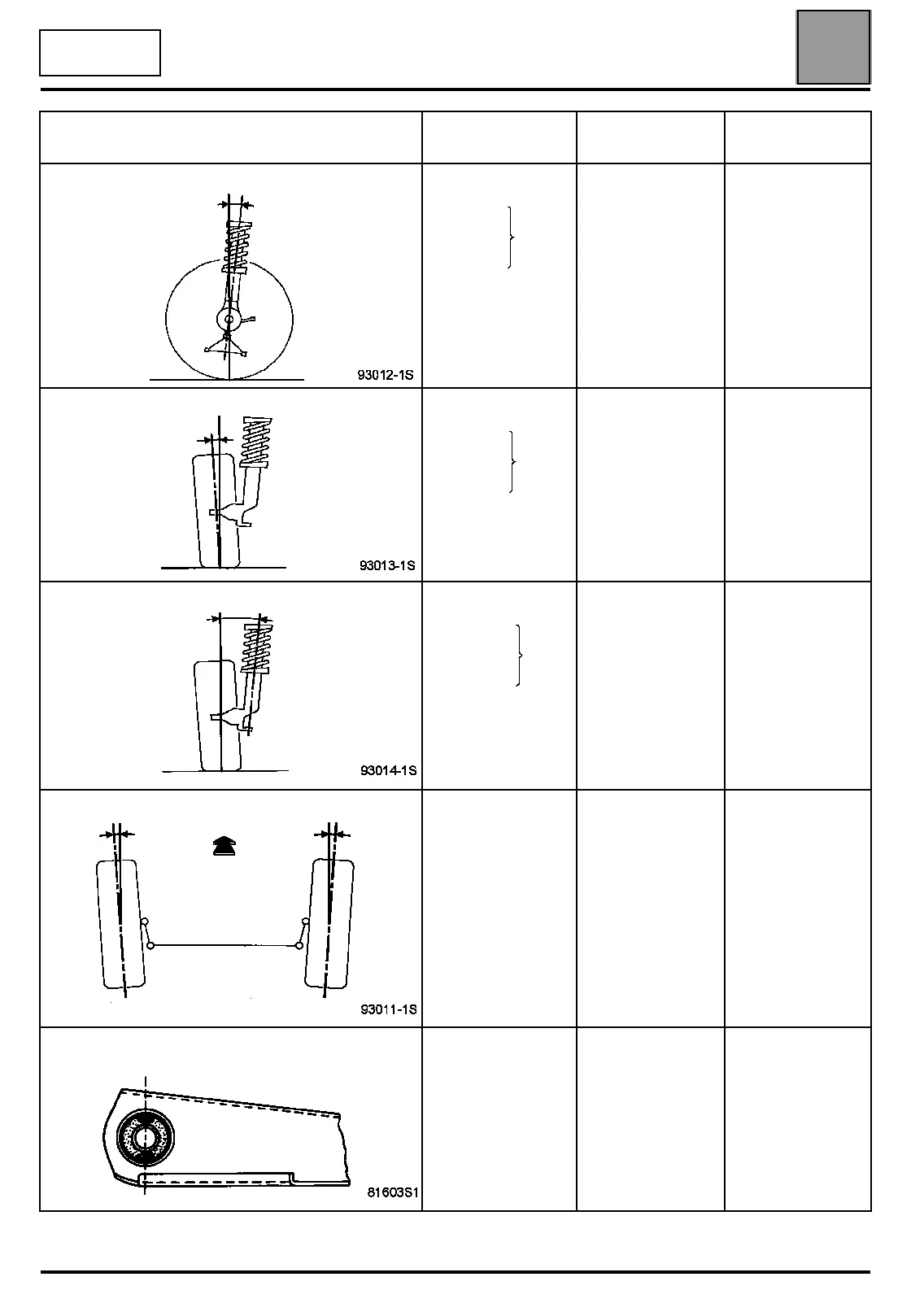

Front axle angle checking values
07
07-54
BG0D
with 16’’ tyres
ANGLES VALUES
POSITION OF
FRONT AXLE
ADJUSTMENT
CASTOR
3˚48’
4˚18’ ±30’
4˚48’
Max. right/left
difference = 1˚
H5 - H2 = 25 mm
H5 - H2 = 5 mm
H5 - H2 = -15 mm
NOT
ADJUSTABLE
CAMBER
-0˚06’
-0˚14’ ±30’
-0˚22’
Max. right/left
difference = 1˚
H1 - H2 = 119 mm
H1 - H2 = 134 mm
H1 - H2 = 148 mm
NOT
ADJUSTABLE
PIVOT
12˚12’
12˚30’ ±30’
12˚52’
Max. right/left
difference = 1˚
H1 - H2 = 119 mm
H1 - H2 = 134 mm
H1 - H2 = 148 mm NOT
ADJUSTABLE
PARALLELISM
(for 2 wheels)
Toe-out
+0˚ ± 10’
+1 mm ± 1 mm
UNLADEN
Adjustable by
rotating track rod
sleeves
1 turn= 30’
(3 mm)
POSITION FOR TIGHTENING RUBBER
BUSHES
– UNLADEN –
