Renault LAGUNA 2000 - Front axle angle checking values (BG0 G with 17 tyres)

VALUES AND SETTINGS
Front axle angle checking values
07
07-56
BG0G
with 17’’ tyres

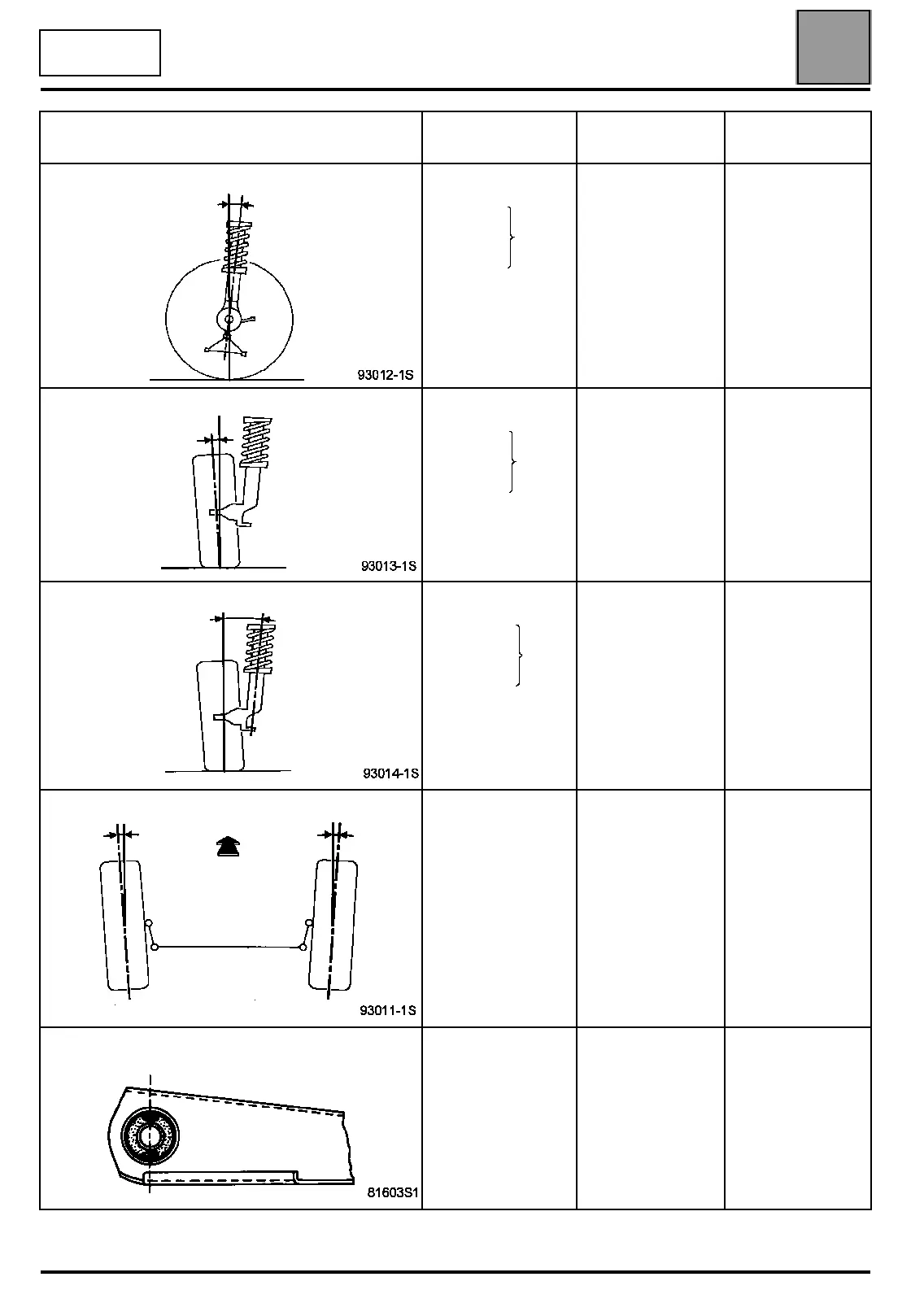

ANGLES VALUES
POSITION OF
FRONT AXLE
ADJUSTMENT
CASTOR
3˚37’
4˚07’ ±30’
4˚37’
Max. right/left
difference = 1˚
H5 - H2 = 41 mm
H5 - H2 = 21 mm
H5 - H2 = 1 mm
NOT
ADJUSTABLE
CAMBER
-0˚05’
-0˚12’ ±30’
-0˚20’
Max. right/left
difference = 1˚
H1 - H2 = 140 mm
H1 - H2 = 136 mm
H1 - H2 = 152 mm
NOT
ADJUSTABLE
PIVOT
12˚12’
12˚30’ ±30’
12˚52’
Max. right/left
difference = 1˚
H1 - H2 = 140 mm
H1 - H2 = 136 mm
H1 - H2 = 152 mm NOT
ADJUSTABLE
PARALLELISM
(for 2 wheels)
Toe-out
+0˚ ± 10’
+0 mm ± 1 mm
UNLADEN
Adjustable by
rotating track rod
sleeves
1 turn= 30’
(3 mm)
POSITION FOR TIGHTENING RUBBER
BUSHES
– UNLADEN –
