Renault LAGUNA 2000 - Front axle angle checking values (KG0 A with 16 tyres)

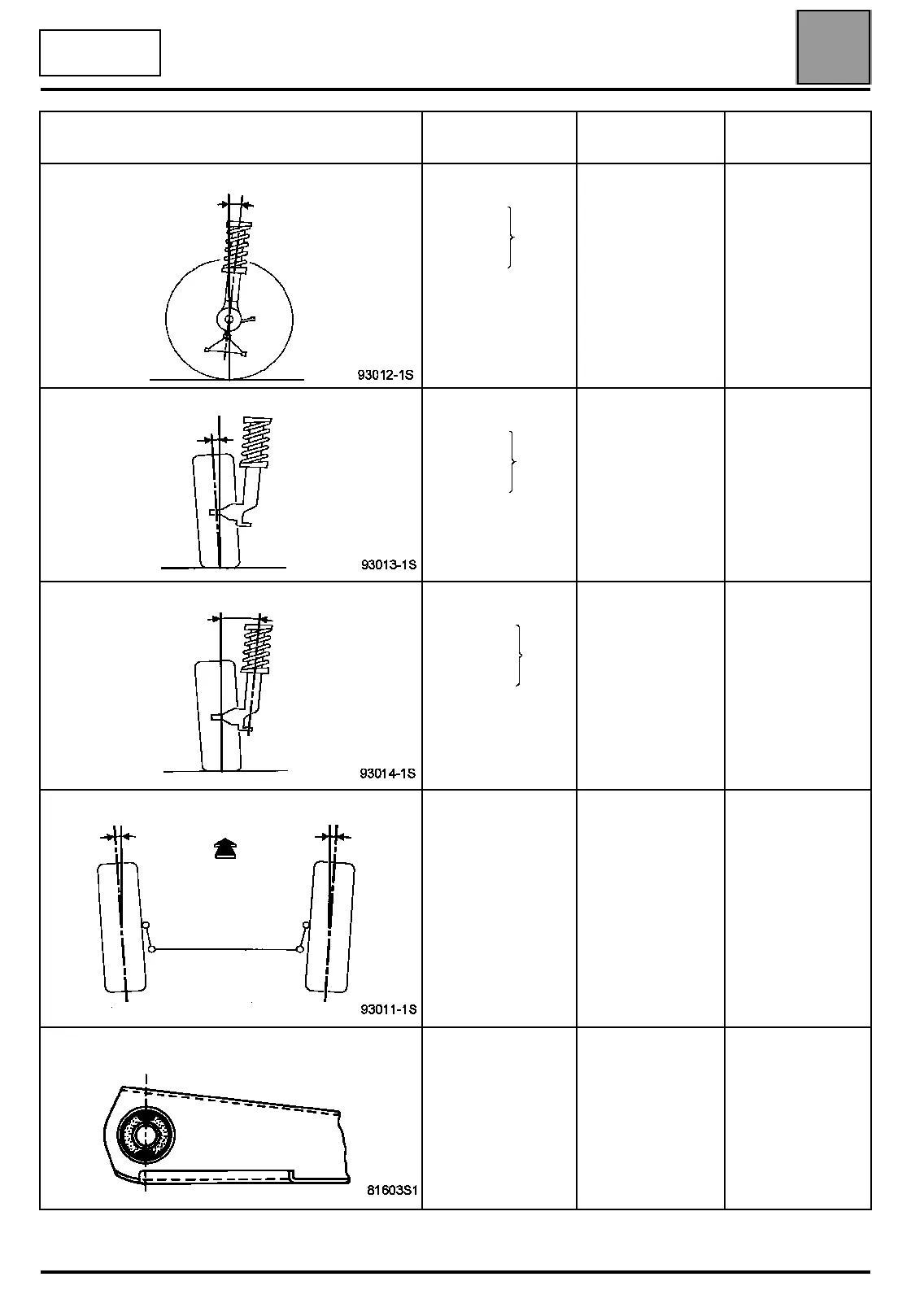

VALUES AND SETTINGS
Front axle angle checking values
07
07-59
KG0A
with 16’’ tyres
ANGLES VALUES
POSITION OF
FRONT AXLE
ADJUSTMENT
CASTOR
3˚49’
4˚19’ ±30’
4˚49’
Max. right/left
difference = 1˚
H5 - H2 = 28 mm
H5 - H2 = 8 mm
H5 - H2 = -12 mm
NOT
ADJUSTABLE
CAMBER
-0˚05’
-0˚12’ ±30’
-0˚20’
Max. right/left
difference = 1˚
H1 - H2 = 123 mm
H1 - H2 = 135 mm
H1 - H2 = 145 mm
NOT
ADJUSTABLE
PIVOT
12˚12’
12˚30’ ±30’
12˚52’
Max. right/left
difference = 1˚
H1 - H2 = 123 mm
H1 - H2 = 135 mm
H1 - H2 = 145 mm NOT
ADJUSTABLE
PARALLELISM
(for 2 wheels)
Toe-out
+0˚ ± 10’
+0 mm ± 1 mm
UNLADEN
Adjustable by
rotating track rod
sleeves
1 turn= 30’
(3 mm)
POSITION FOR TIGHTENING RUBBER
BUSHES
– UNLADEN –
