Renault LAGUNA 2000 - Front axle angle checking values (KG0 D with 17 tyres)

VALUES AND SETTINGS

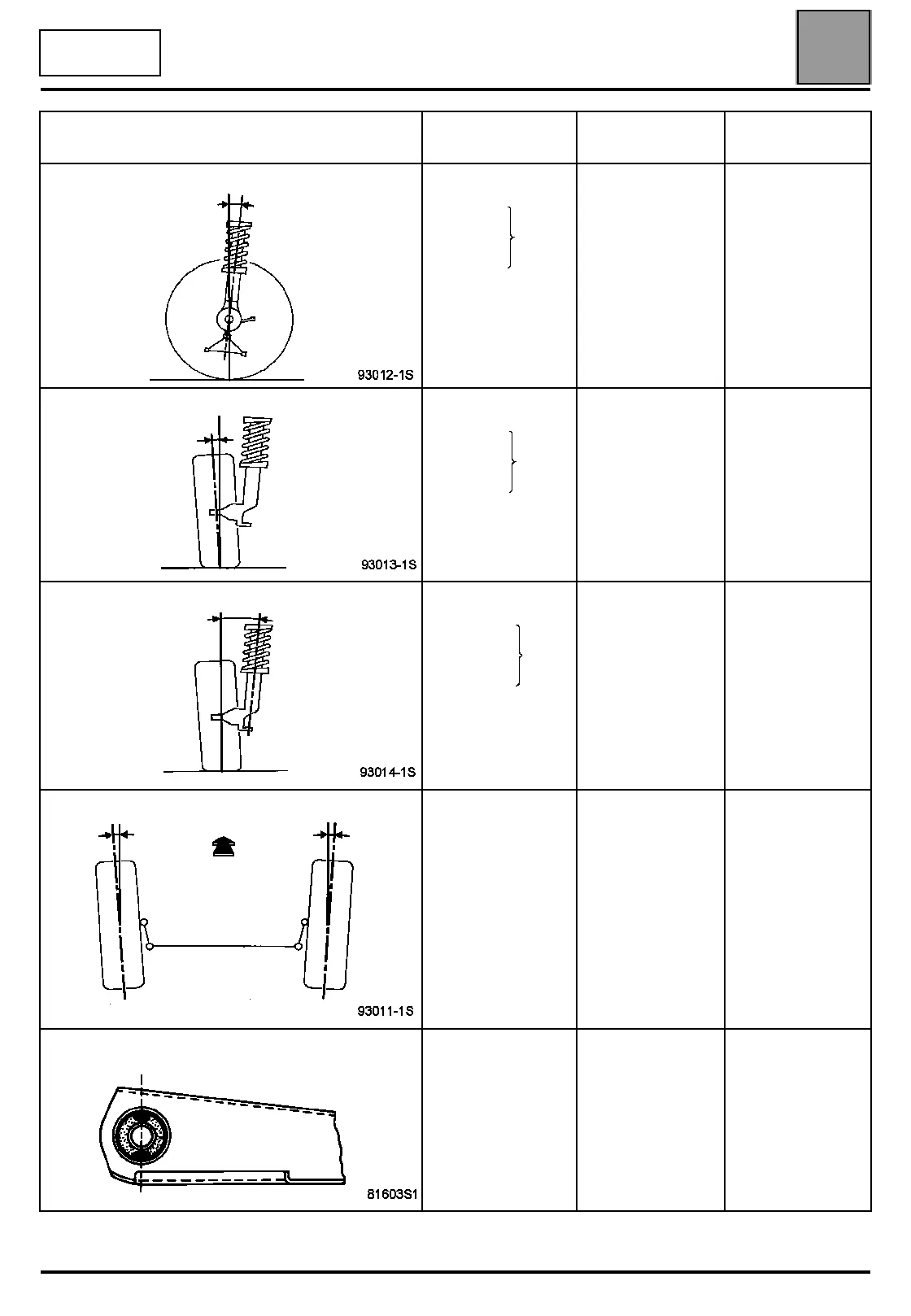

Front axle angle checking values
07
07-66
KG0D
with 17’’ tyres
ANGLES VALUES
POSITION OF
FRONT AXLE
ADJUSTMENT
CASTOR
3˚26’
3˚56’ ±30’
4˚26’
Max. right/left
difference = 1˚
H5 - H2 = 42 mm
H5 - H2 = 22 mm
H5 - H2 = 2 mm
NOT
ADJUSTABLE
CAMBER
-0˚06’
-0˚14’ ±30’
-0˚22’
Max. right/left
difference = 1˚
H1 - H2 = 137 mm
H1 - H2 = 135 mm
H1 - H2 = 148 mm
NOT
ADJUSTABLE
PIVOT
12˚12’
12˚30’ ±30’
12˚52’
Max. right/left
difference = 1˚
H1 - H2 = 137 mm
H1 - H2 = 135 mm
H1 - H2 = 148 mm NOT
ADJUSTABLE
PARALLELISM
(for 2 wheels)
Toe-out
+0˚10’ ± 10’
+1 mm ± 1 mm
UNLADEN
Adjustable by
rotating track rod
sleeves
1 turn= 30’
(3 mm)
POSITION FOR TIGHTENING RUBBER
BUSHES
– UNLADEN –
