Enjoliveur, roue (X82 PH2 - Renault)
Wheel trim, wheel
WHEEL TRIM, WHEEL
Do not leave the tools un-
secured inside the vehicle
as they may come loose
under braking. After use,
check that all the tools are correctly
clipped into the tool kit, then position
it correctly in its housing to reduce
the risk of injury.

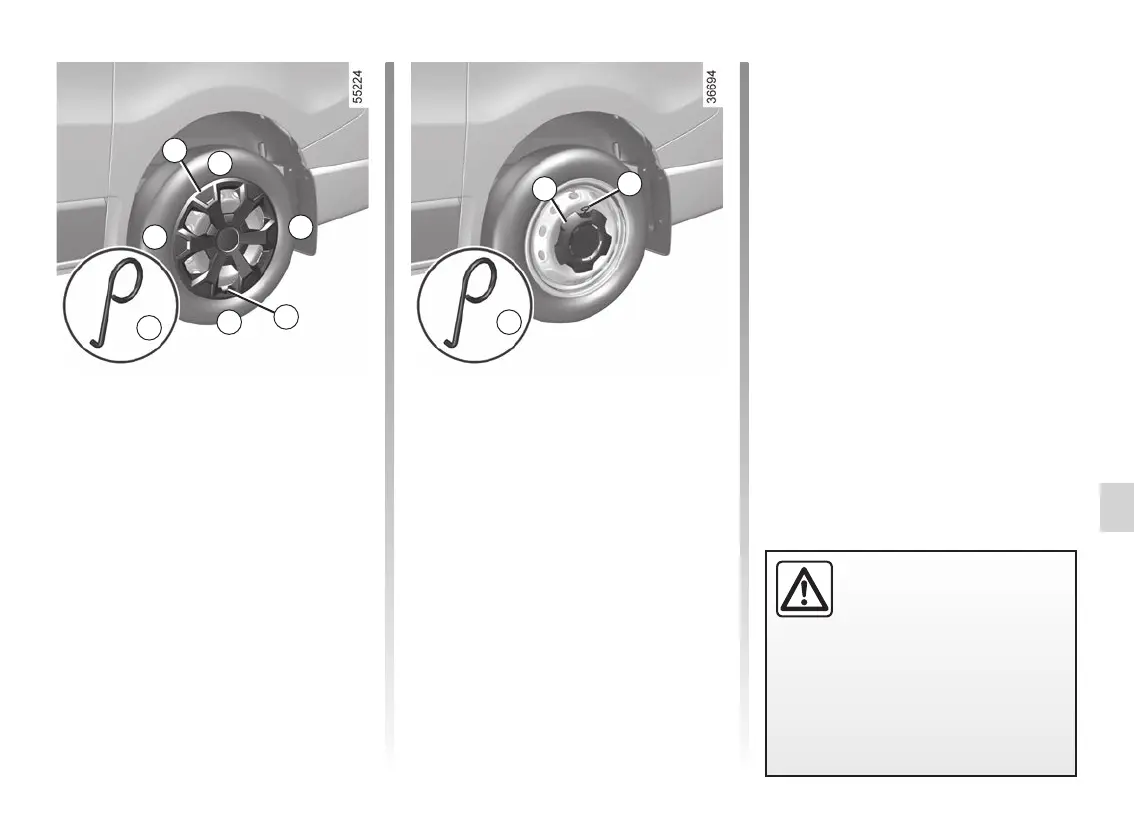

Wheel trim 1
Remove the wheel trim using hubcap
tool 2 (located in the tool kit) by fit-
ting the hook into one of the openings
around the edge of the wheel trim.
To refit it, align it with valve 3.
Push the retaining hooks in fully, start-
ing on the side of valve A, followed by B
and C, finishing at Dopposite the valve.
Wheel trim 4
Remove using hubcap tool 2 (located in
the tool kit) by engaging the hook in the
opening near the edge of the trim.
To refit, position the five trim attach-
ments facing the five wheel attach-
ments and press hard in the middle of
the trim to clip it to the wheel.
