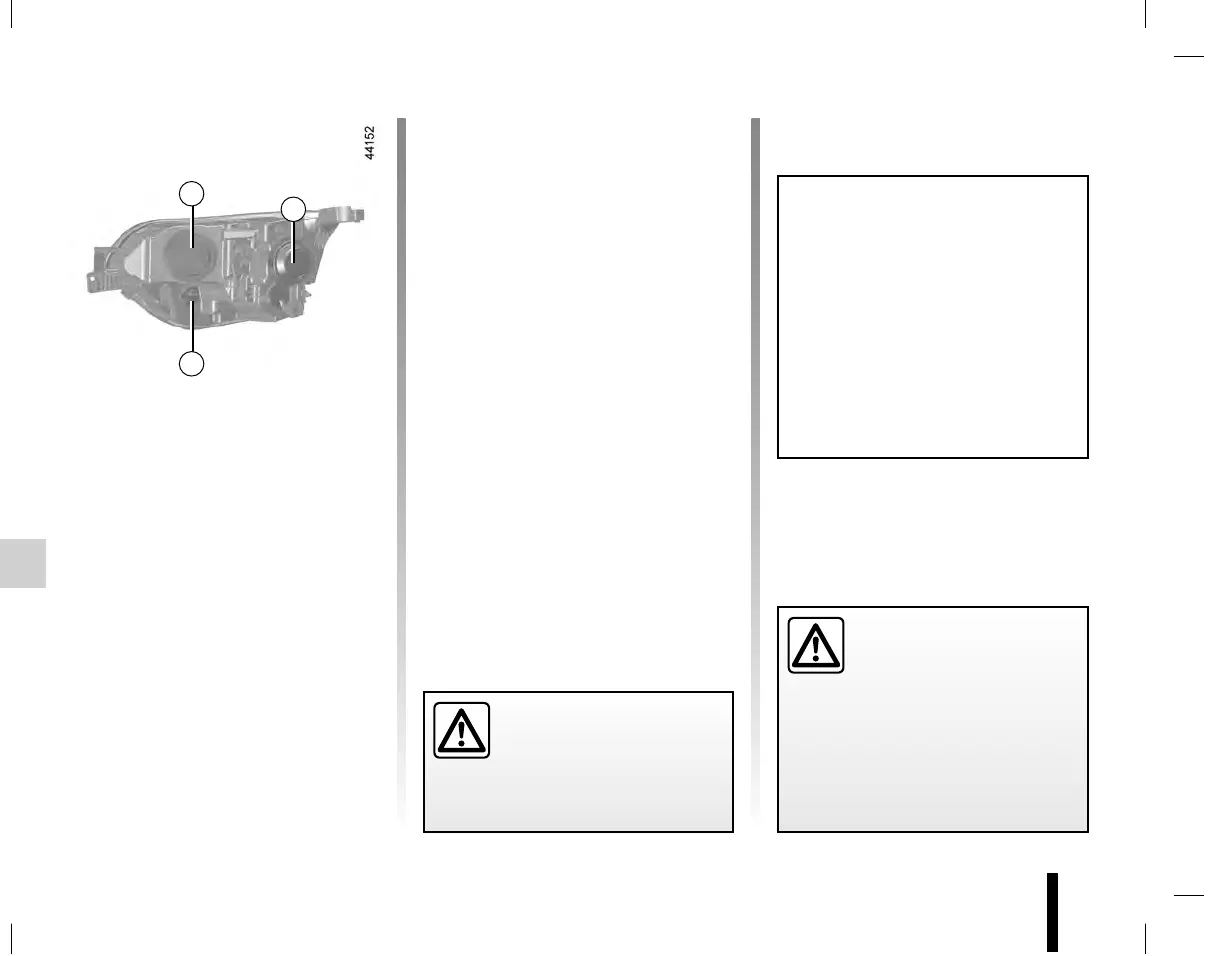

Feux avant : remplacement des lampes (XBC - Renault)ENG_NU_1321-2_XBC_Renault_5
Main beam and position lamp
– keep the engine in OFF condition;
– open the bonnet as per procedure
under section,”Opening the bonnet”;
– remove the dustcap 1;
– disconnect the wiring;
– unclip the spring and remove the
bulb.
Bulb type: H1(high beam) / W5W (po-
sition lamp).
The engine may be hot
during operations in close
proximity.In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
FRONT LIGHTS-CHANGING BULBS
1
2
3
Low beam headlight
– keep the engine in OFF condition;
– open the bonnet as per procedure
under section,”Opening the bonnet”;
– remove the dustcap 2;
– disconnect the wiring;
– unclip the spring and remove the
bulb.
Bulb type : H7.
Direction indicator lights
– keep the engine in OFF condition;
– open the bonnet as per procedure
under section,”Opening the bonnet”;
– turn the bulb holder 3 a quarter of a
turn and take out the bulb.
Bulb type : PY21W.
The headlamps can be replaced.
However, we recommend you to
have them replaced with an ap-
proved dealer,if it proves difficult.
To comply with legislation, or as
a precaution, you can obtain an
emergency kit containing a set
of spare bulbs and fuses from an
approved dealer.
