Renesas RA6M Series User Manual

Renesas RA Family AIK-RA6M3, v1 User's Manual
R12UZ0143EE0100 Rev.0.1 Page
15
of 25
Oct.15.23
9
GPIO1
P500
GPIO1
P500
CS2
P500
10
GPIO2
P507
GPIO2
P507
SC3
P507
11
GND
VSS
GND
VSS
GND
VSS
12
VCC
+3.3V
VCC
+3.3V
VCC
+3.3V

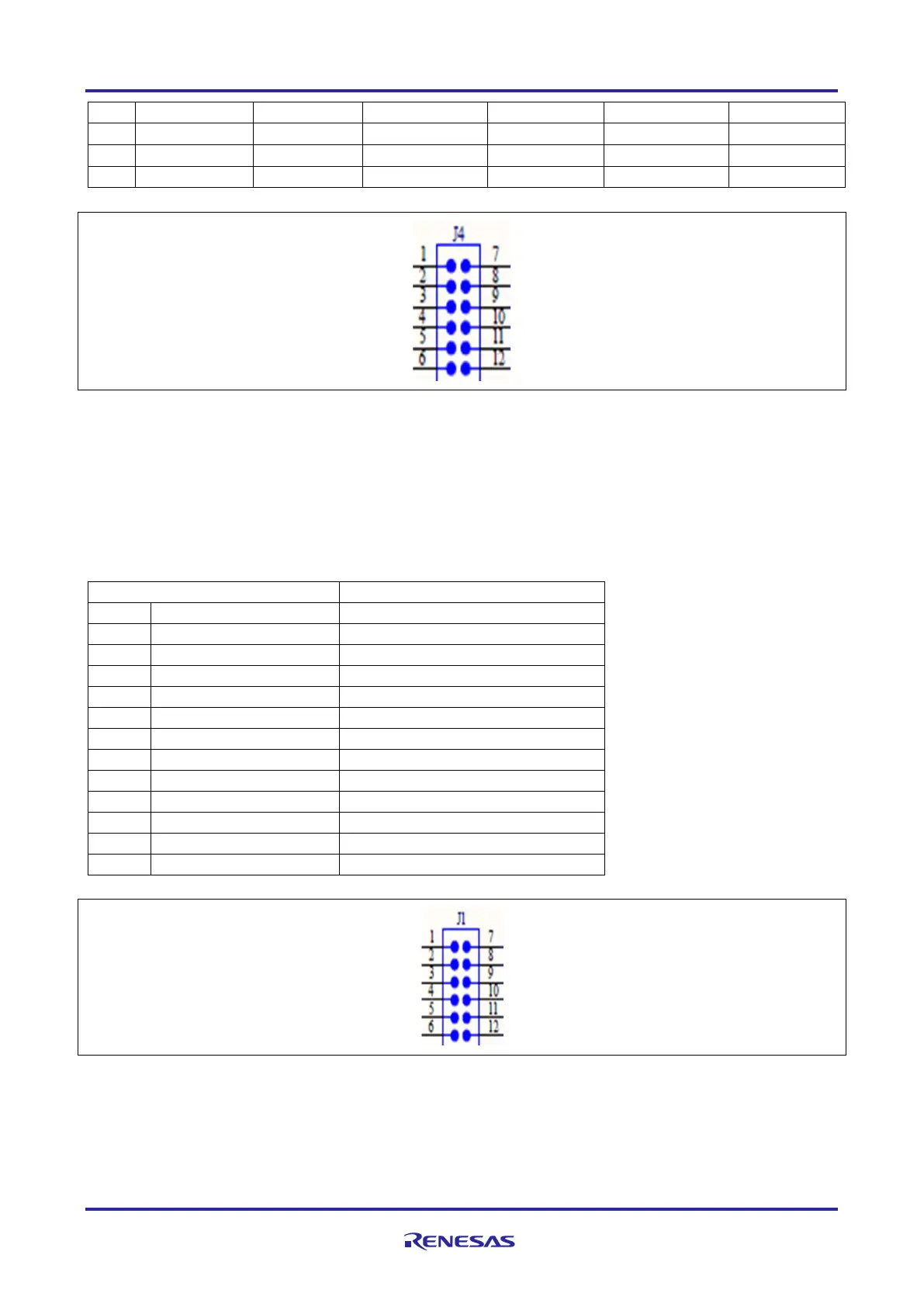

Figure 10. PMOD 2
5.2.8 PMOD 3
A 12-pin PMOD Type-2A connector is provided at PMOD 3. The Main MCU acts as the SPI master, and the
connected module acts as an SPI slave device. This interface may additionally be re-configured in firmware
as several other PMOD types.
This PMOD interface supports +3.3V devices. Please ensure that any PMOD device installed is compatible
with a +3.3V supply.
Table 7. PMOD 3 Connector (J1)
PMOD 3 Connector
AIK-RA6M3
Pin
Description
Signal/Bus
1
SS/CTS_RTS
P606 (SS8/CTS8)
2
MOSI/TXD
PA00 (MOSI8/TXD8/SDA8)
3
MISO/RXD
P607 (MISO8/RXD8/SCL8)
4
SCK
PA01 (SCK8)
5
GND
VSS
6
VCC
+3.3V
7
INT (slave to master)
P002 (IRQ8-DS)
8
RESET (master to slave)
P508
9
GPIO1
P513
10
GPIO2
P600
11
GND
VSS
12
VCC
+3.3V
Figure 11. PMOD 3
5.2.9 PMOD 4
A 12-pin PMOD Type-2A connector is provided at PMOD 4. The Main MCU acts as the SPI master, and the
connected module acts as an SPI slave device. This interface may additionally be re-configured in firmware
as several other PMOD types.
