Renesas RA Family AIK-RA6M3, v1 User's Manual
R12UZ0143EE0100 Rev.0.1 Page
16
of 25
Oct.15.23
This PMOD interface supports +3.3V devices. Please ensure that any PMOD device installed is compatible
with a +3.3V supply.

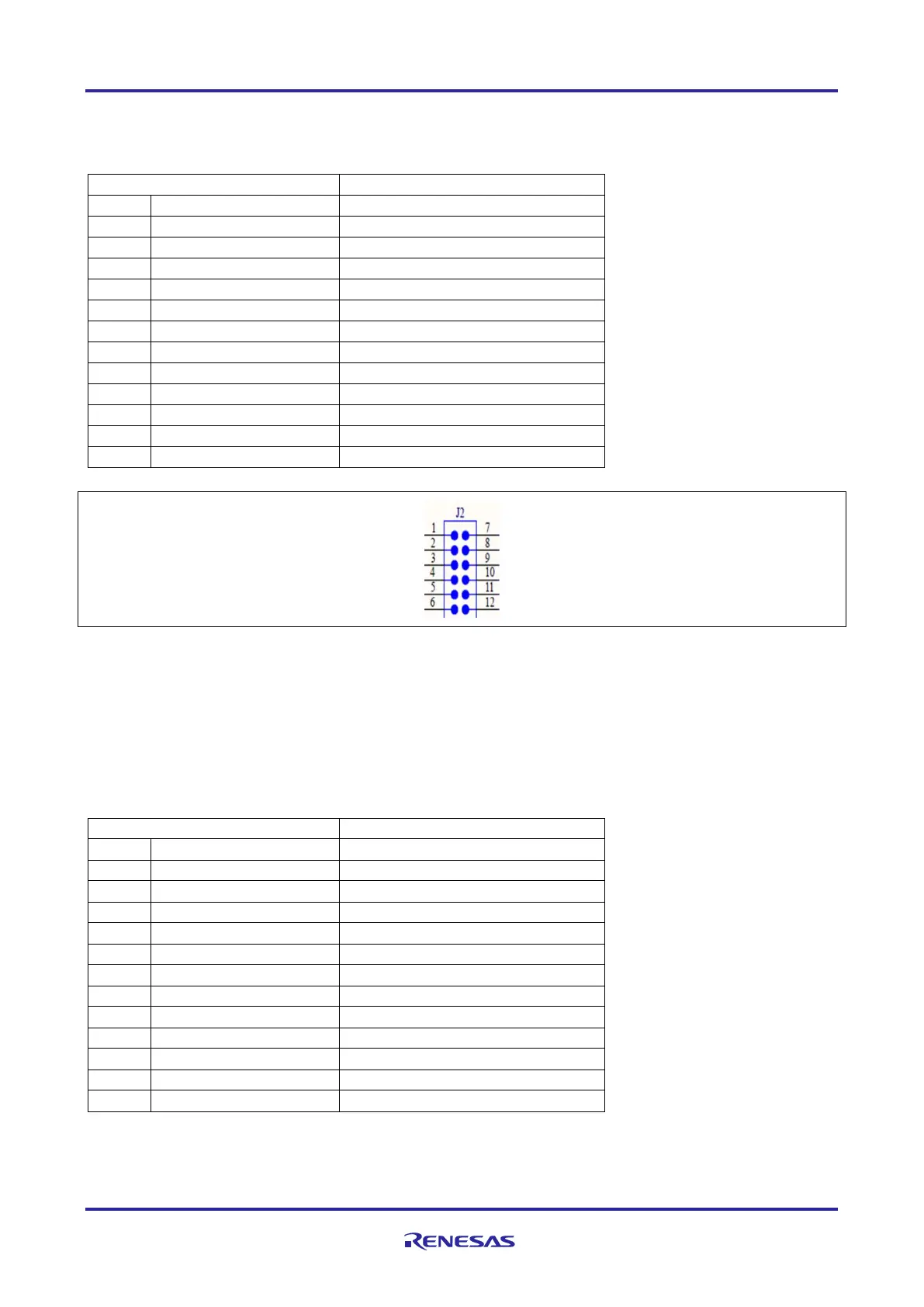

Table 8. PMOD 4 Connector (J2)
PMOD 2 Connector
AIK-RA6M3
Pin
Description
Signal/Bus
1
SS/CTS_RTS
P504 (SS5/CTS5)
2
MOSI/TXD
P501 (MOSI5/TXD5)
3
MISO/RXD
P502 (MISO5/RXD5)
4
SCK
P503
5
GND
GND
6
VCC
+3.3V
7
INT (slave to master)
P004 (IRQ9)
8
RESET (master to slave)
P615
9
GPIO1
P802 (GPIO1)
10
GPIO2
P803 (GPIO2)
11
GND
GND
12
VCC
+3.3V
Figure 12. PMOD 4
5.2.10 PMOD 5
A 12-pin PMOD Type-2A connector is provided at PMOD 5. The Main MCU acts as the SPI master, and the
connected module acts as an SPI slave device. This interface may additionally be re-configured in firmware
as several other PMOD types.
This PMOD interface supports +3.3V devices. Please ensure that any PMOD device installed is compatible
with a +3.3V supply.
Table 9. PMOD 5 Connector (J5)
PMOD 2 Connector
AIK-RA6M3
Pin
Description
Signal/Bus
1
SS/CTS_RTS
P806
2
MOSI/TXD
P900 (MOSI4/TXD4)
3
MISO/RXD
P315 (MISO4/RXD4)
4
SCK
P901
5
GND
GND
6
VCC
+3.3V
7
INT (slave to master)
NC
8
RESET (master to slave)
NC
9
Not Specified (GPIO)
NC
10
Not Specified (GPIO)
NC
11
GND
GND
12
VCC
+3.3V
