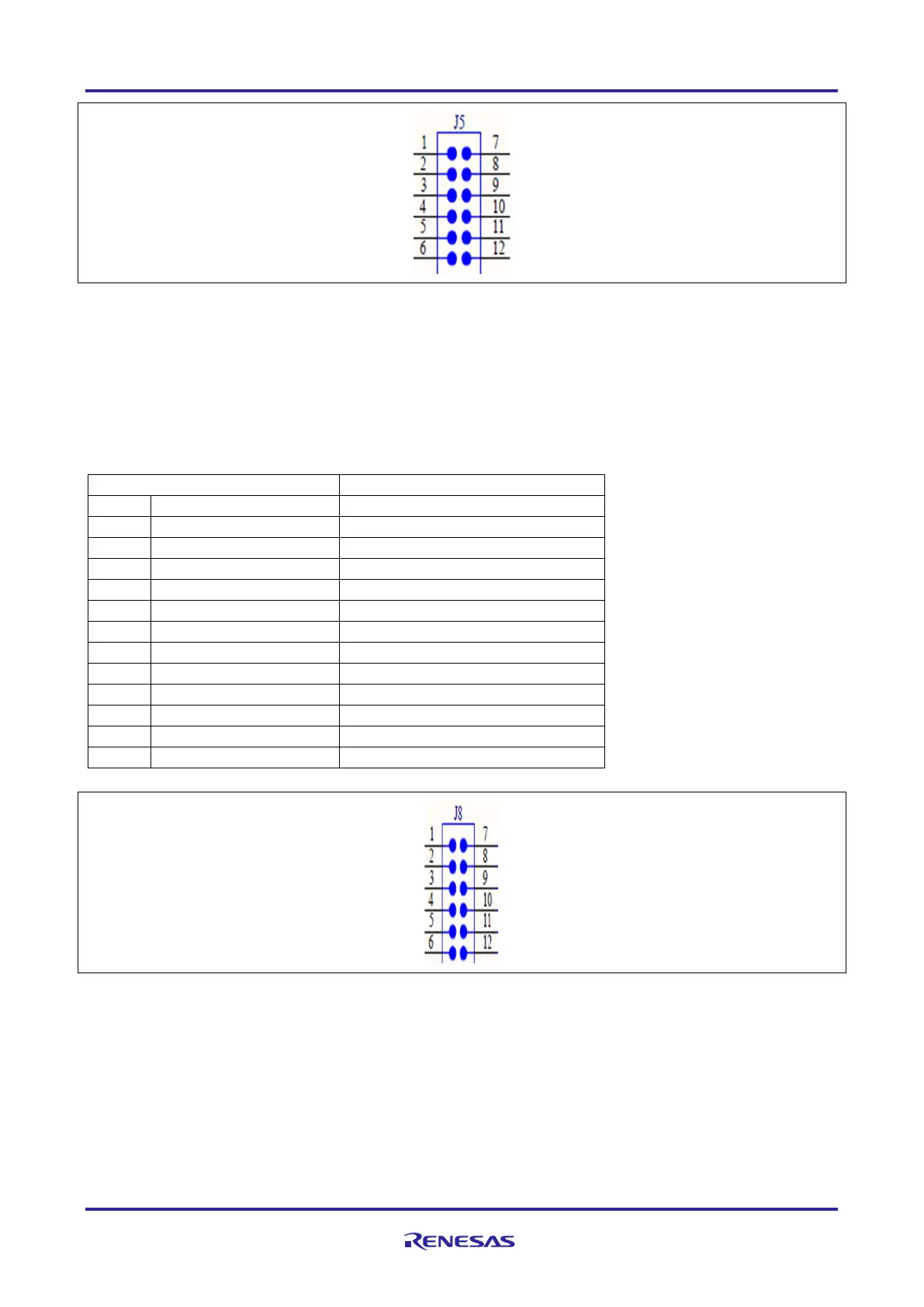

Figure 13. PMOD 5
5.2.11 PMOD 6
A 12-pin PMOD Type-2A connector is provided at PMOD 6. The Main MCU acts as the SPI master, and the
connected module acts as an SPI slave device. This interface may additionally be re-configured in firmware
as several other PMOD types.
This PMOD interface supports +3.3V devices. Please ensure that any PMOD device installed is compatible
with a +3.3V supply.
Table 10. PMOD 6 Connector (J8)
PMOD 2 Connector
AIK-RA6M3
Pin
Description
Signal/Bus
1
INT (slave to master)
P006 (IRQ11)
2
RESET
P905
3
SCL
P400
4
SDA
P401
5
GND
GND
6
VCC
+3.3V
7
GPIO1
PA08
8
GPIO2
PA09
9
GPIO3
PA10
10
GPIO4
P805
11
GND
GND
12
VCC
+3.3V
Figure 14. PMOD 6
