Renesas RA Family AIK-RA6M3, v1 User's Manual
R12UZ0143EE0100 Rev.0.1 Page
6
of 25
Oct.15.23
2. Kit Contents
The following components are included in the Development Kit S7G2 (AIK-RA6M3):
1. AIK-RA6M3 board.
2. OV2640 Camera module
3. Renesas ICM-42670-P PMOD Board
4. Display
5. Ethernet patch cable
6. Micro USB device cable (type-A male to micro-B male)
7. Micro USB device cable (type-A male to type-C male)

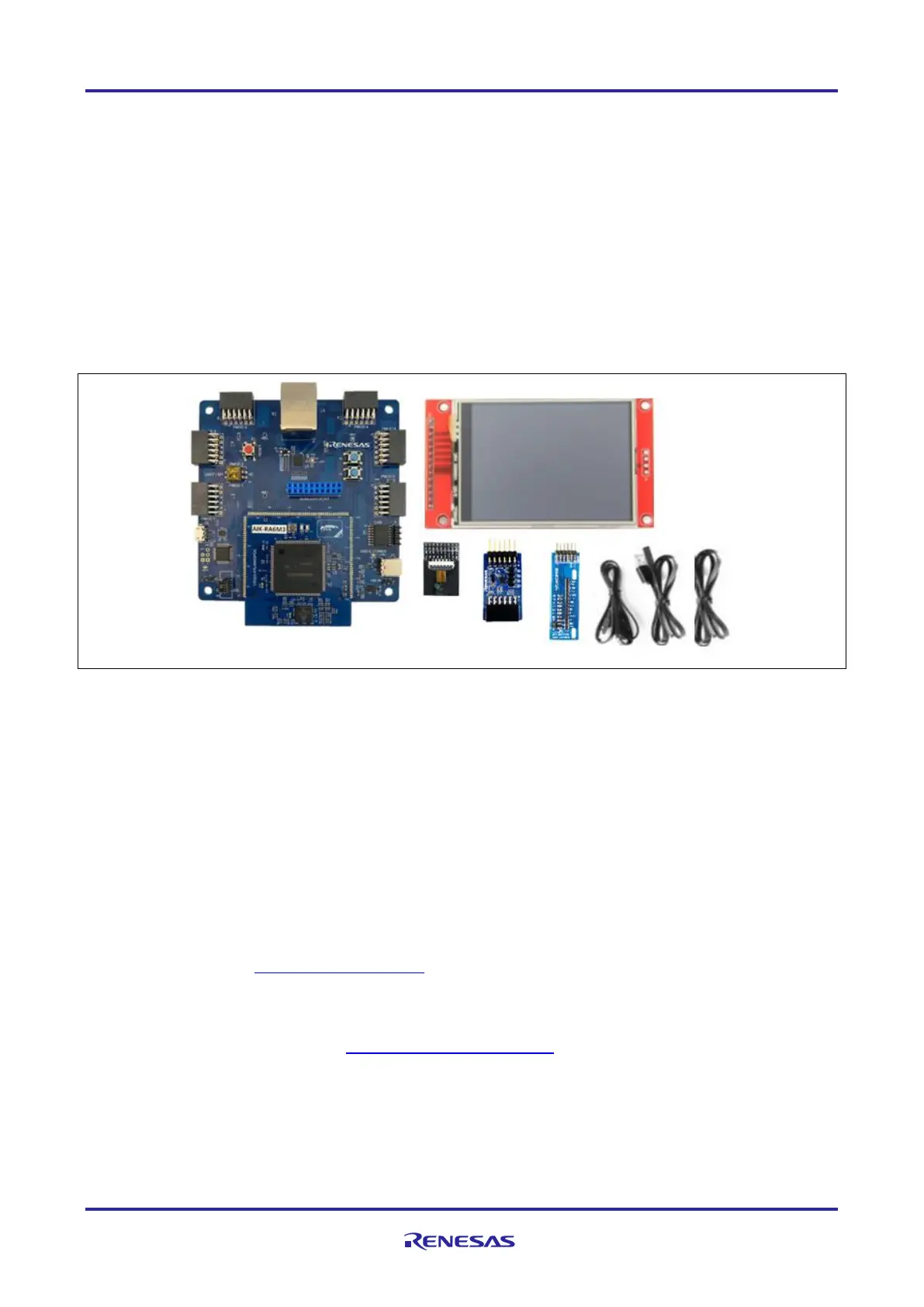

Figure 3. Kit Contents
3. Ordering Information
AIK-RA6M3 Orderable Part Number: RTK0EG0001D00001BE
4. Getting Started with Embedded Software Development Using the AIK-RA6M3
To develop and execute embedded applications for RA microcontrollers, Flexible Software Package (FSP)
and development tools are required to be installed on your computer.
4.1 Installing the Flexible Software Package and Development Tools
The FSP, J-Link USB drivers and the supported development tool chains are bundled and available as single
downloadable platform installer.
Visit the FSP webpage (www.renesas.com/ra/fsp) and scroll down to the Release section. Download the
platform installer from the link provided there.
e
2
studio Platform Installer: Installs the Flexible Software Package and Eclipse-based e
2
studio for the RA
integrated development environment (IDE) with GCC ARM embedded complier and J-Link USB drivers. The
e
2
studio package is also available at www.renesas.com/ra/e2studio.
4.1.1 Useful Tips
Renesas recommends new users use the “Quick Install” option provided in the installation wizard, to
minimize the amount of manual configuration needed. You can always come back and install additional
options later.
The platform installer includes the Flexible Software Package as well as the selected development tool.
There is no need to install these packages separately.
