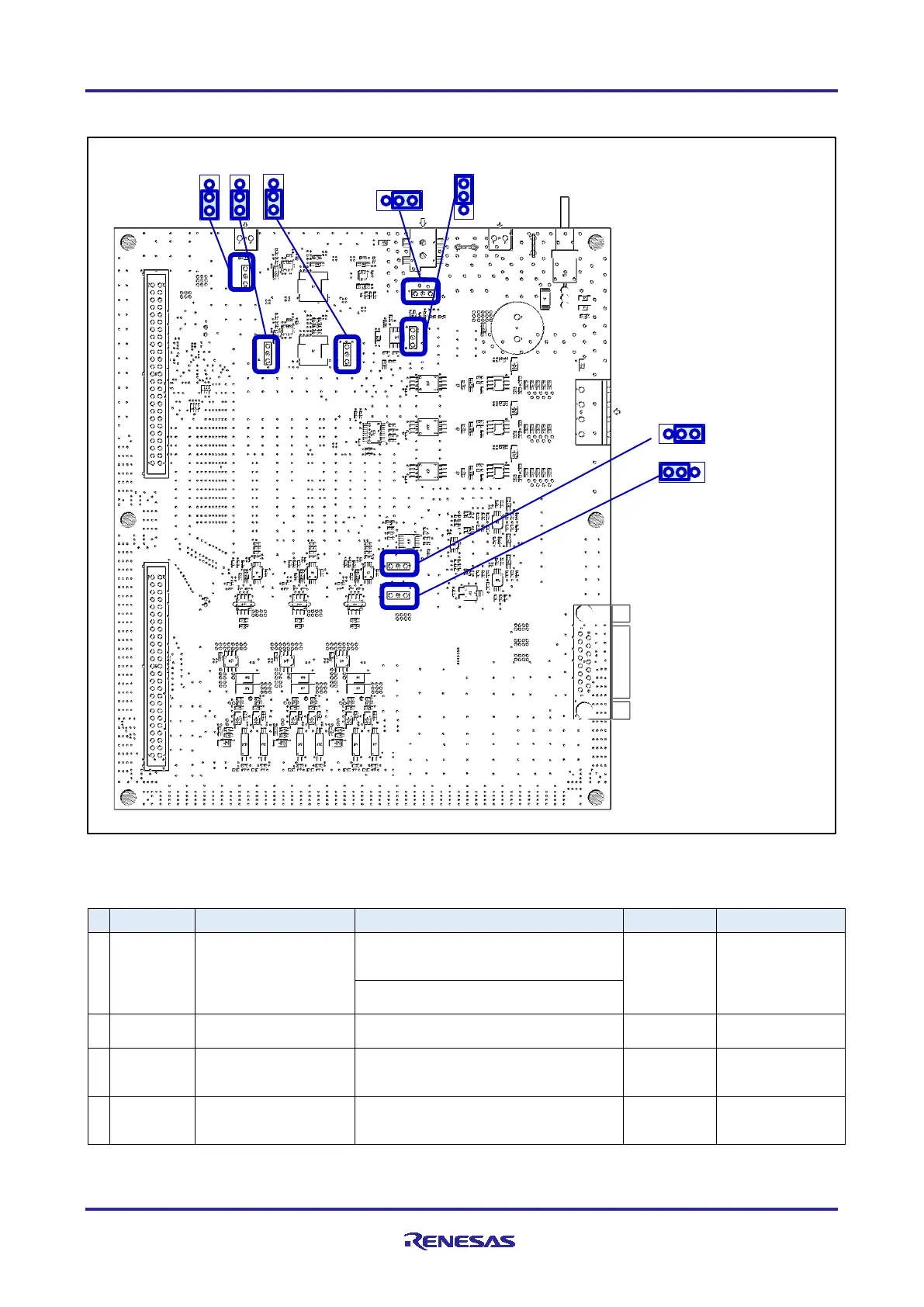

Figure 3.4 Inverter board jumper
Table 3.7 Inverter board jumper function
No
JP
Item
Content
Default
Remarks
1
P10/P11/P13
Gate driver power selection
P10Jumper1-2, P11Jumper1-2, P13Jumper1-2:
Generates + 24V to + 15V on board
JP10Jumper1-
2
/JP11Jumper1
-
2
+15V
P10Jumper2-3, P11Jumper2-3, P13Jumper2-3:
Supply + 15V from the external (P9)
JP13Jumper1-2
2
P1
Power supply to RZ / T2
motor controller board
Jumper1-2: Supply + 24V
Jumper2-3: Do not supply + 24V
Jumper1-2
3
P7
Bus voltage detection
Insulated / non-insulated
option
Jumper1-2: non-insulated
Jumper
2-3: Insulated
Jumper1-2
AD_BUS, Insulated by
connect via insulated
AMP
4
P15/P14
Overcurrent detection
insulation / non
-insulation
option
P15Jumper1-2, P14Jumper1-2: Non-insulated
/P15
Jumper2-3, P14Jumper2-3: Insulated
JP15Jumper1-2
JP14
Jumper1-2
Insulated by connect
via insulated AMP
SW1 * Listed in Table 3.5
P10, P11,P13
3
1
P1
P7
3
1
3
1
3
1
3
1
P15
P14
3
1
1
3
