CONNECTING THE WIRES
2
Fig.1
Fig.2
WHITE
BLACK
COPPER
WIRE CAP
COPPER
BLUE
WHITE
BLACK
RED

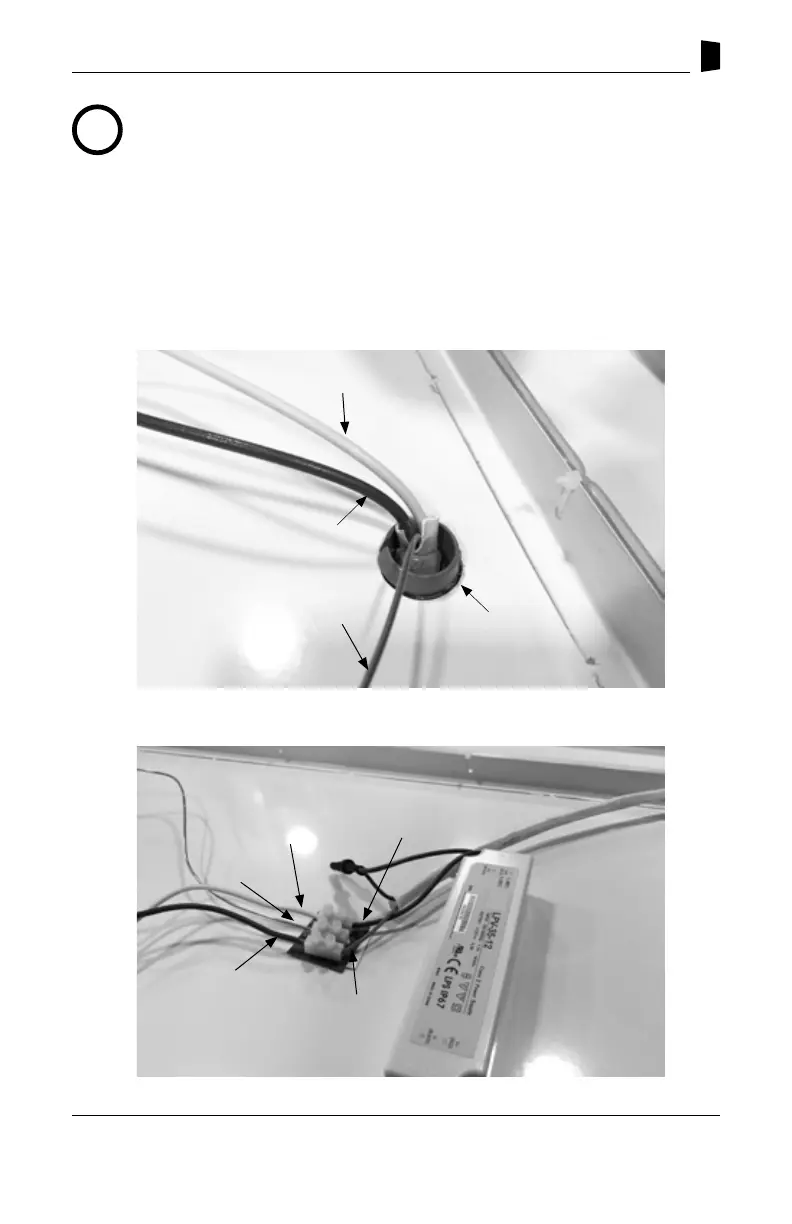

Ensure wires feed through the safety wire cap (Fig.1). Connect wires
into the connecting harness in (Fig.2). Align the white wire from the
wall with the blue wire and black wire with the red wire. The copper
ground wire should be tightened in place in the center of the
connection module. Ensure all connection are tight in place before
proceeding.
INSTRUCTION MANUAL | HARDWIRED LED ILLUMINATED MIRROR | ENGLISH | 5
PART# 98-3200 REV.B
