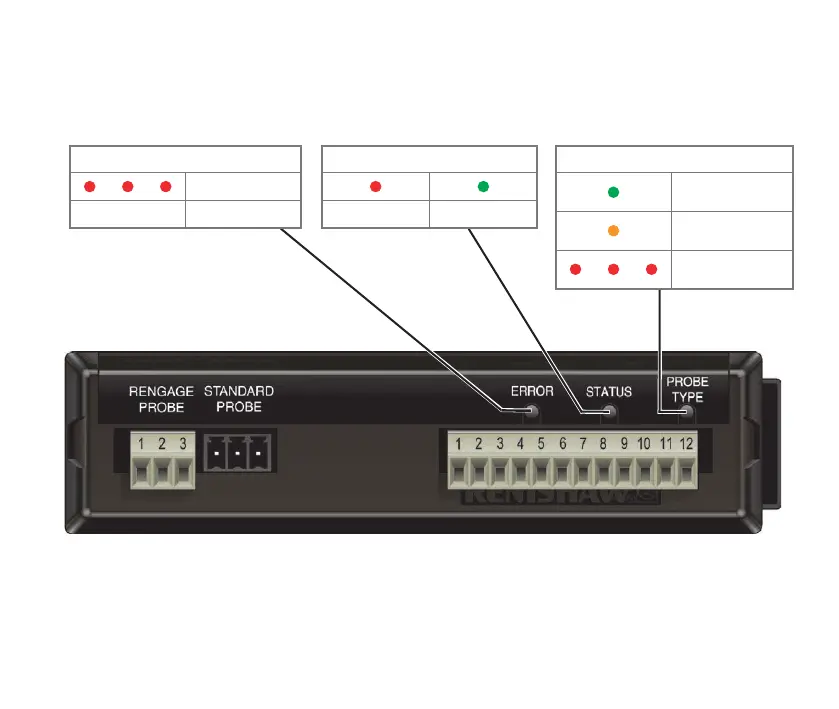

HSI visual diagnostics
ERROR LED
OFF
Error No error
PROBE STATUS LED
Probe triggered Probe seated
PROBE TYPE LED
Connected to
RENGAGE
TM
probe
Connected to
standard probe
Probe inhibit
function active
