Renishaw OMP40-2 Quick Start Guide

22
ACTIVE SYSTEM LED
Probe 1
Probe 2
Probe 3
LOW BATTERY LED
Battery low
Overload error
ERROR LED
Signal from probe has either
failed or stopped
A second modulated signal
has been received
Interference or a weak
probe signal has been
received
Interference or a weak
probe signal has caused the
trigger instant to be delayed
Invalid start signal
Overload error
PROBE STATUS LED
Probe seated
Probe triggered
Overload error
SIGNAL LED
Signal good
Interference or
weak signal
No signal
START LED
Start
NOTE: The appearance of your OMM-2
may differ slightly from that shown.

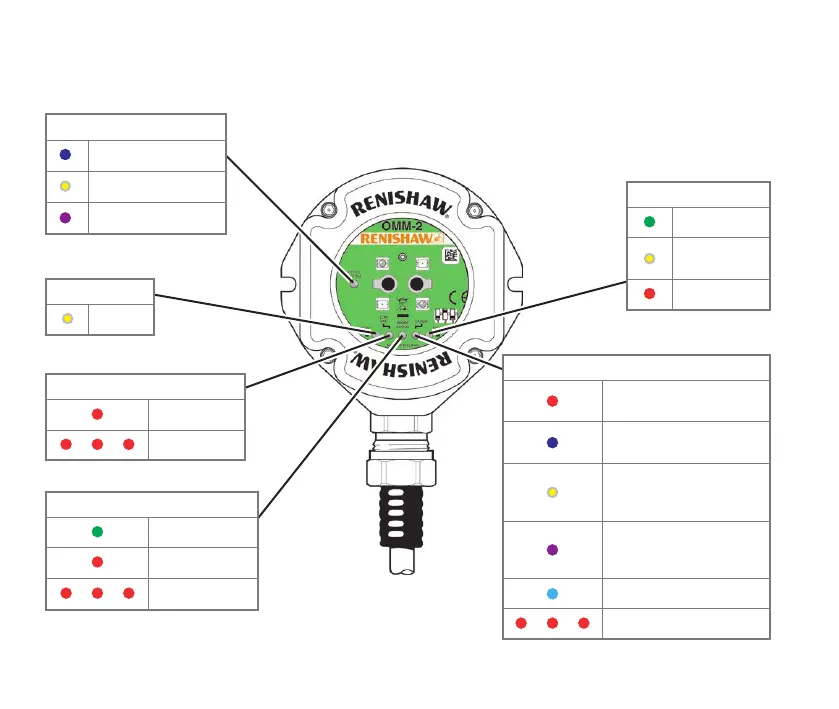

OMM-2 visual diagnostics
