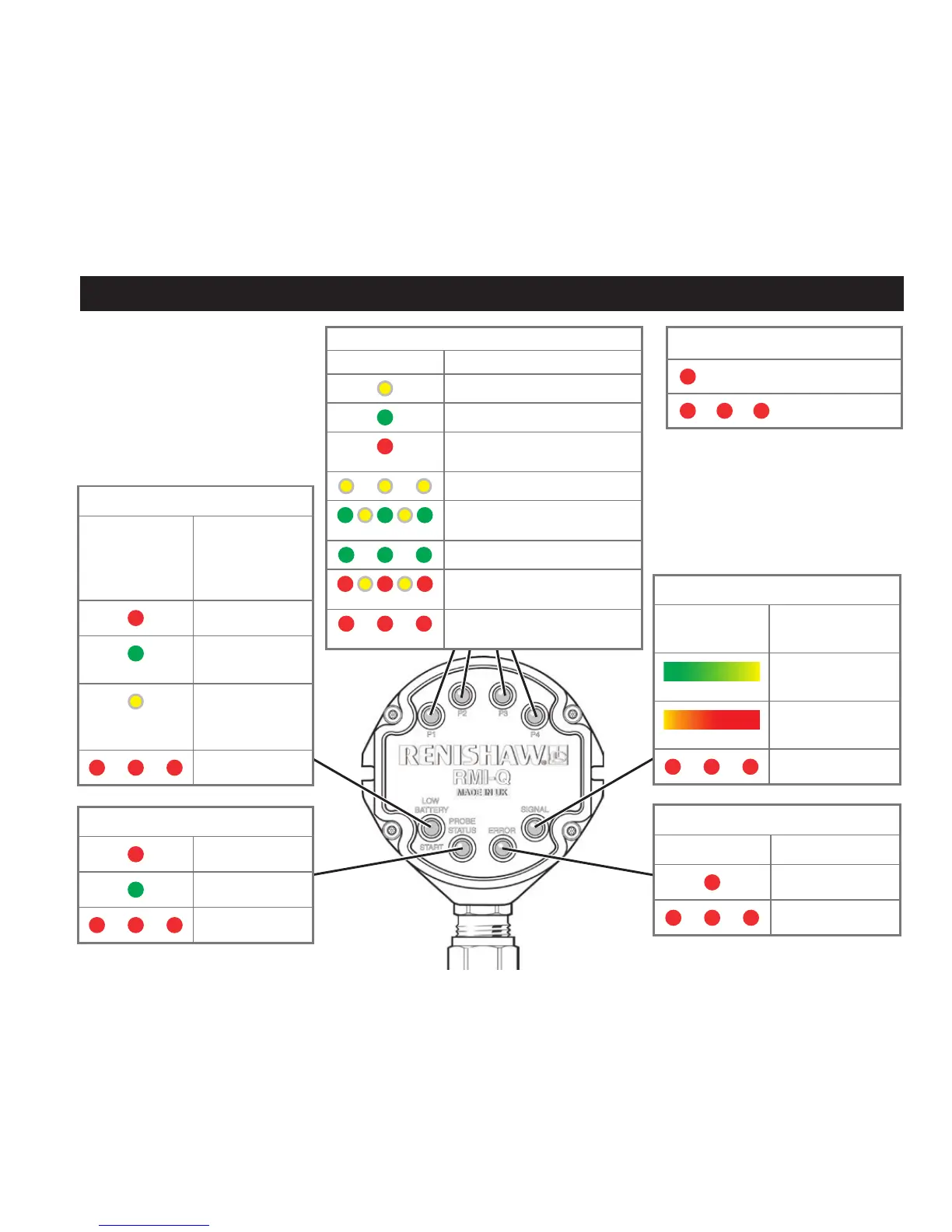

RMI-Q visual diagnostics
LOW BATTERY/START LED
Off
Battery is OK
and no M-code
start/stop in
progress
Battery low
M-code start/
stop in progress
Battery low and
M-code start/
stop in progress
Overload error
PROBE STATUS LED
Probe triggered
Probe seated
Overload error
SIGNAL LED
Off
No probes
operating
Good
communications
Poor
communications
Overload error
ERROR LED
Off
No error
Error
Overload error
P1, P2, P3, P4 SYSTEM STATUS LEDs
Off
Probe number empty
Probe number full, in standby
Probe number full, operating
Probe number full, 0.5 s
compatibility error
Selection error
Acquisition/clearing pending,
full
Acquisition pending, empty
Acquisition complete, probe
full
Clearing complete, probe
empty
Key to the symbols
Continuously on
Flashing
