The TONiC and DSi encoder system conforms to the relevant harmonised European standards
for electromagnetic compatibility, but must be correctly integrated to achieve EMC compliance.
In particular, attention to shielding arrangements is essential.
General specifi cations
Power supply 5 V ±10% 1 Amp maximum when terminated with 120 Ohms.
Renishaw encoder systems must be powered from a
5 V dc supply complying with the requirements for
SELV of standard EN (IEC) 60950.
Ripple 200 mVpp
maximum @ frequency up to 500 kHz
Sealing (readhead) IP40
(interface) IP20
(DSi) IP20
Acceleration (readhead) Operating 500 m/s
2
BS EN 60068-2-7:1993 (IEC 68-2-7:1983)
DSi unit only
Shock Non-operating 1000 m/s
2
, 6 ms, ½ sine BS EN 60068-2-27:1993
(IEC 68-2-27:1987)
Vibration Operating 50 m/s
2
, 55 Hz to 2000 Hz BS EN 60068-2-6:1996
(IEC 68-2-6:1995)
For system specifi cations refer to DSi mounting options
Mass Readhead 10 g
Interface 100 g
DSi 85 g
Cable 26 g/m
Readhead cable Double shielded, outside diameter 4.25 ±0.25 mm.
Flex life >20 x 10
6
cycles at 20 mm bend radius.
UL recognised component
Maximum cable length
Readhead to interface 10 m
Interface to DSi (remote version)
and DSi to controller
Output
frequency (MHz)
15 to 20
14
Maximum
cable length (m)
25
30
NOTE: When using extension cables customers should
ensure correct voltage at DSi unit and also correct
voltage at TONiC interface for remote versions.

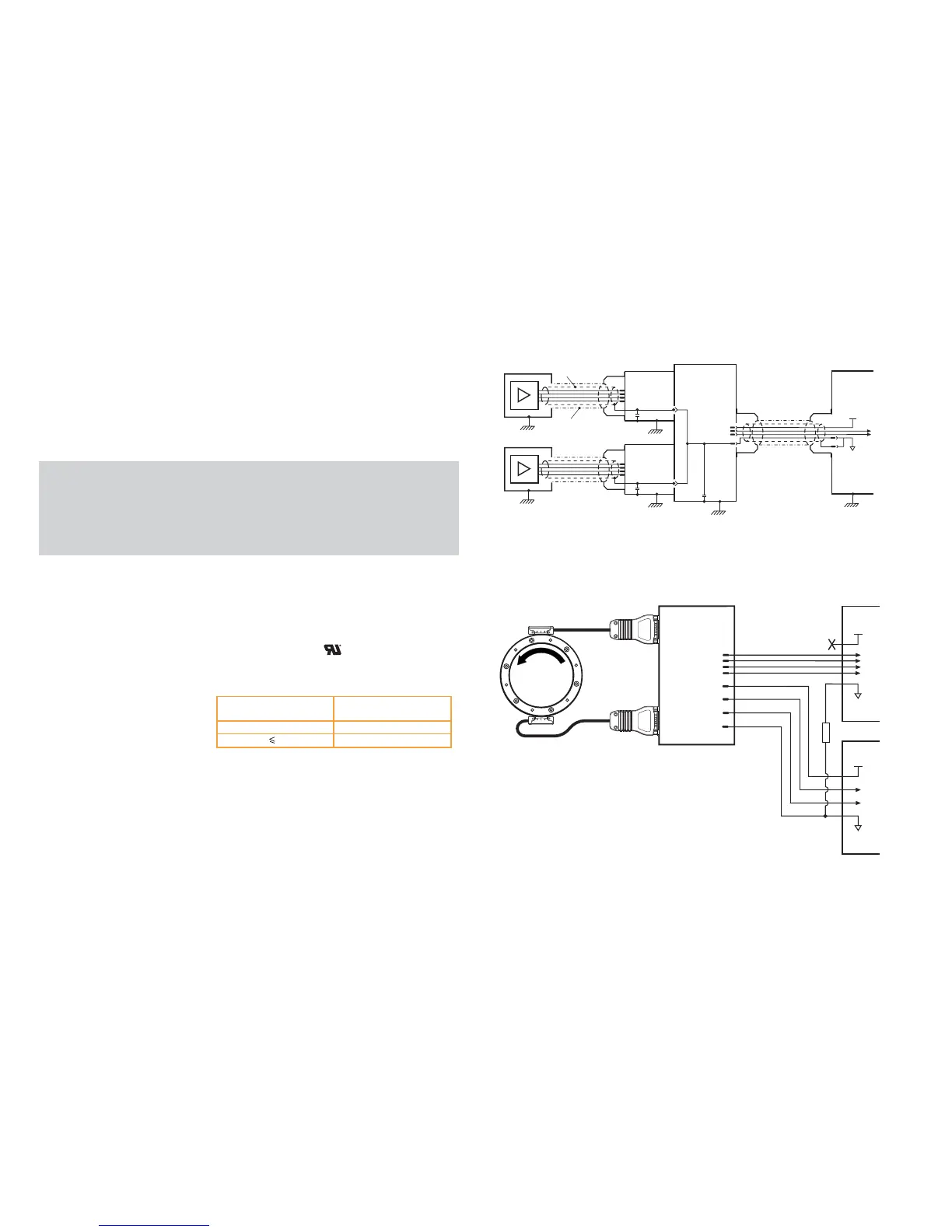

Electrical connections
Grounding and shielding
Output
signals
Readhead
Outer shield
Inner shield
Interface
Extension cable
max. 30 m
dependent upon
output frequency
Customer
electronics
5 V
0 V
DSi
Readhead
NOTE: Maximum cable lengths as detailed in the general specifications.
5 V
5 V
5 V
0 V
0 V
0 V
10 ⍀
Connecting power supply
DSi
Interface
Customer
electronics
External
power
supply
Output
signals
0 VS
5 VS
5 VS
0 VS
Readhead
Readhead
Interface
