3 TP200 installation procedure

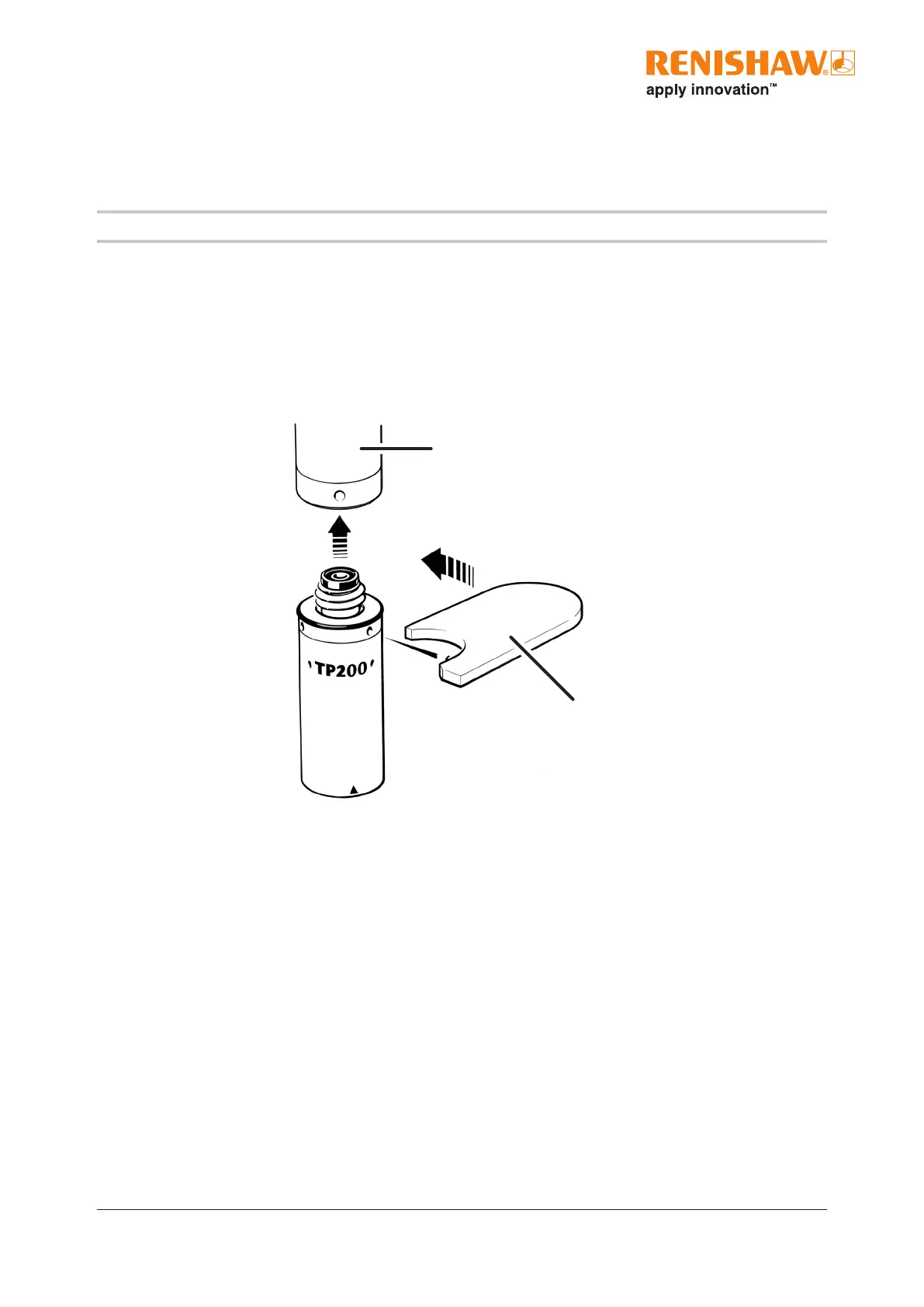

3.1 Mounting the probe body on the probe head with M8 connection
CAUTION: Take great care not to drop the probe when installing.
1. Mount the probe body on the probe head before tting the stylus module.
2. Screw the threaded end of the probe body into the M8 connector, on the probe head, until it is nger tight. Do not over tighten
with your ngers.
3. Fit the S1 ‘C’ spanner (supplied) to the location holes and tighten by hand.
4. The recommended tightening torque is 0.3 Nm to 0.5 Nm.
Probe head with M8 mount
S1 ‘C’ spanner
