TP200 product care guide

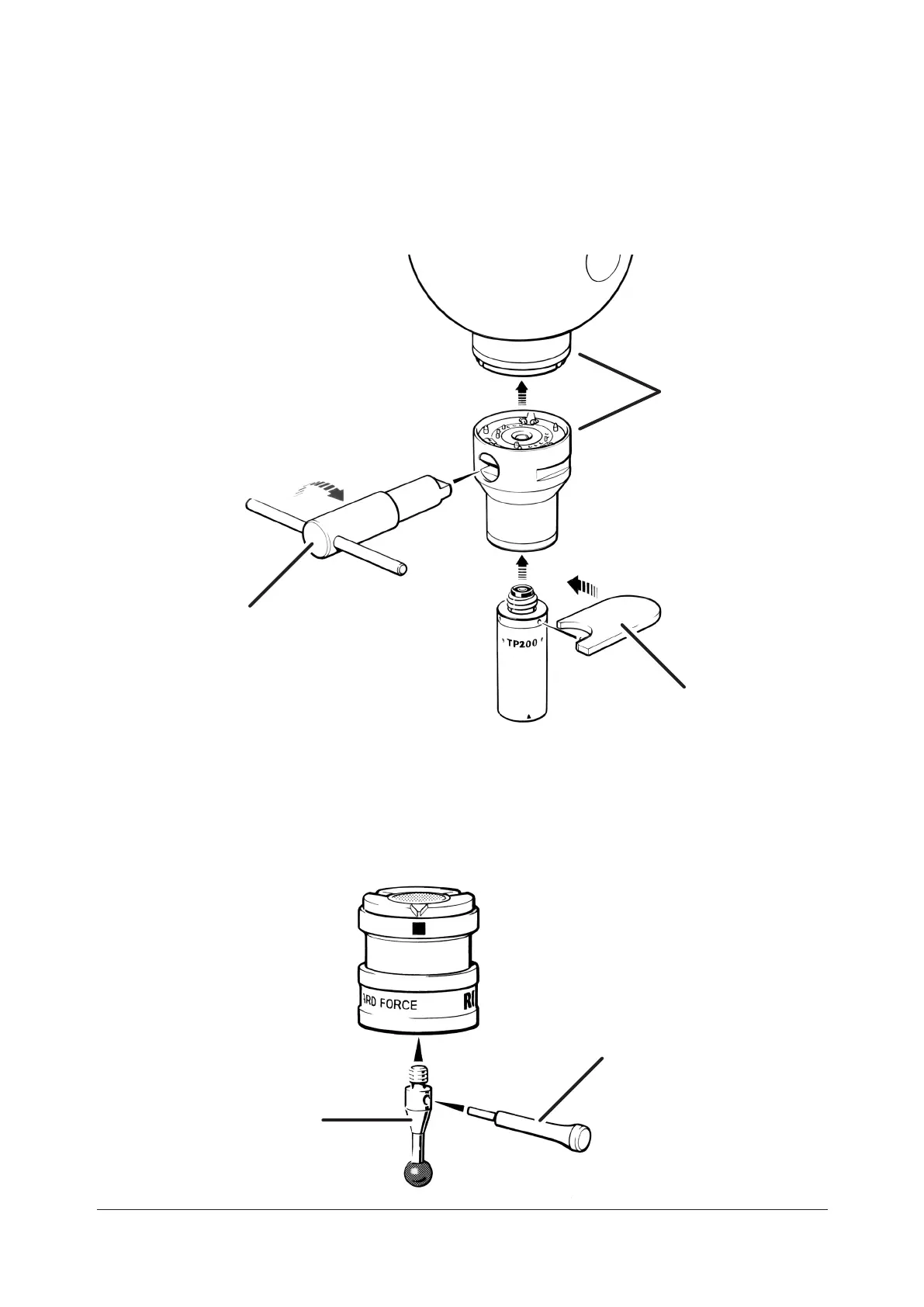

3.2 Mounting the probe body on the probe head with Renishaw
autojoint
1. Before tting to the probe head, screw the probe body to a PAA series adaptor, as instructed for M8 heads.
2. Locate the adaptor on the probe head and lock autojoint using S10 key.
S1 ‘C’ spanner
S10 autojoint key
Autojoint mount
3.3 Assembling a stylus on a stylus module
1. Styli should always be screwed on to the module with the module removed from the probe body. Failure to do this can cause
damage to the TP200 sensor.
S7 pin spanner
M2 stylus
