Renishaw TS27R Installation Guide

2-1
www.renishaw.com/ts27r

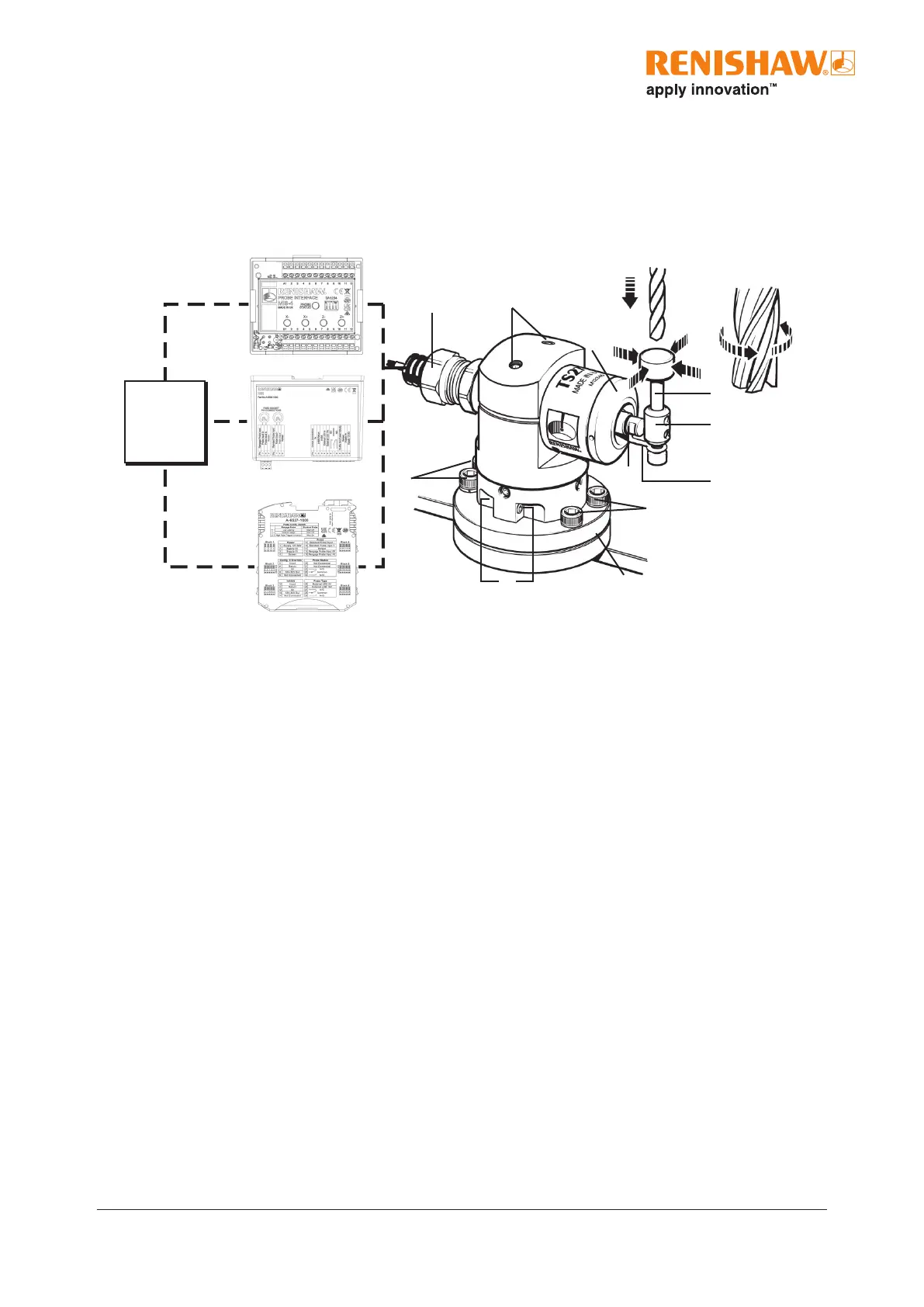

Product basics
TS27R probe system
Alternative interface units
Cable
TS27R probe
Diameter setting
Rotate tool in
reverse direction
Z
X/Y
Machine table
T slot
7
5
11
7
10
6
4
3
2
1
8
9
MI 8-4 interface
HSI interface
HSI-C interface
CNC
machine
controller
1. Stylus 7. Stylus level alignment – adjusting screws
2. Stylus holder for disc or square styli 8. Plinth
3. Captive link 9. Square stylus axes alignment – adjusting screws
4. Break stem 10. Square stylus axes alignment – locking screws
5. Front cover 11. Conduit adaptor
6. Probe base holding screws
Introduction
The TS27R probe is used for tool setting on CNC machining centres.
For tool length measurements and broken tool detection, the tool is driven against the probe’s stylus in the
Z axis. Rotating tools can be set in the X and Y axes for tool radius offsets.
Screw adjusters allow the stylus to be aligned with the machine’s axes.
An interface unit processes signals between the probe and the CNC controller.

Renishaw TS27R Specifications

General

Type	Tool setting probe
Hard-wired	Yes
Repeatability	1.0 µm (0.00004 in) 2σ
Stylus Tip Diameter	2 mm
Operating Voltage	5 V DC
Operating Temperature Range	5°C to 50°C
Storage Temperature Range	–10°C to 70°C
