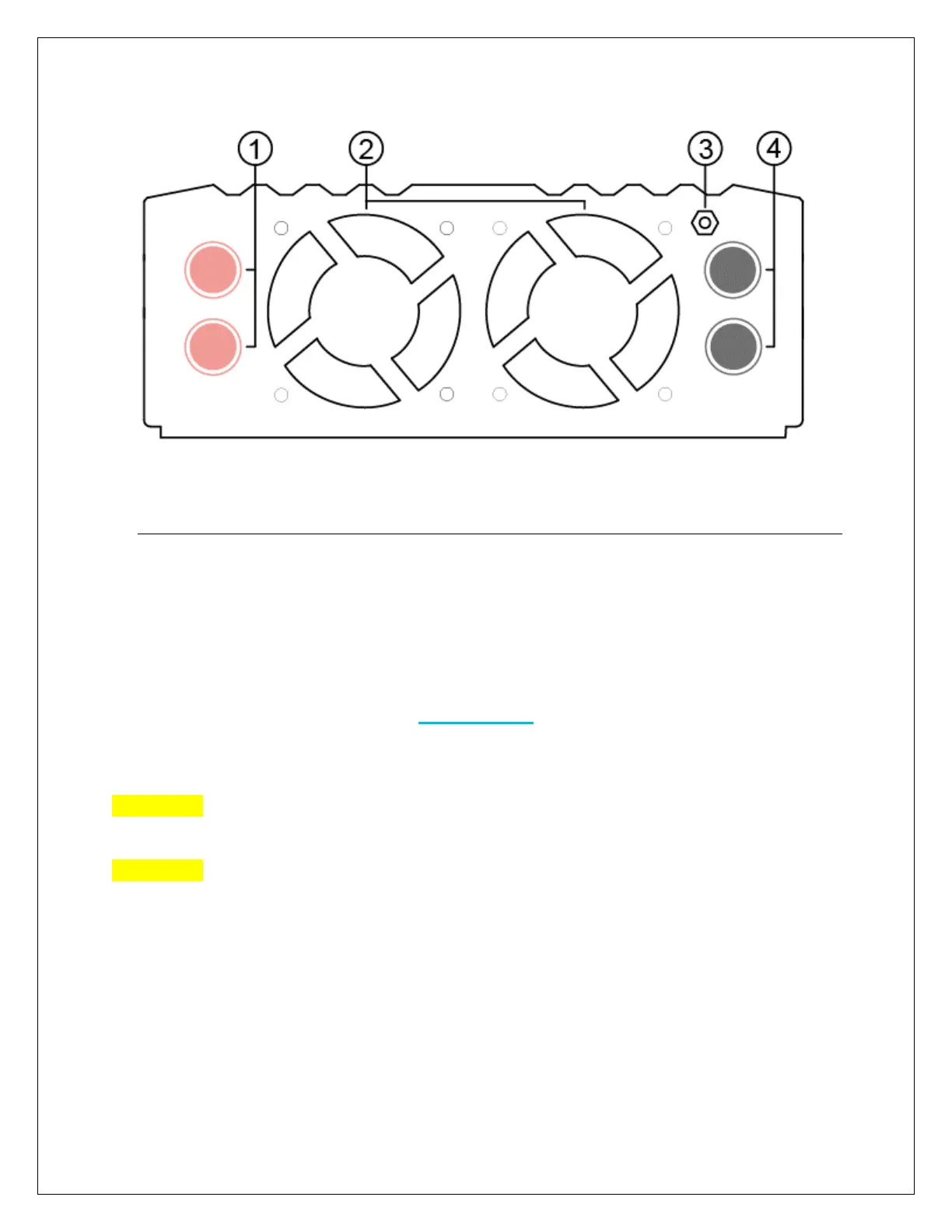

Figure 6: 2000W Inverter
Key Parts
1. Positive Terminal Connection(s)
2. Ventilation Fan(s)
3. Grounding Bolt
4. Negative Terminal Connection(s)
Installation
WARNING: Make sure inverter is in the off position before connecting anything.
CAUTION: Do not over-torque or over tighten the terminals. This could potentially
damage the unit
CAUTION: Refer to the technical specifications for max wire sizes on the
controller and for the maximum amperage going through wires.
Location Recommendations
WARNING: Never install the inverter in a sealed enclosure with flooded batteries.
Gas can accumulate and there is a risk of explosion.
