Renogy COMPACT-SUITCASE 220 User Manual

— 05 —
EN
Operation

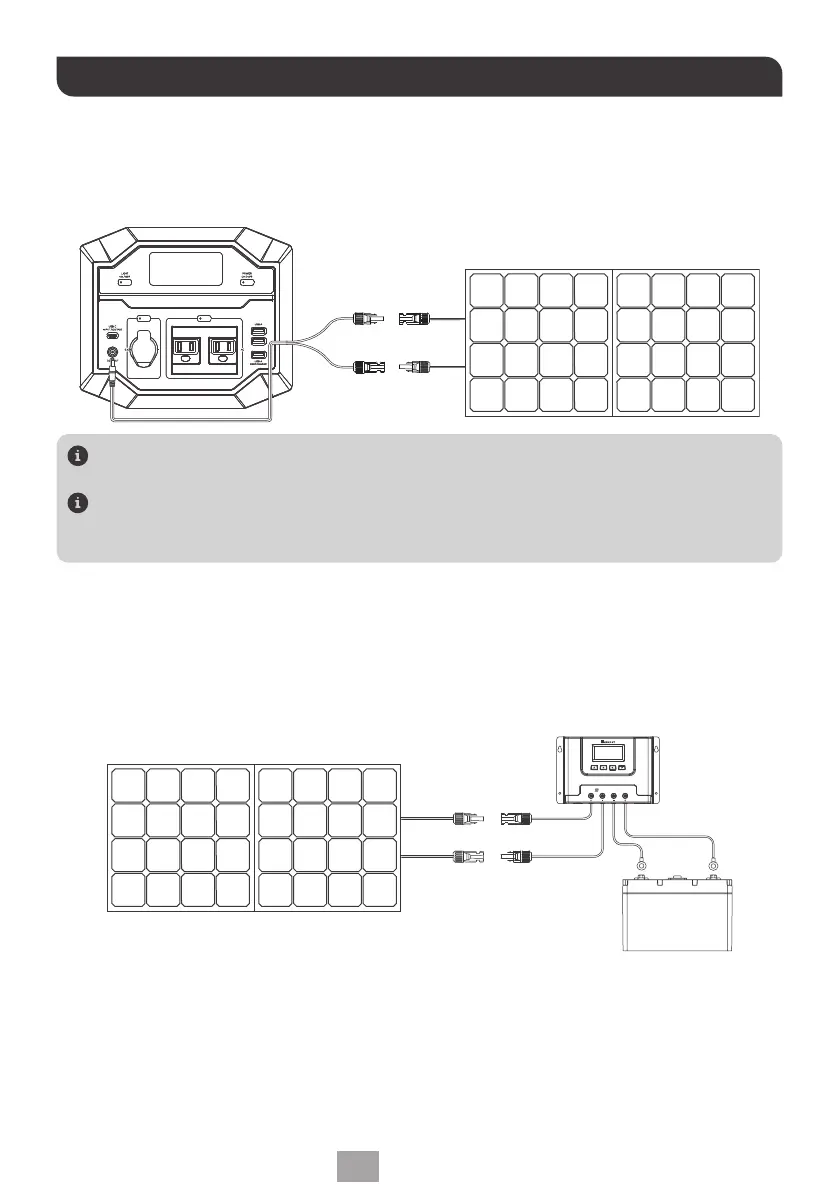

How to charge a power station
z
Place a solar panel under direct sunlight. Steer clear of objects that can shade the solar panel
and slow down the charging process.
z
Connect the solar connectors of the solar panel with the solar charge cable (sold seperatly),
then Connect DC input port of power station.
The solar charge time is highly dependent on the solar irradiance and the ambient
temperature.
The operating voltage of the solar panel shall exceed the minimum DC-input voltage of
power station, and the open circuit voltage shall NOT exceed the maximum DC-input
voltage of power station.
How to charge a battery
z
Connect COMPACT-SUITCASE connector to PV Terminals of charge controller (sold
seperately).
z
Connect the BATT Terminals of charge controller to battery terminals using tray cables (sold
seperately).
z
Set the charging paremeter on charge controller, and the COMPACT-SUITCASE is ready to
charge battery.

Renogy COMPACT-SUITCASE 220 Specifications

General

Brand	Renogy
Model	COMPACT-SUITCASE 220
Category	Solar panel
Language	English
