Description of MPPT20CC controller:!

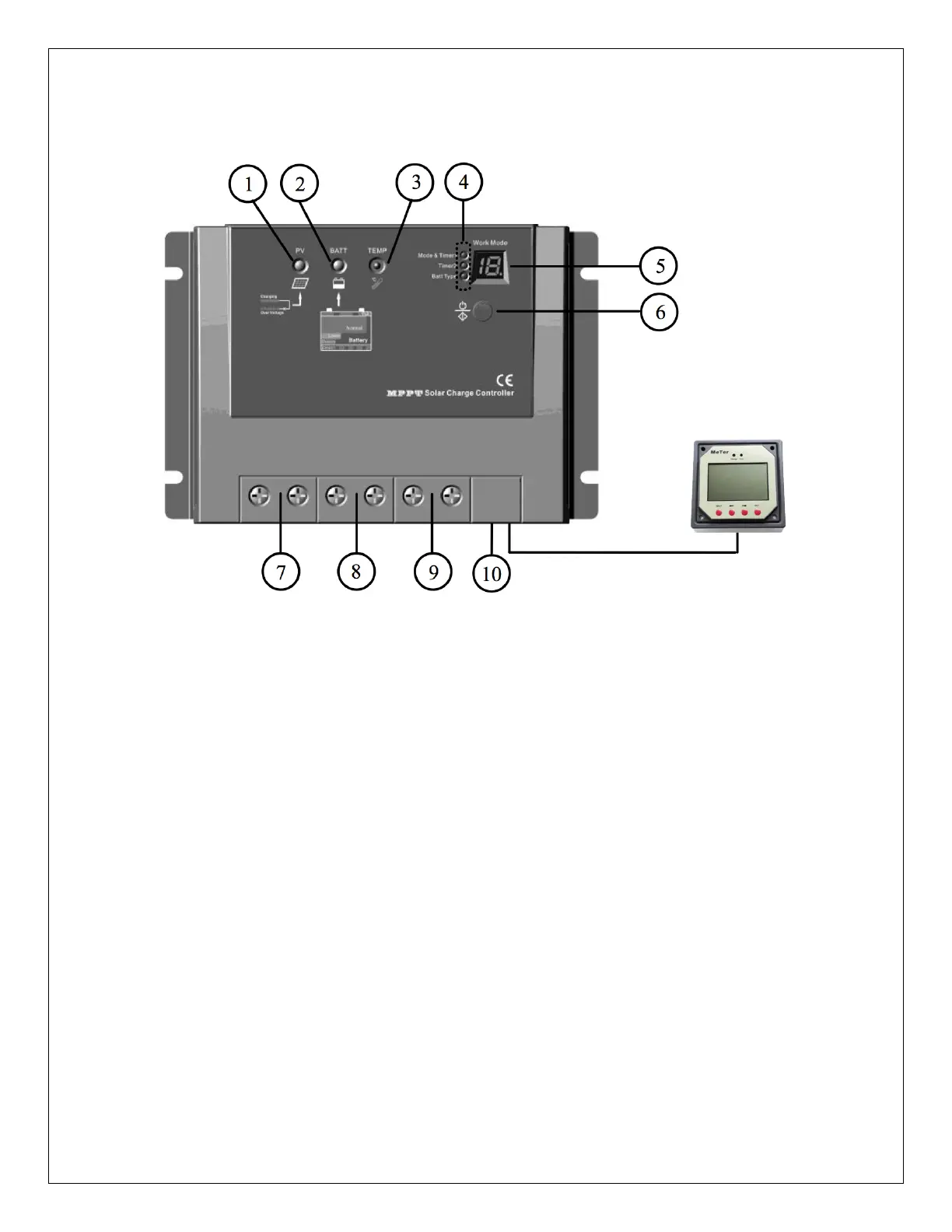

Figure 2-1 MPPT20CC Characteristics
1. Charging Status LED indicator
2. Battery Status LED indicator
3. Temperature Sensor
4. Setting Indicators
5. LED Digital Display the load work mode and status.
6. Setting Button (in manual mode used for load ON/OFF)
7. Solar Module Terminals
8. Battery Terminals
9. Load Terminals
10. RJ45 Communication Interface (for remote meter MT-5)
