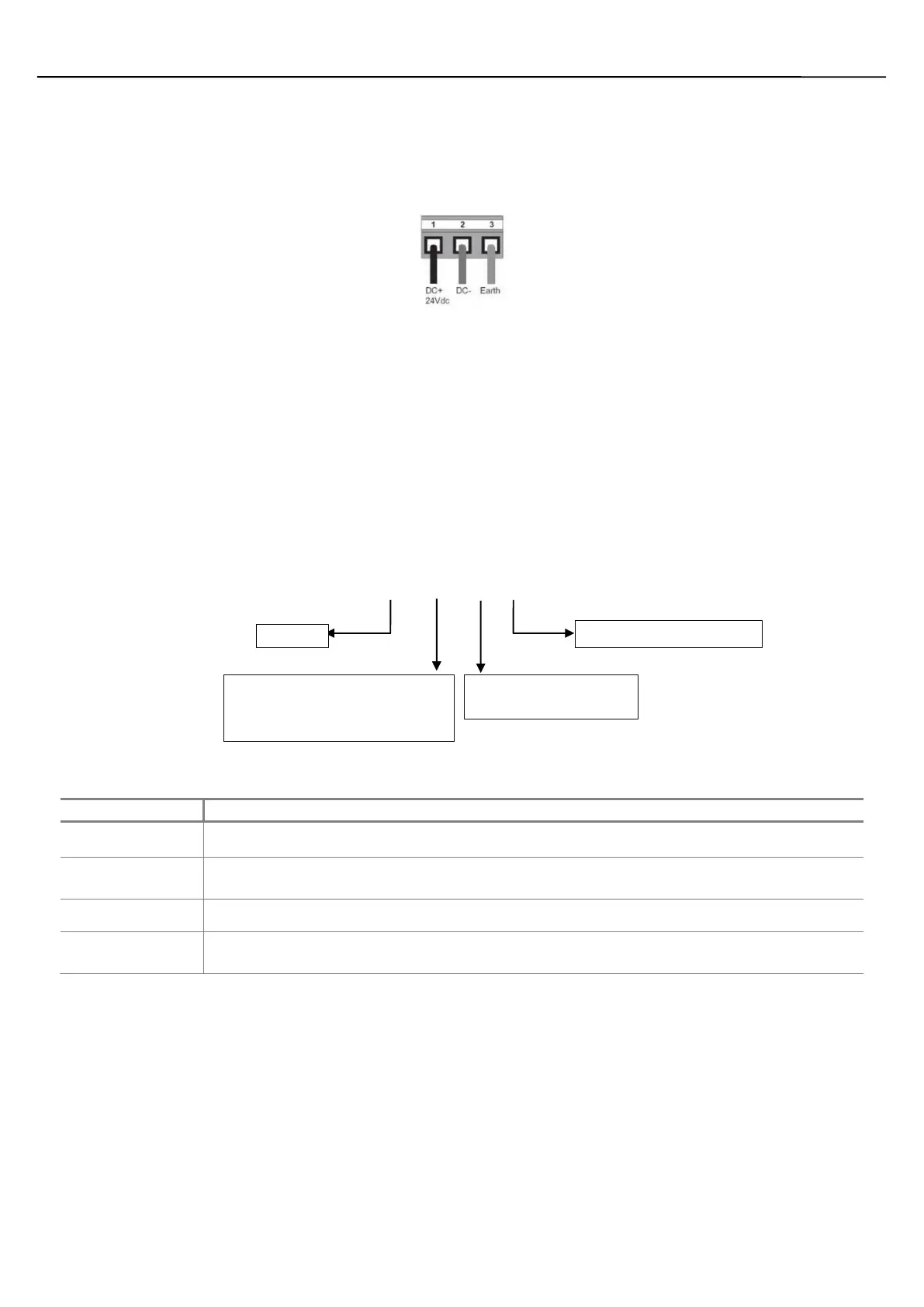

Grounding
The optimum method for grounding electronic equipment is to ground it separately from other high-power
systems and to ground more than one unit of electronic equipment with a single-point ground. Following
marked terminal is provided with the unit for grounding:
Product Specifications
This section of the manual provides detailed specifications of FP2 series HMI with I/Os products, ordering
part numbers, operating conditions, environment, and approvals.
Product Nomenclature / Ordering Part Number
FP2 series HMI with I/Os has 2 models, depending on display size and each model has two variants,
based on Ethernet. Detail part number or ordering information is as follows:
Model
Description
FP2043T-E
2 Serial ports
#
(1 RS232, 1 RS485), 1 USB Device, 1 USB Host, 1 Pluggable I/O Module
FP2043TN-E
2 Serial ports
#
(1 RS232, 1 RS485), 1 USB Device, 1 USB Host, 1 Ethernet, 1 Pluggable
I/O Module
FP2070T-E
2 Serial ports (RS232 / RS485), 1 USB Device, 1 USB Host, 3 Pluggable I/O Modules
FP2070TN-E
2 Serial ports (RS232 / RS485), 1 USB Device, 1 USB Host, 1 Ethernet, 3 Pluggable I/O
Modules
[ # Note: FP2043-E support one DB9 port that supports RS232 and RS485 levels on different pins. “Y” type cable
can be used for separate RS232 and RS485 levels simultaneously.]
T: Touch Screen
FP2 XXX Tx- E
Series
Display Size
043: 4.3” WQVGA (480 x 272)
070: 7” WVGA (800 x 480)
Series
T: Touchscreen
N: Supports Ethernet
E: Supports Expansion
