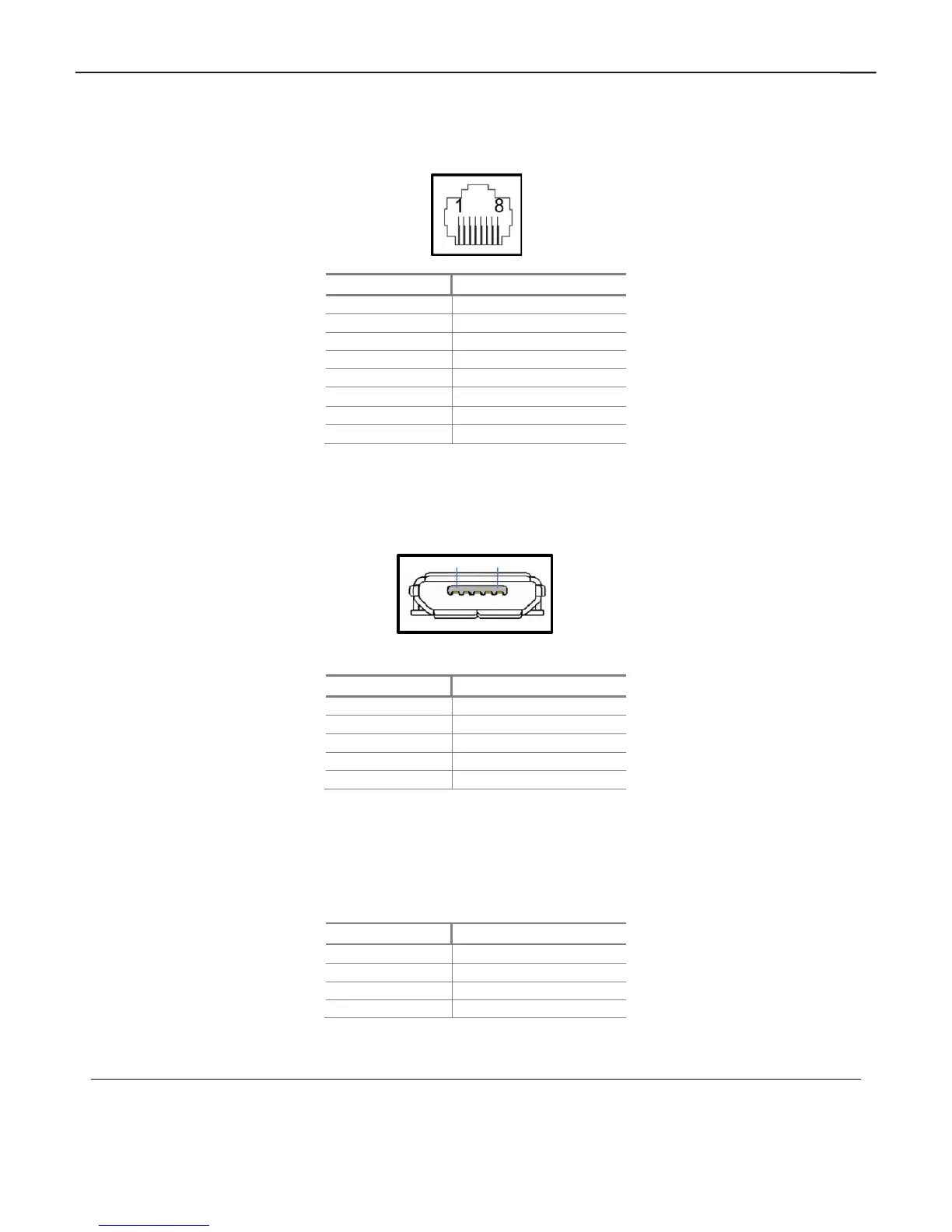

Ethernet Port
FP2 series support Ethernet port as an ordering option. It’s having standard shielded RJ45 female jack with
built-in speed and indication LED’S.
Pin number
Signal
1
TX+
2
TX-
3
RX+
4
NC
5
NC
6
RX-
7
NC
8
NC
USB Device Port
FP4 products support one Micro USB port for programming and monitoring.
Pin number
Signal
1
VCC
2
D-
3
D+
4
NC
5
GND
USB Host Port
FP4 products support one USB Host port that connects to USB 2.0 compatible pen drives. The pen drive
can be used as external memory for data logging and transferring user application or firmware to the unit.
Pin number
Signal
1
VCC
2
D-
3
D+
4
GND
