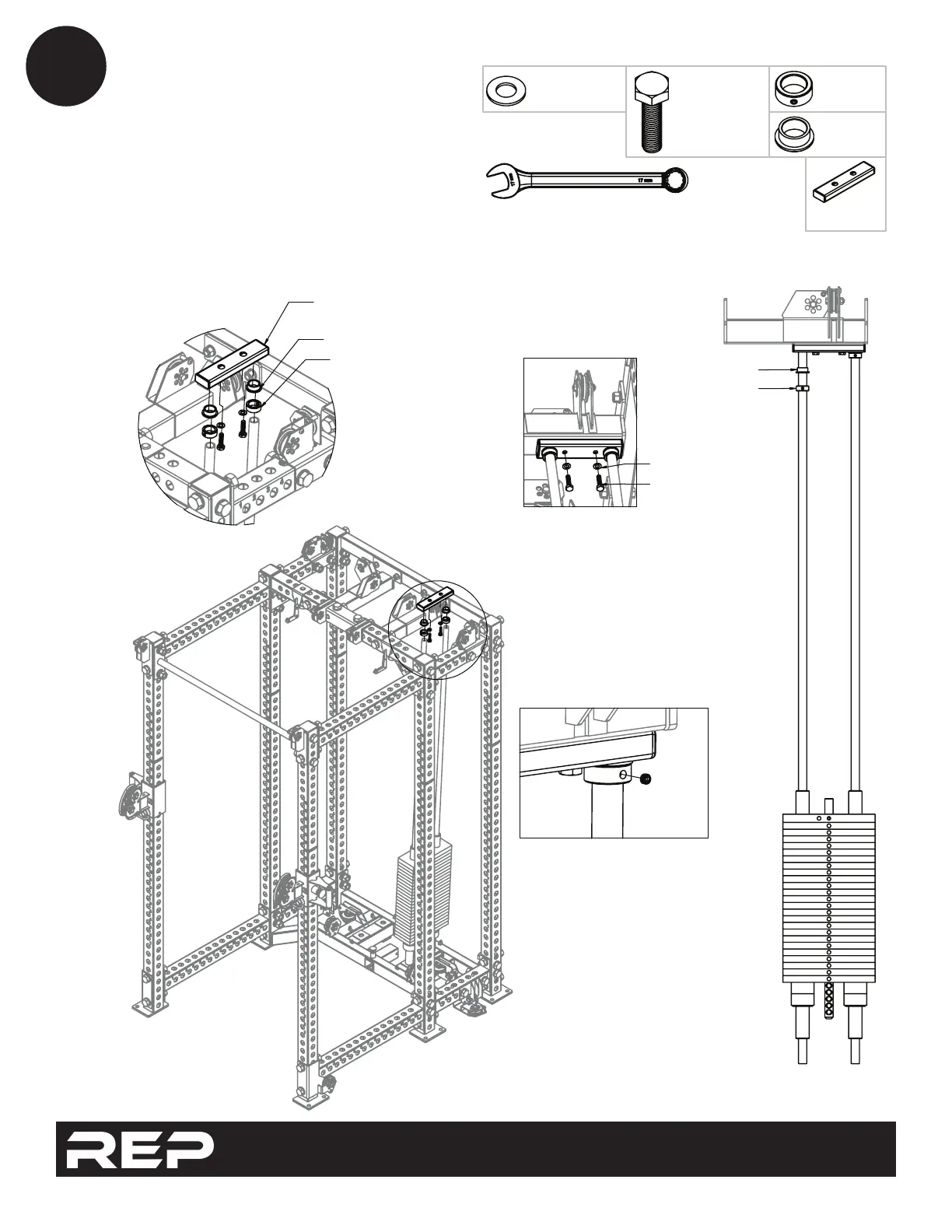

1. LEAN GUIDE RODS SLIGHTLY OUTWARD TO
INSTALL THE COLLAR, DAMPER, AND RETAINER.
2. INSERT AND INSTALL WASHERS AND BOLTS.
PUSH THE GUIDE ROD DOWN. SLIDE
THE DAMPER UP (10-0527) UP INTO
THE RETAINER (25-0973) AND SLIDE
THE COLLAR (10-0294) UP AGAINST
THE DAMPER. TIGHTEN THE SET
SCREW ON THE COLLAR.
2X NOT INCLUDED
17MM
25-0973
10-0527
10-0294
VIEW OF BOLTS
10-0156
10-0078
10-0156
M10X1.50, L40,
SILVER
X2
M10, WASHER,
10-0078
X2
SILVER
X1
25-0973
10-0294
X2
10-0527
X2
10-0527
10-0294
