REP ARES - 19 C Lower Cable Routing



19C
LOWER
CABLE
B
C
D
E
F
G
H
I
A

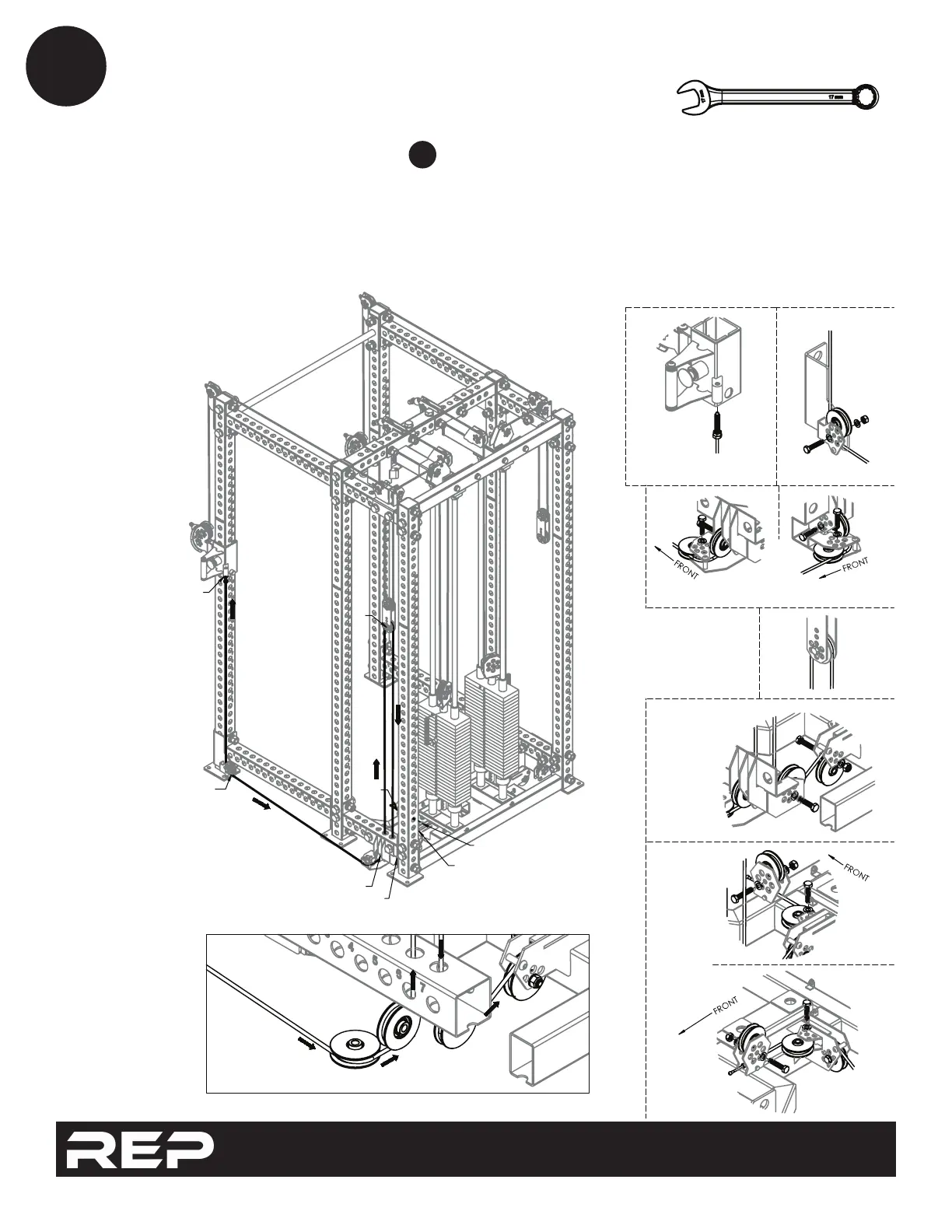

-THREAD THE ADJUSTER BOLT INTO THE TROLLEY MINIMUM 7 FULL
TURNS.
-USING THE CLEARED END FROM , THREAD THE CABLE
THROUGH THE BRACKETS STARTING AT PULLEY 1 (VIEW B).
-REMOVE HARDWARE AND PULLEYS AS NECESSARY. LOOSEN
CABLE RETAINERS IF PULLEY DOES NOT SEEM TO FIT, BUT DO NOT
REMOVE THEM. 5MM AND 6MM ALLEN WRENCH IS REQUIRED
19B
2X NOT INCLUDED
17MM
B
C, D
E
F, G
H, I
A
PULLEYS C, D, AND F SHOWN WITH BRACKET HIDDEN
D
G
F
C
THREAD THE ADJUSTER BOLT INTO
THE TROLLEYMINIMUM 7 FULL TURNS
THREAD CABLE THROUGH BRACKETS,
THEN REINSTALL VERTICAL PULLEY FIRST
