1. HYDRAULIC CONNECTION
The hydraulic connection must be made with fittings and piping sized to suit the connections of the water softener
to ensure sucient flow to itself and to the machine it is connected to.

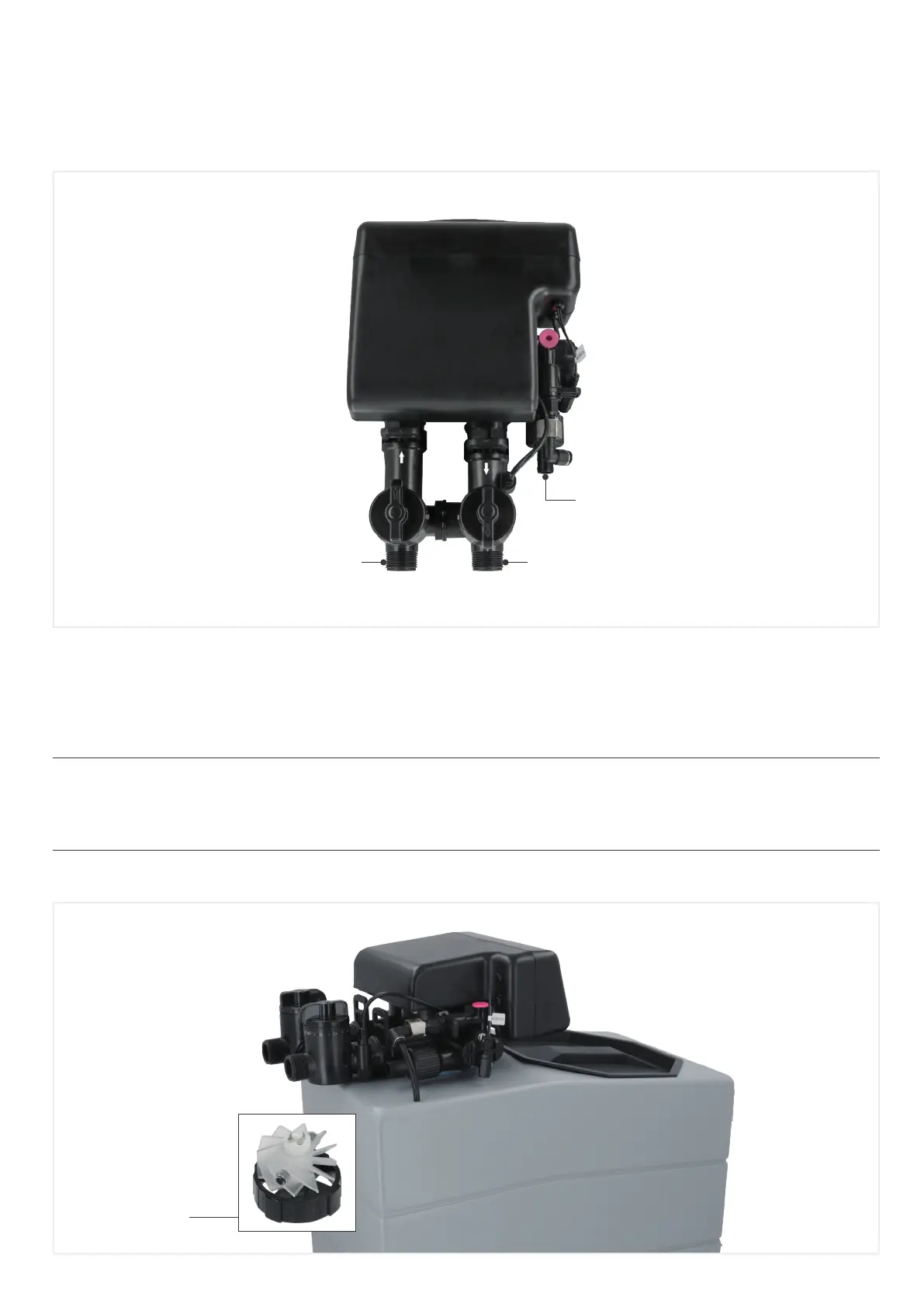

PICTURE 1
WATER INLET (IN) WATER OUTLET (OUT)
DRAIN
A
Both valve models (CRONO and VOLUME) are equipped with a by-pass.
In the VOLUME version, the by-pass is equipped with a fan (A) to detect the volume of water.
Hydraulic connection
WARNING
Pay attention when disassembling the by-pass so that the fan does not come out of its housing.
