RESERVE V2 - Displaying Motorcycle Information

The V2 headunit can display up to 10 digital
gauges, offering a selection from over 50
available options. You can receive pop-up
warnings for oil pressure, fuel level, engine
temperature, and more. The programming of
handlebar thumb controls is customizable. V2
activates Boom 1, Boom 2, and HD Audio OEM
amplifiers. The wire harness is prepared for
iDataLink® Maestro® RR® and RR2® integration.
Compatible w/ iDataLink® Maestro® RR
CANBUS Integration Module
CAUTION
This function is intended solely to assist the
rider know the Motorcycle status. It does not
detect all warnings .
NOTE:
This function is only available for motorcycles
equipped with an
iDataLink Maestro box.
1.
Fuel low (fuel level warning: 15%)
2.
OIL pressure low ( less than 10psi)
3.
Engine Temperature high
【 Higher than 280°F degree (138° C)】
4.
TPMS low [Front: 32psi (223KPA)
Rear: 36psi (248KPA) 】
5.
Battery level warning: (Less than 12v)
Once Dismiss, the top icon will ush, untill
the problem solve.
Displaying detection Motorcycle information
Displaying detection Motorcycle information list:
Motorcycle Info:

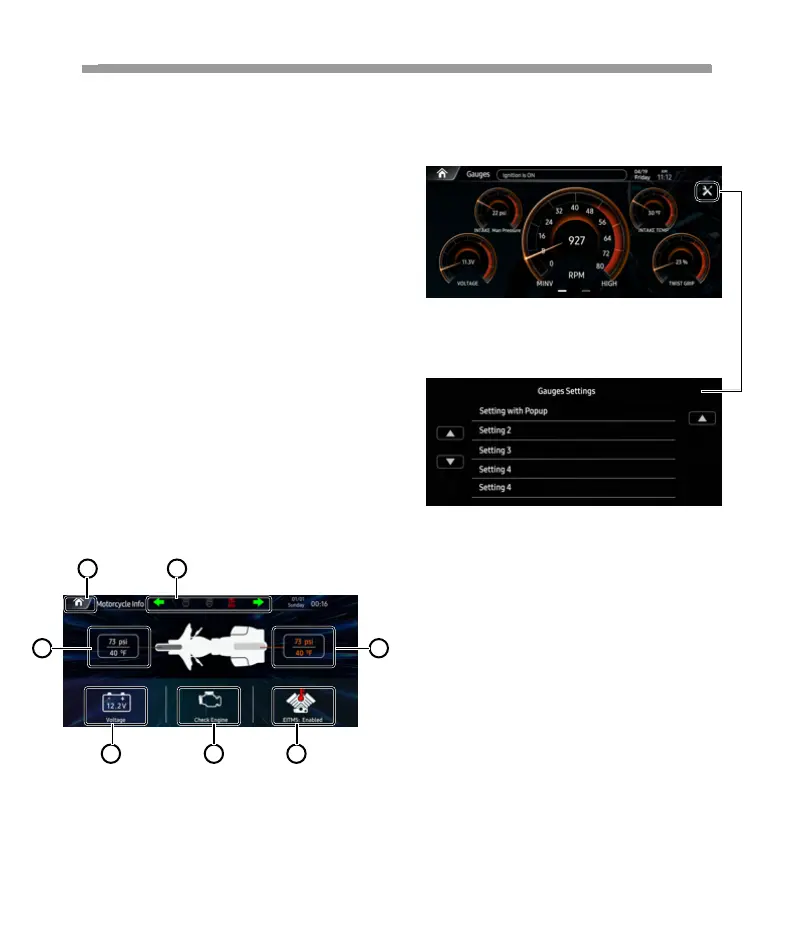

Tap the Motorcycle Info on the main menu, will
display below:
Gauges:
Tap the Gauges icon on the main menu, will
display below:
iDataLink Maestro
Note: You can definite the Guage function as
your required.
1
3 3
2
4 5 6
1. Tap to back to home page.
2. 5 signal icons: Turn Left / Lowbean / Highbean
/Brake / Turn Right .
3. Show TPMS information.
4. Show the Voltage information.
5. Show the Motorcycle Engine status.
6. Show the EITMS status.
