Resol DeltaSol BX+ V2 User Manual

DeltaSol
®
BX+ V2
20140710 Kioto_deltasol_bx+_V2_Zusatzheft.mon5s.indd
| 10
S1
S3 S5
S7
R4
(V1)
R3
(P2)
R2
(P3)
R1
(P1)
S2
S4
S1
S3 S5
S7
S4
R4
(V1)
R3
(P2)
R2
(P3)
R1
(P1)
S2
Store 1
S3
S1
S5
S7
(V1)
(
P2
)(
P1
)
R4
R3R1
S2
Store 1
HW
boiler
Store 1
S1 S6
S3 S5
S7
R4
(V1)
R3
(P3)
R2
(P2)
R1
(P1)
S2
Store 1
Swimming
pool

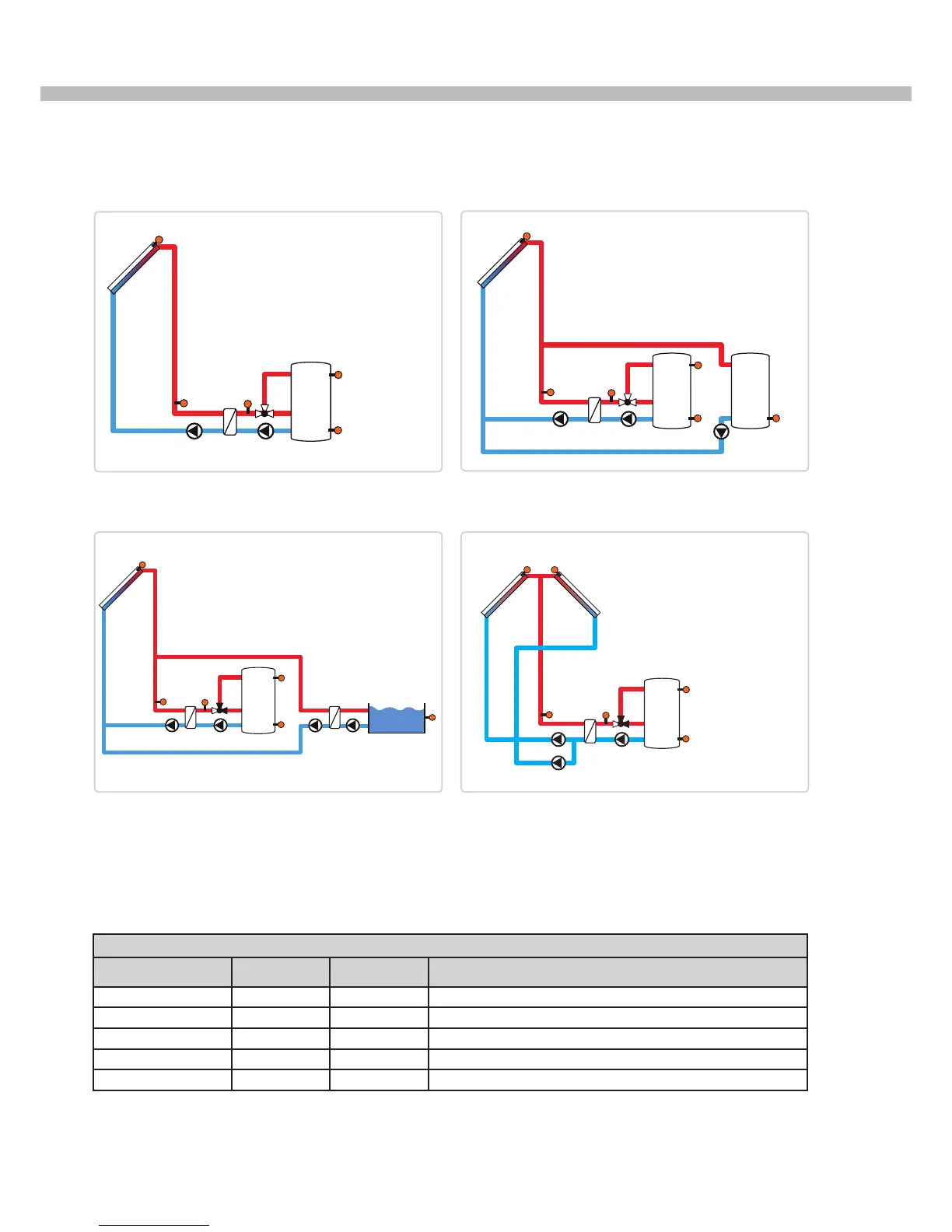

Scheme overview
Commissioning menu
Designation Note
Language Deutsch
Scheme xxx Enter the scheme number here
Auto DST Yes Automatic daylight savings time adjustment will be activated
Time Adjust the current clock time
Date Adjust the current date
Make the following adjustments in the commissioning menu.
001 / 011
003 / 013
002 / 012
004 / 014
002 Scheme for using standard pumps
012 Scheme for using high-efficiency pumps
001 Scheme for using standard pumps
011 Scheme for using high-efficiency pumps
004 Scheme for using standard pumps
014 Scheme for using high-efficiency pumps
003 Scheme for using standard pumps
013 Scheme for using high-efficiency pumps

Resol DeltaSol BX+ V2 Specifications

General

Brand	Resol
Model	DeltaSol BX+ V2
Category	Controller
Language	English
